CARBURETOR - 4 Strok For F2.6BM
- Brand: Yamaha
- Product Code: CARBURETOR - 4 Strok For F2.6BM
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

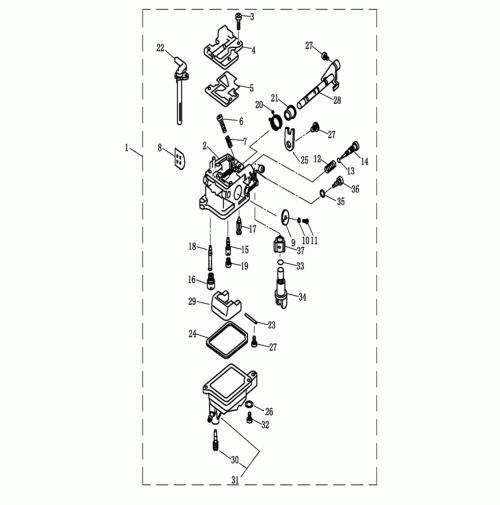

CARBURETOR - 4 Strok For F2.6BM
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F2.6-04000200 | CARBURETOR ASSY | 69M-14301-00 |
| 2 | F2.6-04000201 | BODY, CARBURETOR | |
| 3 | GB/T818-M4X10 | SCREW M4x10 | |
| 4 | F2.6-04000202 | PLATE | |
| 5 | F2.6-04000203 | GASKET | |
| 6 | F2.6-04000204 | STOP SCREW, THROTTLE | |
| 7 | F2.6-04000205 | SPRING, STOP SCREW | |
| 8 | F2.6-04000206 | BAFFLE PLATE, CHOKE | |
| 9 | F2.6-04000207 | DAMPER, THROTTLE |
| 10 | GB/T93-3 | WASHER, SPRING 3 | |
| 11 | GB/T818-M3X5 | SCREW M3x5 | |
| 12 | F2.6-04000223 | SPRING, AIR ADJUSTING | |
| 13 | F2.6-04000208 | O-RING, AIR ADJUSING | |
| 14 | F2.6-04000209 | SCREW, AIR ADJUSTING | |
| 15 | F2.6-04000210 | JET, AIR SLOW | |
| 16 | F2.6-04000211 | JET, MAIN | |
| 17 | F2.6-04000212 | NEEDLE VALVE | |
| 18 | F2.6-04000213 | MAIN NOZZLE | |
| 19 | F2.6-04000214 | RUBBER CAP |
| 20 | F2.6-04000215 | WRING SPRING | |
| 21 | F2.6-04000216 | BUSH, SWING LINK | |
| 22 | F2.6-04000217 | SWING LINK, CHOKE | |
| 23 | F2.6-04000218 | PIN, FLOAT | |
| 24 | F2.6-04000219 | GASKET, FLOAT CHAMBER | |
| 25 | F2.6-04000220 | PLATE, SWING LINK | |
| 26 | GB/T93-4 | WASHER,SPRING 4 | |
| 27 | GB/T818-M4X8 | SCREW M4x8 | 68580-04008 |
| 28 | F2.6-04000221 | SWING LINK ASSY, THROTTLE | |
| 29 | F2.6-04000222 | FLOAT |
| 30 | F2.6-04000224 | SCREW, DRAIN | |
| 31 | F2.6-04000225 | FLOAT CHAMBER | |
| 32 | GB/T818-M4X12 | SCREW M4x12 | |
| 33 | F2.6-04000226 | O-RING | |
| 34 | F2.6-04000227 | KNOB, FUEL COCK | |
| 35 | GB/T97.1-4 | WASHER 4 | |
| 36 | F2.6-04000228 | SCREW | |
| 37 | F2.6-04000229 | SEAL, RUBBER |
