CARBURETOR - 4 Strok For F8F9.8
- Brand: Yamaha
- Product Code: CARBURETOR - 4 Strok For F8F9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

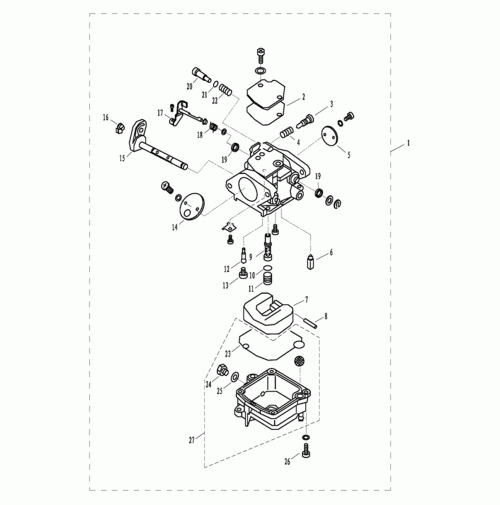

CARBURETOR - 4 Strok For F8F9.8
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F8-05040000 | CARBURETOR ASSY | |
| 2 | F8-05040002 | GASKET | |
| 3 | F8-05040009 | STOP SCREW, THROTTLE | |
| 4 | F8-05040010 | SPRING, STOP SCREW | |
| 5 | F8-05040008 | DAMPER, THROTTLE | |
| 6 | F8-05040019 | NEEDLE VALVE | |
| 7 | F8-05040020 | FLOAT | |
| 8 | F8-05040021 | PIN, FLOAT | |
| 9 | F8-05040022 | PIN, FLOAT |
| 10 | F8-05040024 | SEAL, MAIN JET | |
| 11 | F8-05040023 | JET, MAIN | |
| 12 | F8-05040025 | JET, AIR SLOW | |
| 13 | F8-05040026 | SCREW, JET | |
| 14 | F8-05040012 | BAFFLE PLATE, CHOKE | |
| 15 | F8-05040200 | ROCKER ASSY, SWING LINK | |
| 16 | T6-05000022 | JOINT, THROTTLE LINK ROD | |
| 17 | F8-05040100 | SWING LINK ASSY, THROTTLE | |
| 18 | F8-05040005 | SPRING, SWING LINK | |
| 19 | F8-05040007 | SEAL, RUBBER |
| 20 | F8-05040013 | SCREW, AIR ADJUSTING | |
| 21 | F8-05040014 | O-RING | |
| 22 | F8-05040015 | SPRING, AIR ADJUSTING | |
| 23 | F8-05040027 | GASKET, FLOATCHAMBER | |
| 24 | F8-05040403 | SCREW, DRAIN | |
| 25 | F8-05040401 | GASKET | |
| 26 | GB/T818-M4X12 | SCREW M4x12 | |
| 27 | F8-05040400 | FLOAT CHAMBER ASSY |
