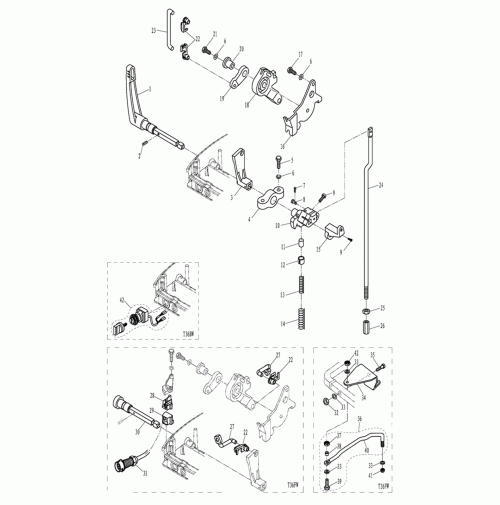

CONTROL SYSTEM - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T36-05010100 | SHIFT HANDLE ASSY | 6F5-44111-00
|
| 2 | GB/T879.1-2.5x14 | PIN 2.5x14 | 0.00
|
| 3 | T36-05010002 | ROCKER B, DETENT | 6F5-44125-00
|
| 4 | F15-05040002 | BRACKET, SHIFT ROD | 6F5-41662-00
|
| 5 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00
|
| 6 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 7 | GB/T91-1.6x10 | COTTER PIN 1.6x10 | 0.00
|
| 8 | T36-05000014 | PIN, LINKER | 90240-05M09
|
| 9 | GB/T845-ST3.9x20 | SCREW ST3.9x20 | 0.00
|
| 10 | T36-05010200
| CAM PLATE, SHIFT
| 6F5-44121-00
|
| 11 | T20-03000006
| PLUNGER, SHIFT CAM
| 0.00
|
| 12 | T36-05000010
| BUSH, PLUNGER
| 6F5-42715-00
|
| 13 | T36-05000012
| SPRING B, PLUNGER
| 90501-07M33
|
| 14 | T36-05000011
| SPRING A, PLUNGER
| 90501-12M36
|
| 15 | T36-05010001
| ROCKER A, DETENT
| 6F5-44173-00
|
| 16 | T36-04000201
| PLATE, THROTTLE ACTUATOR
| 6F5-11497-00
|
| 17 | GB/T5783-M6x16
| BOLT M6x16
| 0.00
|
| 18 | T36-04000202
| DRIVE PULLEY, THROTTLE
| 6F5-41638-00
|
| 19 | T36-04000203
| PULLEY, THROTTLE ACTUATOR
| 6F5-41283-00
|
| 20 | T36-04000204
| BUSH, THROTTLE ACTUATOR
| 90387-06M29
|
| 21 | GB/T9074.14-M6X30
| BOLT M6x30
| 0.00
|
| 22 | T36-04000205
| JOINT, THROTTLE LINK ROD
| 6E9-41237-00
|
| 23 | T36-04000206
| LINK ROD, THROTTLE
| 6F5-41211-00
|
| 24 | T36-05000013
| SHIFT ROD
| 676-44143-00
|
| 25 | T36-05000035
| NUT, PLUNGER
| 90170-07021
|
| 26 | GB/T6170-M7
| NUT M7
| 0.00
|
| 27 | T36-04000028W
| JOINT, SHIFTING CABLE
| 0.00
|
| 28 | T36-05000040W
| CLAMP, CABLE
| 6F5-48538-00
|
| 29 | T36-05000005W
| JAM B, RUBBER
| 0.00
|
| 30 | T36-05010100W
| SHIFT ROD ASSY
| 0.00
|
| 31 | F15-07150400W
| IGNITION WIRE ASSY, 7 PIN
| 0.00
|
| 32 | GB/T889.1-M10x1.25
| LOCK NUT M10
| 0.00
|
| 33 | GB/T97.1-10
| WASHER 10
| 90201-10120
|
| 34 | T20-04000902W
| LINK PLATE, STEERING
| 0.00
|
| 35 | T40-00000008
| BOLT M10x1.25x40
| 97075-10045
|
| 36 | T20-04000900W
| STEERING LINK ROD ASSY
| 0.00
|
| 37 | F25-07000304W
| NUT 3/8 1
| 90170-09M03
|
| 38 | F25-07000303W
| BUSH, BOLT
| 90387-10M42
|
| 39 | F15-11020002W
| BOLT, STEERING LINK
| 0.00
|
| 40 | T20-04000901W
| LINK ROD, STEERING
| 0.00
|
| 41 | F25-07000006W
| LOCK NUT 3/8
| 90185-09M01
|
| 42 | T40-03000200BW
| START SWITCH ASSY
| | 0.00
|
