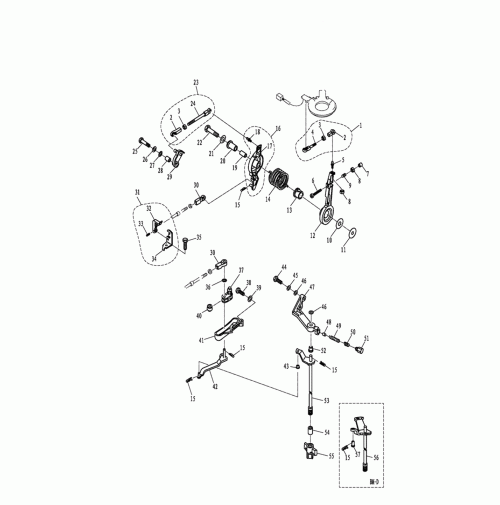

CONTROL SYSTEM - 2 Strock for T75T85T90
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
1
| T85-05050300 | LINK ASSY, STATOR COIL BASE | 0.00
|
| 2 | T15-04040005 | TIE-IN, PULSER COIL | 682-41237-00
|
3
| GB/T6170-M5 | NUT M5 | 95380-05600
|
4
| T85-05050301 | LINK, STATOR COIL BASE | 682-41237-50
|
5
| T20-06040007 | JOINT, CONNECTING ROD | 663-85518-00
|
6
| GB/T818-M6x45 | SCREW M6x45 | 90157-06013
|
7
| T15-04030103 | COVER, NUT | 688-44194-00
|
8
| GB/T6170-M6
| NUT M6 | 95303-06600
|
9
| T85-05050202 | SPRING | 90501-16M12
|
| 10 | T85-05000031 | WASHER, THRUST | 90201-08M13
|
| 11 | T85-05050001 | BIG WASHER 8 | 90202-12092
|
| 12 | T85-05050201 | DRIVE WHEEL | 688-41631-01-1S
|
| 13 | T85-05050004 | BUSH, DRIVEN WHEEL | 90386-22M13
|
| 14 | T85-05050005 | SPRING, DRIVE WHEEL | 90508-29M05
|
| 15 | F15-00000012 | SPRING 1.8 | 90468-18008
|
| 16 | T85-05050100 | PULLEY DRIVE ASSY | 0.00
|
| 17 | T85-05050101 | PULLEY DRIVE | 688-41632-01-1S
|
| 18 | T85-05050102 | TIE-IN, PULLEY | 662-41214-01
|
| 19 | T40-05070002 | BUSH, THROTTLE ACTUATOR | 90387-08M16
|
| 20 | T85-05050003 | BUSH, THROTTLE ACTUATOR | 90386-12089
|
| 21 | T85-05050006 | BIG WASHER 8 | 90201-08M23
|
| 22 | GB/T5782-M8x45 | BOLT M8x45 | 0.00
|
| 23 | T85-05060300 | LINK ROD ASSY, THROTTLE | 0.00
|
| 24 | T85-05060301 | LINK ROD, THROTTLE | 688-41211-01
|
| 25 | GB/T9074.14-M6X35 | BOLT M6x35 | 0.00
|
| 26 | GB/T96-6 | BIG WASHER 6 | 0.00
|
| 27 | T85-05060012 | WAVE WASHER | 90206-10M04
|
| 28 | T85-05060011 | WASHER, SWING SHAFT | 90387-06M17
|
| 29 | T85-05060010 | SWING LINK A, THROTTLE | 688-41213-00
|
| 30 | F25-07000005W
| JOINT A, REMOTE CABLE
| 663-48344-00
|
| 31 | T85-03000100
| FIXED PLATE ASSY, CABLE
| 0.00
|
| 32 | T85-03000102
| CLAMP
| 0.00
|
| 33 | GB/T879.2-3x12
| PIN 3x12
| 91690-30012
|
| 34 | T85-03000101
| FIXED PLATE, CABLE
| 663-48531-00
|
| 35 | GB/T5783-M8x16
| BOLT M8x16
| 97095-08016
|
| 36 | T85-00010008
| WASHER, NYLON
| 90202-07M07
|
| 37 | T85-00010009
| SLIDED BLOCK, THROTTLE
| 688-44124-00
|
| 38 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 39 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 40 | T85-00010010
| PULLEY, THROTTLE
| 688-44122-00
|
| 41 | T85-00010006
| BASE, SWING LINK
| 688-44117-00-94
|
| 42 | T85-00010200
| SWING LINK ASSY, THROTTLE
| 688-44121-02
|
| 43 | T85-00010007
| BUSH, SMALL SHAFT
| 90386-06M12
|
| 44 | GB/T9074.14-M8X30
| BOLT M8x30
| 0.00
|
| 45 | GB/T93-8
| WASHER, SPRING 8
| 92995-08100
|
| 46 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 47 | T85-00010003
| BRACKET, SHIFT ROD
| 688-44118-01-94
|
| 48 | T20-03000006
| PLUNGER, SHIFT CAM
| 0.00
|
| 49 | T20-03000008
| SPRING A, PLUNGER
| 0.00
|
| 50 | T20-03000009
| SPRING B, PLUNGER
| 90501-12082
|
| 51 | T20-03000007
| NUT, PLUNGER
| 648-42715-00
|
| 52 | T85-00010002
| BUSH, SHIFT ROD
| 90386-08006
|
| 53 | T85-00010100L
| SHIFT ROD ASSY L
| 688-44120-12
|
| T85-00010100X
| SHIFT ROD ASSY X
| 688-44120
|
| 54 | T85-00010001
| RUBBER CAP, SHIFT
| 696-44147-00
|
| 55 | T85-00000010
| BUSH, SHIFT CAM
| 697-43662-00
|
| 56 | T85-00010300L
| SHIFT ROD ASSY B L
| 0.00
|
| T85-00010300X
| SHIFT ROD ASSY B X
| 0.00
|
| 57 | T85-05000036
| PIN, DETENT
| 0.00
|
