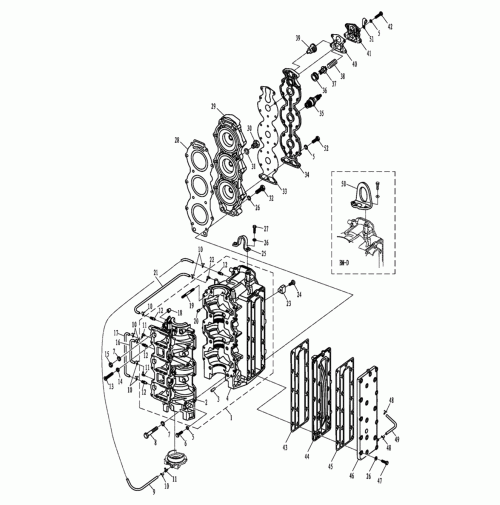

CRANKCASE - 2 Strock for T75T85T90
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
1
| T85-05010000 | CRANKCASE ASSY | 688-15100-07
|
| 2 | T85-05010201 | CRANKCASE | 0.00
|
| 3 | F25-00000014 | PIN 8x12 | 99530-08012
|
4
| T85-05010101 | CYLINDER CASE | 0.00
|
5
| GB/T97.1-6 | WASHER 6 | 92995-06600
|
6
| F8-05000022 | BOLT M6x25 | 0.00
|
7
| GB/T97.1-10 | WASHER 10 | 90201-10120
|
8
| T40-05000030 | BOLT M8x1.25x55 | 90119-10005
|
9
| T85-05020010 | HOSE D 2.5x7x470 | 90445-07M86
|
| 10 | T15-04000013 | CLIP SPRING C | 90467-06016
|
11
| T85-05010300 | VALVE CHECK ASSY | 688-11370-01
|
| 12 | T40-05000200 | PIPE, JOINT A | 650-11372-00
|
| 13 | GB/T818-M6x65 | SCREW M6x65 | 90157-06014
|
14
| GB/T6170-M6 | NUT M6 | 95303-06600
|
15
| T85-05010008 | NUT M10x1.25
| 95313-10600
|
16
| T85-05010003 | HOSE A 2.5x7x105 | 90445-07M00
|
17
| T85-05010004 | HOSE B 2.5x7x185 | 90445-07M23
|
| 18 | T15-04030103 | COVER, NUT | 688-44194-00
|
19
| T85-05010001 | BOLT STUD M10x1.25x55 | 90116-10M06
|
| 20 | T85-05010006
| FIXED PIN, CRANKSHAFT
| 663-11518-01
|
| 21 | T85-05010005
| HOSE C 2.5x7x208
| 90445-07260
|
| 22 | T85-05010400
| VALVE CHECK ASSY
| 650-11370-01
|
| 23 | T85-05010007
| ANODE, CRANKCASE
| 688-11325-00
|
| 24 | GB/T819.1-M4x15
| SCREW M4x15
| 0.00
|
| 25 | T85-05000017
| POTHOOK, ENGINE
| 688-11119-01
|
| 26 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 27 | GB/T9074.14-M8X20
| BOLT M8x20
| 0.00
|
| 28 | T85-05000001
| GASKET, CYLINDER HEAD
| 688-11181-A2
|
| 29 | T85-05000002
| CYLINDER COVER
| 692-11111-01-94
|
| 30 | F15-04000002
| BOLT, DRAIN
| 90340-14M00
|
| 31 | T85-05000003
| GASKET, JAM
| 90430-14115
|
| 32 | T15-04000031
| BOLT M8x60
| 90119-08MA8
|
| 33 | T85-05000005
| GASKET, CYLINDER COVER
| 688-11193-A1
|
| 34 | T85-05000006
| OUTER COVER, CYLINDER
| 688-11191-00-1S
|
| 35 | BPR7HS
| SPARK PLUG BPR7HS
| 0.00
|
| 36 | T85-05000007
| SEAL, PRESSURE VALVE
| 90480-20M05
|
| 37 | T85-05000008
| CORE, PRESSURE VALVE
| 688-12416-00
|
| 38 | T85-05000009
| SPRING, PRESSURE VALVE
| 90501-16M11
|
| 39 | T15-04000010
| THERMOSTAT
| 688-12411-11
|
| 40 | T85-05000010
| GASKET, THERMOSTAT
| 688-12414-A1
|
| 41 | T85-05000011
| COVER, THERMOSTAT
| 688-12413-00-1S
|
| 42 | GB/T9074.14-M6X35
| BOLT M6x35
| 0.00
|
| 43 | T85-05000013
| GASKET, INNER COVER
| 688-41112-A0
|
| 44 | T85-05000014
| INNER COVER, EXHAUST
| 688-41111-00-1S
|
| 45 | T85-05000015
| GASKET, OUTER COVER
| 688-41114-A0
|
| 46 | T85-05000016
| OUTER COVER, EXHAUST
| 688-41113-00-1S
|
| 47 | GB/T5782-M8X40
| BOLT M8x40
| 0.00
|
| 48 | F4-04000030
| CLIP SPRING B
| 90467-08004
|
| 49 | T85-03000002
| HOSE 5x10x300
| 663-24312-01
|
| 50 | T85-05000037
| POTHOOK B, ENGINE
| 0.00
|
| 51 | T85-01030006
| CLAMP
| 0.00
|
| 52 | GB/T5783-M6X25
| BOLT M6x25
| 0.00
|
