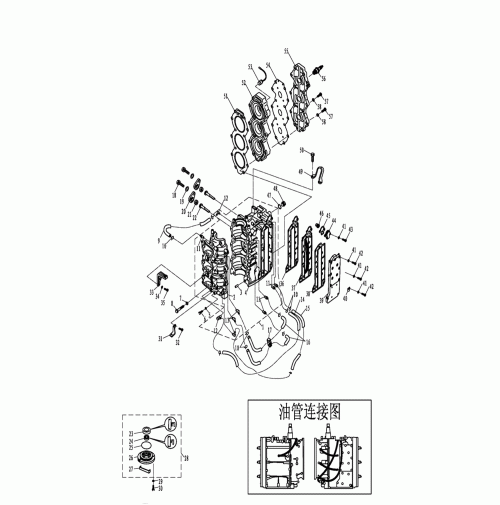

CRANKCASE - 2 Strock for T60A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T60-05010000 | CRANKCASE ASSY | 69D-15100-00
|
| 2 | T60-05010201 | CRANKCASE | 0.00
|
3
| F25-00000014 | PIN 8x12 | 99530-08012
|
4
| T60-05010100 | CYLINDER CASE | 0.00
|
5
| GB/T97.1-8 | WAHSER 8 | 92995-08100
|
6
| T60-05010001 | BOLT M8x40 | 0.00
|
7
| GB/T97.1-10 | WASHER 10 | 90201-10120
|
8
| T40-05000030 | BOLT M8x1.25x55 | 90119-10005
|
9
| T60-05000014
| HOSE A 2x7x255 | 0.00 |
| 10 | T15-04000013T | CLIP SPRING C | 90467-06016 |
| 11 | T15-04010202
| PIPE, JOINT
| 624-14485-00
|
| 12 | T85-05010300
| VALVE CHECK ASSY
| 688-11370-01
|
| 13 | T85-05010400
| VALVE CHECK ASSY
| 650-11370-01
|
| 14 | T60-05000015
| HOSE B 2x7x445
| 0.00
|
| 15 | T60-05000016
| HOSE C 2.5x7x350
| 0.00
|
| 16 | T60-05000017
| HOSE D 2.5x7x170
| 0.00
|
| 17 | F25-05000016
| CLAMP, NYLON
| 0.00
|
| 18 | GB/T5783-M6x16
| BOLT M6x16
| 0.00
|
| 19 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 20 | T60-05000009
| PLATE, ANODE
| 6H3-11327-00-94
|
| 21 | T60-05000008
| SEAL, ANODE
| 6H3-11328-00
|
| 22 | T60-05000007
| ANODE
| 6H3-11325-01
|
| 23 | T85-05020403
| OIL SEAL 30x47x7
| 93102-30M05
|
| 24 | T60-05020202
| OIL SEAL 18x32x5
| 93106-18001
|
| 25 | T60-05020205
| O-RING 65.8x2.4
| 93210-65M50
|
| 26 | T60-05020201
| CASING, OIL SEAL
| 6H3-15359-00-94
|
| 27 | T60-05020204
| SEAL, OIL SEAL CASING
| 0.00
|
| 28 | T60-05020200
| OIL SEAL CASING ASSY
| 0.00
|
| 29 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 30 | GB/T5783-M6x20
| BOLT M6x20
| 0.00
|
| 31 | T60-05000044
| FRAME, DETENT CABLE
| 0.00
|
| 32 | GB/T5783-M6x12
| BOLT M6x12
| 90119-06M73
|
| 33 | T60-05000043
| RIGHT BRACKET, STARTER
| 0.00
|
| 34 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 35 | GB/T5783-M6x25
| BOLT M6x25
| 0.00
|
| 36 | T60-05000010
| GASKET, INNER COVER
| 6H3-41112-A0
|
| 37 | T60-05000011
| INNER COVER, EXHAUST
| 6H3-41111-01-1S
|
| 38 | T60-05000012
| GASKET, OUTER COVER
| 6H3-41114-A0
|
| 39 | T60-05000013
| OUTER COVER, EXHAUST
| 6H3-41113-02-1S
|
| 40 | T85-01030006
| CLAMP
| 0.00
|
| 41 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 42 | GB/T5783-M6x35
| BOLT M6x35
| 0.00
|
| 43 | GB/T5783-M6x25
| BOLT M6x25
| 0.00
|
| 44 | F15-07010021
| COVER, THERMOSTAT
| 6H3-12413-00-1S
|
| 45 | F15-07010022
| COVER, THERMOSTAT
| 6H3-12414-A1
|
| 46 | T15-04000010
| THERMOSTAT
| 688-12411-11
|
| 47 | T85-05000003
| GASKET, JAM
| 90430-14115
|
| 48 | F15-04000002
| BOLT, DRAIN
| 90340-14M00
|
| 49 | T60-05000019
| POTHOOK, ENGINE
| 6K5-11119-01
|
| 50 | GB/T5783-M8x20
| BOLT M8x20
| 90119-08MA3
|
| 51 | T60-05000001
| GASKET, CYLINDER HEAD
| 6H3-11181-A2
|
| 52 | T60-05000002
| CYLINDER COVER
| 6H3-11111-01S
|
| 53 | T40-05000100
| THERMOSENSOR ASSY
| 688-82560-10
|
| 54 | T60-05000003
| GASKET, CYLINDER COVER
| 6H3-11193-A1
|
| 55 | T60-05000004
| OUTER COVER, CYLINDER
| 6H3-11191-00-1S
|
| 56 | BPR7HS
| SPARK PLUG BPR7HS
| 0.00
|
| 57 | T40-05000031
| BOLT M8x70
| 90119-08MA5
|
| 58 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
