CRANKCASE - 4 Strok For F5AF6A
- Brand: Yamaha
- Product Code: CRANKCASE - 4 Strok For F5AF6A
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

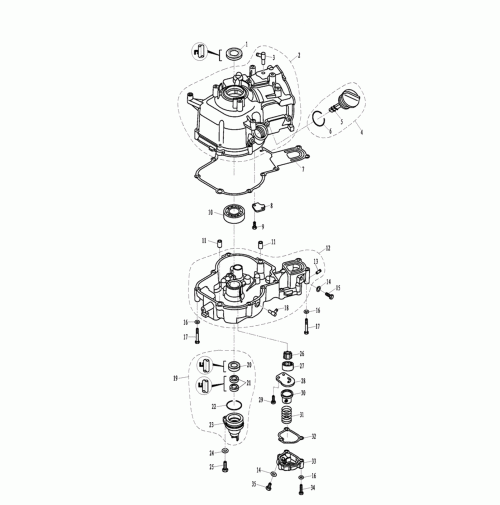

CRANKCASE - 4 Strok For F5AF6A
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F4-04010004 | OIL SEAL A 25x40x5 | 93102-25090 |
| 2 | F6-04010100 | CRANK CASE ASSY | |
| 3 | F8-05000700 | PIPE, JOINT | |
| 4 | F4-04000036 | PLUG WITH DIPSTICK ASSY | |
| 5 | F4-04000007 | PLUG WITH DIPSTICK | 68D-E5362-00 |
| 6 | JASO-F404-35-022 | O-RING 22.4x3.5 | |
| 7 | F6-04000001 | GASKET, CRANK CASE | 6BX-11351-00 |
| 8 | F6-04010004 | OIL, BAFFLE PLATE | |
| 9 | GB/T5783-M5x10 | BOLT M5x10 |
| 10 | GB/T276-6205C3 | BEARING 6205C3 | 93306-205YD |
| 11 | T20-06000030 | HOLLOW PIN 10x8.4x14 | |
| 12 | F6-04040100 | COVER, CRANK CASE | |
| 13 | F4-04010102A | PIPE, JOINT | |
| 14 | F4-04000006 | GASKET, DRAIN BOLT | 90201-08818 |
| 15 | GB/T5783-M8x14 | BOLT M8x14 | |
| 16 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 17 | T8-05000021 | BOLT M6x50 | |
| 18 | F15-04000005 | PIPE, JOINT | 676-11372-00 |
| 19 | F6-04080000 | OIL SEAL CASING ASSY |
| 20 | F2.6-04010001 | OIL SEAL 20x30x7 | 93102-20108 |
| 21 | F6-04080001 | OIL SEAL 10.1x21x7 | |
| 22 | F4-04060002 | O-RING | |
| 23 | F4-04060001 | CASING, OIL SEAL | |
| 24 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 25 | GB/T5783-M8X20 | BOLT M8x20 | 90119-08MA3 |
| 26 | F6-04040002 | INNER ROTOR, OIL PUMP | |
| 27 | F6-04040003 | OUTER ROTOR, OIL PUMP | |
| 28 | F6-04040004 | COVER BOARD, FUEL PUMP | |
| 29 | GB/T818-M6x10 | SCREW M6x10 | 97880-06012 |
| 30 | F6-04040006 | FILTER, OIL PUMP | |
| 31 | F6-04040007 | SPRING | |
| 32 | F6-04040005 | GASKET, OIL PUMP | |
| 33 | F6-04040008 | COVER, OIL PUMP | |
| 34 | GB/T5783-M6X35 | BOLT M6x35 | |
| 35 | F6-04040009 | BOLT, DRAIN |
