CRANKCASE - 4 Strok For F8F9.8
- Brand: Yamaha
- Product Code: CRANKCASE - 4 Strok For F8F9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

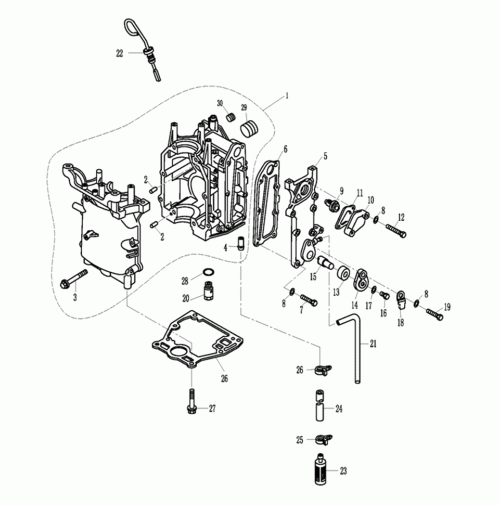

CRANKCASE - 4 Strok For F8F9.8
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F8-05010000 | CRANKCASE ASSY | |
| 2 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 3 | F4-04000039 | BOLT M8x50 | |
| 4 | F8-05010002 | NIPPLE | |
| 5 | F8-05010003 | OUTER COVER, EXHAUST | |
| 6 | F8-05010004 | GASKET, OUTER COVER | |
| 7 | GB/T5783-M6X25 | BOLT M6x25 | |
| 8 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 9 | F15-07000031 | THERMOSTAT |
| 10 | F8-05010006 | COVER, THERMOSTAT | |
| 11 | F8-05010005 | GASKET, THERMOSTAT | |
| 12 | GB/T5782-M6X40 | BOLT M6x40 | |
| 13 | F15-07010009 | SEAL, ANODE | |
| 14 | F15-07010011 | PLATE, ANODE | |
| 15 | F15-07010008 | ANODE, CRANKCASE | 66M-11325-00 |
| 16 | GB/T818-M5X12 | SCREW M5x12 | 97885-05012 |
| 17 | GB/T97.1-5 | WASHER 5 | 6Y1-24329-00 |
| 18 | F15-07010012 | PLATE, ANODE | |
| 19 | GB/T5783-M6X20 | BOLT M6x20 |
| 20 | F8-05000900 | RELIEF VALVE ASSY | |
| 21 | F8-05000026 | WATER TUBE | |
| 22 | F8-00000200 | DIPSTICK ASSY | |
| 23 | F8-05000800 | OIL STRAINER | |
| 24 | F8-05000017 | HOSE | |
| 25 | F8-05000025 | CLAMP | |
| 26 | F8-00000004 | GASKET, ENGINE | |
| 27 | F8-00000003 | BOLT M8x35 | |
| 28 | GB/T3452.1-11.8x1.8 | O-RING 11.8x1.8 | |
| 29 | F15-07010005 | JAM 1/4 |
| 30 | F15-07010004 | JAM 1/8 |
