CYLINDER & CRANKCASE 2 - 4 Strok For F2.6BM
- Brand: Yamaha
- Product Code: CYLINDER & CRANKCASE 2 - 4 Strok For F2.6BM
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

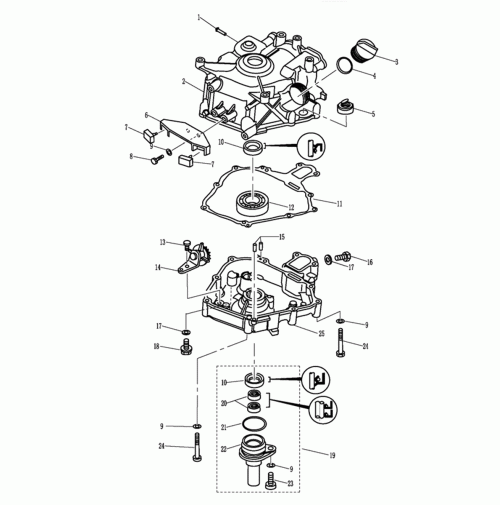

CYLINDER & CRANKCASE 2 - 4 Strok For F2.6BM
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | T15-04010202 | PIPE, JOINT | 624-14485-00 |
| 2 | F2.6-04010100 | CRANK CASE ASSY | 69M-E1311-00-1S |
| 3 | F15-07050004 | FILLER CAP | 6G8-15363-00 |
| 4 | JASO-F404-31-025 | O-RING | |
| 5 | F2.6-04010102 | OIL GAUGE | |
| 6 | F2.6-04000008 | BRACKET, DAMPER | 69M-G2743-00 |
| 7 | F2.6-04000009 | DAMPER, RUBBER | 6G8-44532-00 |
| 8 | GB/T5783-M6X20 | BOLT M6x20 | |
| 9 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 10 | F2.6-04010001 | OIL SEAL 20x30x7 | 93102-20108 |
| 11 | F2.6-04000004 | GASKET, CRANK CASE | 69M-11351-A0 |
| 12 | GB/T276-62/22/P6 | BALL BEARING 62/22/P6 | |
| 13 | GB/T5783-M6X12 | BOLT M6x12 | 90119-06M73 |
| 14 | F2.6-04050100 | GEAR UNIT ASSY | 69M-E3102-00 |
| 15 | F15-00000013 | PIN 4x12 | 93604-10M03 |
| 16 | GB/T5783-M8X14 | BOLT M8x14 | |
| 17 | F4-04000006 | GASKET, DRAIN BOLT | 90201-08818 |
| 18 | F4-04000001 | BOLT M8x20 | |
| 19 | F2.6-04060000 | OIL SEAL CASING ASSY |
| 20 | F2.6-04060002 | OIL SEAL K-5657 | 93102-09004 |
| 21 | F4-04060002 | O-RING | |
| 22 | F2.6-04060001 | CASING, OIL SEAL | |
| 23 | GB/T5783-M8X20 | BOLT M8x20 | 90119-08MA3 |
| 24 | GB/T5782-M6X45 | BOLT M6x45 | |
| 25 | F2.6-04050000 | COVER, CRANKCASE |
