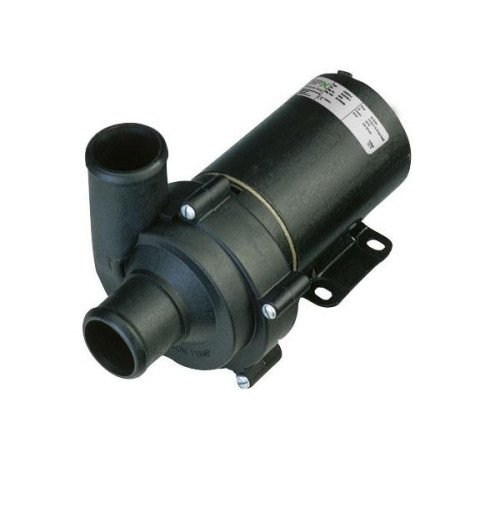

Circulation Pump With Mechanical Seal C090 - Dia.38 mm - 12 or 24 Volts - PP10-24190-1X - Johnson Pump:
Pump Body: PA66 thermoplastic
Impeller: PA66 thermoplastic
Motor: 12/24V DC enclosed (as per IP31) permanent magnet, ball bearing mounted motor, designed for continuous operation
Shaft: Stainless steel
Shaft seal: Mechanical seal
Liquid: Water/glycol mixture; max 60% glycol, fresh water
Liquid temp.: Min. -30°C, Max. +100°C
Port Size: 38 mm (1-1/2") hose
Part No.
| Description
| Capacity 0.1 bar (3.4 ft H2O) | Length
| Width
| Height
| Weight
|
10-24190-1
| C090P5-1, 12V
| 100L/min at 0.1 bar (26.4 GPM) | 211 mm – 8.3"
| 117 mm – 4.6"
| 110 mm – 4.56" from baseplate (totally 116 mm – 4.8")
| 1.75 kg – 3.8 lbs
|
10-24190-2 | C090P5-1, 24V
| 100L/min at 0.1 bar (26.4 GPM)
| 211 mm – 8.3"
| 117 mm – 4.6"
| 110 mm – 4.56" from baseplate (totally 116 mm – 4.8")
| 1.75 kg – 3.8 lbs |
