ELECTRIC SYSTEM 1 - 2 Strock for T60A
- Brand: Yamaha
- Product Code: ELECTRIC SYSTEM 1 - 2 Strock for T60A
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

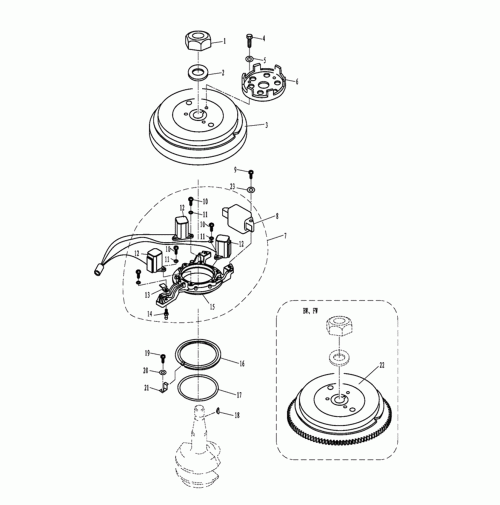

ELECTRIC SYSTEM 1 - 2 Strock for T60A
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F25-05000026 | NUT, FLY WHEEL | 90170-20137 |
| 2 | F25-05000025 | WASHER, FLYWHEEL NUT | 90201-21M18 |
| 3 | T60-05000300 | FLY WHEEL ASSY | 6K5-85550-11 |
| 4 | GB/T5783-M8x14 | BOLT M8x14 | 0.00 |
| 5 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 6 | T60-05000041 | PULLEY, STARTER | 6K5-15723-00 |
| 7 | T60-05030000 | PULSER & CHARGE COIL ASSY | 6H3-85510-A1 |
| 8 | T60-05030300 | STATOR COIL ASSY | 6H3-85520-00 |
| 9 | GB/T818-M5x24 | SCREW M5x24 | 0.00 |
| 10 | GB/T818-M4x12 | SCREW M4x12 | 0.00 |
| 11 | GB/T93-4 | WASHER,SPRING 4 | 0.00 |
| 12 | T60-05030200 | PULSER COIL ASSY | 0.00 |
| 13 | T60-05030001 | PLATE, WIRE | 0.00 |
| 14 | T8-05000706 | JOINT, CONNECTING ROD | 0.00 |
| 15 | T60-05030100 | BRACKET, PULSER COIL | 0.00 |
| 16 | T60-05000021 | GASKET, STATOR COIL BASE | 0.00 |
| 17 | T60-05000022 | GASKET, STATOR COIL BASE | 0.00 |
| 18 | T40-05000018 | WOODRUFF KEY, FLY WHEEL | 90280-05015 |
| 19 | GB/T818-M6x12 | SCREW M6x12 | 90109-06M31 |
| 20 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 21 | T60-05000023 | FIXED BROAD, STATOR COIL BASE | 0.00 |
| 22 | T60-05000300W | FLY WHEEL ASSY | 6K5-85550-A1 |
| 23 | GB/T93-5 | WASHER, SPRING 5 | 0.00 |
| 24 | GB/T818-M4x6 | SCREW M4x6 | 0.00 |
