ELECTRICAL SYSTEM II - 2 Strock for T40J
- Brand: Yamaha
- Product Code: ELECTRICAL SYSTEM II - 2 Strock for T40J
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

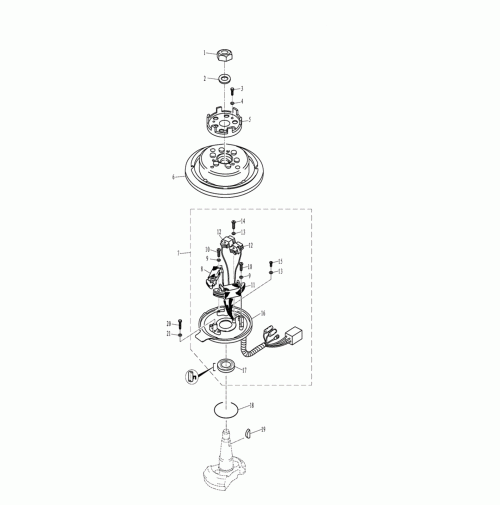

ELECTRICAL SYSTEM II - 2 Strock for T40J
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F25-05000026 | NUT, FLY WHEEL | 90170-20137 |
| 2 | F25-05000025 | WASHER, FLYWHEEL NUT | 90201-21M18 |
| 3 | GB/T5783-M8x14 | BOLT M8x14 | 0.00 |
| 4 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 5 | T20-06000031 | PULLEY, STARTER | 0.00 |
| 6 | T36-04000500 | FLYWHEEL ASSY | 6F5-85550-G0 |
| 7 | T36-04040000 | STATOR COIL BASE ASSY | 6F5-85560-B0 |
| 8 | T36-04040100 | STATOR COIL ASSY | 6F5-85520-10 |
| 9 | GB/T93-5 | WASHER, SPRING 5 | 0.00 |
| 10 | GB/T818-M5x25 | SCREW M5x25 | 0.00 |
| 11 | T36-04040200 | LIGHTING COIL | 6F5-85533-10 |
| 12 | T36-04040300 | PULSER COIL ASSY | 0.00 |
| 13 | GB/T93-4 | WASHER,SPRING 4 | 0.00 |
| 14 | GB/T818-M4x22 | SCREW M4x22 | 0.00 |
| 15 | GB/T818-M4x6 | SCREW M4x6 | 0.00 |
| 16 | T36-04040001 | BASE, STATOR COIL | 6F5-85597-J0 |
| 17 | T40-05040008 | OIL SEAL 35x50x8 | 93102-35M18 |
| 18 | T40-05040002 | O-RING, STATOR COIL | 93210-75M51 |
| 19 | T40-05000018 | WOODRUFF KEY, FLY WHEEL | 90280-05015 |
| 20 | GB/T5782-M6X40 | BOLT M6x40 | 0.00 |
| 21 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
