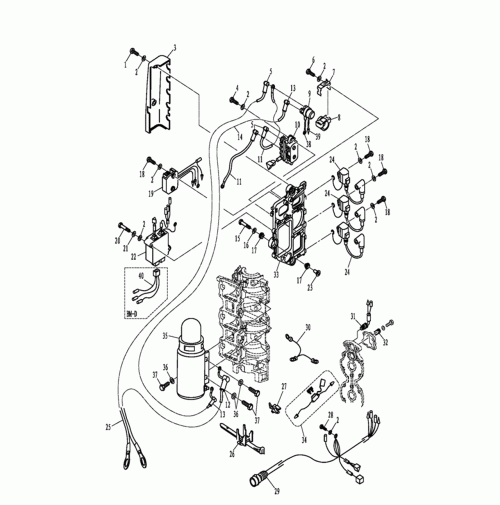

ELECTRICAL SYSTEM II - 2 Strock for T75T85T90
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
1
| GB/T818-M6x16 | SCREW M6x16 | 90159-06M11
|
| 2 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 3 | T85-05030005 | COVER, RELAY | 6H1-81916-00
|
4
| GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00
|
5
| F25-05170202W | JACKET B, POWER CABLE | 682-82119-01
|
6
| GB/T5783-M6x16 | BOLT M6x16 | 0.00
|
7
| T85-05030600 | FIXED PLATE, RELAY | 6E9-81945-70
|
8
| F15-07150301W | COVER, RELAY | 0.00
|
9
| F15-07150300W | STARTER RELAY ASSY | 6G1-81941-10
|
| 10 | T85-05030200 | RELAY | 61A-81950-00
|
11
| T85-05030002 | EARTH WIRE BLACK | 6H0-81949-10
|
| 12 | F25-05170201W | JACKET A, POWER CABLE | 0.00
|
| 13 | F25-05170401W | JACKET, POWER CABLE | 0.00
|
14
| T85-05000022 | POWER CABLE, MOTOR | 6h3-82117-00
|
15
| GB/T9074.14-M6X30 | BOLT M6x30 | 0.00
|
16
| GB/T96-6 | BIG WASHER 6 | 0.00
|
17
| T85-05000020 | DAMPER, IGNITION COIL | 90480-09M25
|
18
| GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00
|
19
| T85-05030300 | RECTIFIER ASSY | 6H0-81960-00
|
| 20 | GB/T818-M6X40
| SCREW M6x40
| 0.00
|
| 21 | GB/T93-6
| WASHER, SPRING 6
| 92995-06100
|
| 22 | T85-05030100
| CDI UNIT ASSY
| 688-85540-00
|
| 23 | T85-05000019
| TUBE, FLANGE
| 90387-06M03
|
| 24 | T85-05030500
| IGNITION COIL ASSY
| 697-85570-00
|
| 25 | T85-05000023
| POWER CABLE ASSY
| 6H0-82105-02
|
| 26 | T85-03000006
| CLAMP, IGNITION COIL
| 688-82594-00
|
| 27 | T85-03000005
| SQUARE CLAMP
| 90464-09M13
|
| 28 | GB/T5783-M6x12
| BOLT M6x12
| 90119-06M73
|
| 29 | T85-05030400
| IGNITION WIRE ASSY, 10 PIN
| 688-82590-17
|
| | T85-05030400BW
| IGNITION WIRE ASSY, 7 PIN
| 0.00
|
| 30 | T85-05050007
| EARTH WIRE
| 697-82519-00
|
| 31 | T40-05000100
| THERMOSENSOR ASSY
| 688-82560-10
|
| 32 | T85-05000012
| PLATE, THERMOSENSOR
| 688-82588-01
|
| 33 | T85-05030001
| BRACKET, IGNITION COIL
| 6H1-85542-00-94
|
| 34 | F25-05090100W
| FUSE ASSY
| 0.00
|
| 35 | T85-05000200
| STARTER MOTOR
| 688-81800-12
|
| 36 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 37 | GB/T9074.14-M8X30
| BOLT M8x30
| 0.00
|
| 38 | T85-05030003
| EARTH WIRE BROWN
| 0.00
|
| 39 | T85-05030004
| EARTH WIRE BLACK
| 0.00
|
| 40 | T85-05030800
| CDI IGNITION WIRE ASSY
| 0.00
|
