FUEL SYSTEM - 2 Strock for T60A
- Brand: Yamaha
- Product Code: FUEL SYSTEM - 2 Strock for T60A
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

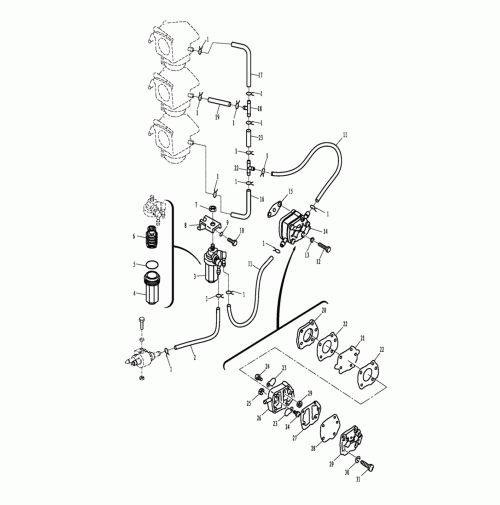

FUEL SYSTEM - 2 Strock for T60A
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F4-04000030 | CLIP SPRING B | 90467-08004 |
| 2 | T60-05000036 | HOSE B 5x10x320 | 0.00 |
| 3 | F15-07080000 | FUEL FILTER ASSY | 61N-24560-00 |
| 4 | F15-07080002 | CUP, FILTER | 61A-24521-00 |
| 5 | GB/T3452.1-32.5x1.8 | O-RING 32.5x1.8 | 0.00 |
| 6 | F15-07080001 | ELEMENT, FILTER | 61N-24563-00 |
| 7 | GB/T6170-M8 | NUT M8 | 95380-08600 |
| 8 | T15-04000023 | BRACKET, FILTER CUP | 648-24566-02 |
| 9 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 10 | GB/T5783-M6x14 | BOLT M6x14 | 0.00 |
| 11 | T60-05000034 | HOSE A 5x10x120 | 0.00 |
| 12 | GB/T5782-M6X45 | BOLT M6x45 | 0.00 |
| 13 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 14 | T40-05080000 | FUEL PUMP ASSY | 692-24410-00 |
| 15 | T40-05000024 | GASKET, FUEL PUMP | 650-24431-A0 |
| 16 | T85-05000027 | HOSE D | 688-24313-00 |
| 17 | T85-05000027 | HOSE D | 688-24313-00 |
| 18 | F15-05000011 | THREE WAY | 688-24378-00 |
| 19 | T60-05000032 | HOSE 5x10x30 | 0.00 |
| 20 | T40-05080001 | LOWER COVER, FUEL PUMP | 0.00 |
| 21 | T40-05080003 | DIAPWAGM, LOWER COVER | 692-24411-00 |
| 22 | T40-05080002 | SEAL, LOWER COVER | 648-24434-01 |
| 23 | F4-04090005 | PLATE, CHECK VALVE | 6L5-24421-00 |
| 24 | F4-04090011 | SCREW, VALVE | 0.00 |
| 25 | GB/T6170-M3 | NUT M3 | 95380-03600 |
| 26 | T40-05080004 | COVER, FUEL PUMP | 6A0-24412-02 |
| 27 | T40-05080005 | SEAL, UPPER COVER | 648-24435-02 |
| 28 | T40-05080006 | DIAPHRAGM, UPPER COVER | 663-24411-00 |
| 29 | T40-05080007 | UPPER COVER, FUEL PUMP | 6A0-24413-00 |
| 30 | GB/T93-5 | WASHER, SPRING 5 | 0.00 |
| 31 | GB/T818-M5x30 | SCREW M5x30 | 98503-05028 |
