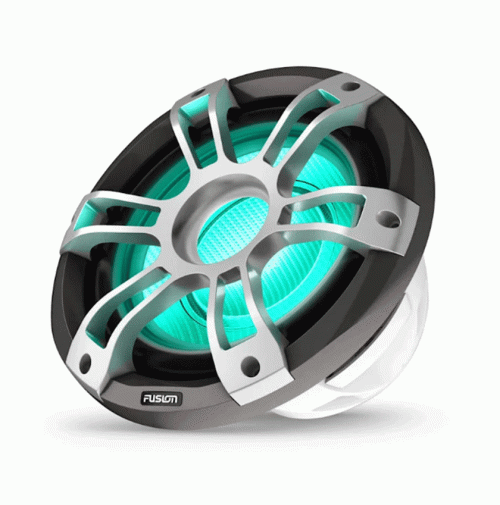

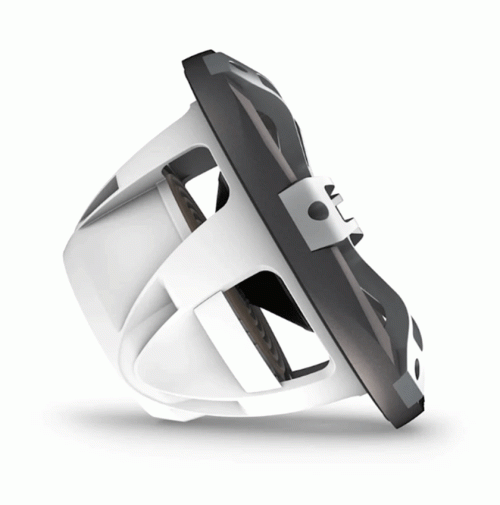

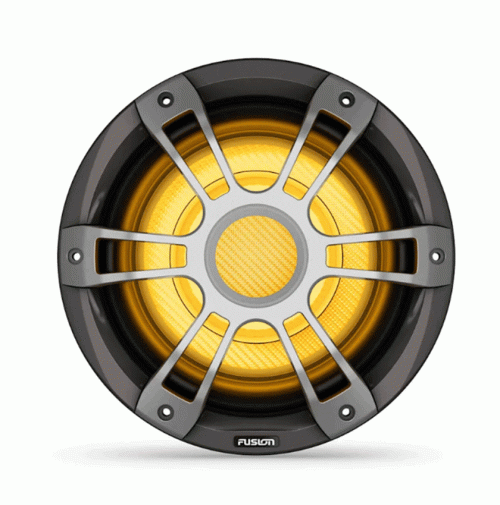

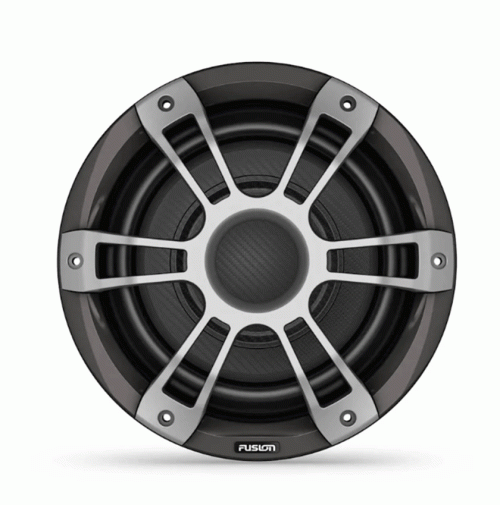

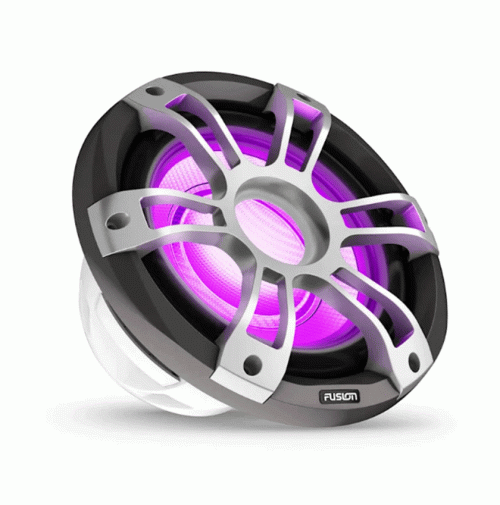

Fusion Signature Series 3i - Marine Subwoofers - 10" - 600-watt CRGBW Sports - grey marine subwoofer - 010-02774-11 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02774-11
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Fusion Signature Series 3i - Marine Subwoofers - 10" - 600-watt CRGBW Sports - grey marine subwoofer - 010-02774-11 - Fusion:
MADE FOR LIFE ON THE WATER, JUST LIKE YOU
Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to enhance your listening experience.
Crystal-clear premium sound quality is suited for the marine environment.
Water-resistant connectors provide simplified installation and superior protection.
The rigorously tested marinised design has an IP65 rating.
Available in classic 10″ design as well as 10″ and 12″ sports style design.
CRGBW LED lights set the scene on your boat.
Built to last season after season, the Fusion® Signature Series 3i Marine Subwoofers include a supported 3-year warranty.
WHAT IN THE BOX:
- One subwoofer (based on what you select)
- 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
- Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))
- Water-resistant cable assembly with 6-pin connector ((5.9" (150 mm)); sports style with LED models only)
- Documentation
| Lighting Features | |
| LED CONNECTION TYPES | Flying Lead with Water-resistant 6-way Connector, 150 mm (5.9") (selected Sport models only) |
| Mounting Dimensions | |
| FRONTAL GRILLE PROTRUSION | 10": 42 mm (1.65") 12": 50 mm (1.97") |
| Mounting depth clearance | 10": 133 mm (5.24") 12": 207mm (8.15") |
| Mounting diameter clearance | 10": 223mm (8.78") 12": 306mm (12.05") |
| GENERAL | |
| COLOUR | 10": Classic white or Sports white or Sports grey 12": Sports white or Sports grey |
| Cone material | Polypropylene cone with rubber surround |
| CONTINUOUS POWER HANDLING (RMS) | 10": 300 W 12": 700 W |
| Frequency response | 10": 30 Hz-2 kHz 12": 20 Hz-2 kHz |
| LED lighting | Yes - CRGBW (selected Sport models only) |
| LED load current @14.4 VDC (max) | 300 mA (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| Nominal impedance | 4 Ω |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| PHYSICAL DIMENSIONS (DEPTH) | 10" (Classic): 162mm (6.38") 10" (Sports): 172mm (6.77") 12" (Sports): 254mm (10") |
| PHYSICAL DIMENSIONS (DIAMETER) | 10" (Classic/Sports): 275 mm (10.83") 12" (Sports): 356 mm (14.02") |
| Recommended amplifier power (watts RMS) | 10": 50-600 W 12": 200-1000 W |
| Sensitivity | 86 dB |
| SIZES | 10"/12" |
| SPEAKER TYPE | Subwoofer |
| Warranty | 3 years |
| Water and dust rating | IP65 |
| WEIGHT | 10" (Classic): 5.06 kg (11.2 lbs) 10" (Sports): 4.98 kg (11 lbs) 10" (Sports) with CRGBW: 5.12 kg (11.3 lbs) 12" (Sports): 10.93 kg (24.1 lbs) |
| Connections | |
| speaker connections | Flying Lead with Water-resistant 2-way Connector, 150mm (5.9") |
| Electrical | |
| COMPASS SAFE DISTANCE | 10": 520 cm (205") 12": 460 cm (181") |
Tags: subwoofers, audio systems, marine entertainment, waterproof, square
