Impeller Pin Drive F4 - MC97 - 09-810B-1 - Johnson Pump

Impeller Pin Drive F4 - MC97 - 09-810B-1:

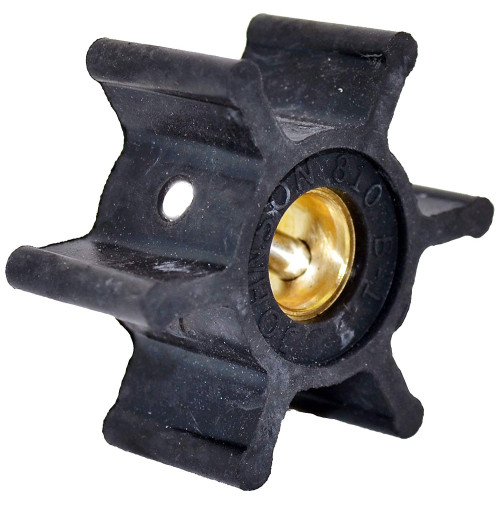

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes.

The Johnson flexible pump impeller is designed to be installed to some of the F4 range of Johnson Pumps which suits the impeller dimensions listed below.

MC97 has been developed to meet new environmental regulations for rubber manufacturing processes and will replace the regular Johnson neoprene impeller compound.

The development of MC97 has also resulted in an extended service life of the impeller compared to impellers in neoprene.

The Johnson pump flexible impeller has six blades and is supplied complete with standard gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-810B-1 can be used to replace the Jabsco impeller 18653-001 (Europe and USA flexible impeller).

For applications containing diesel or light oils, use Johnson nitrile impeller 09-810B-9.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type.

Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers they supply.

Impeller made of natural rubber (for Cooling) with dimensions:

*MC97 - for cooling

Cross Reference Guide

09-810B-1 ---> Replace the following Manufacturer OE Part Number:

500101, 500201 CEF
