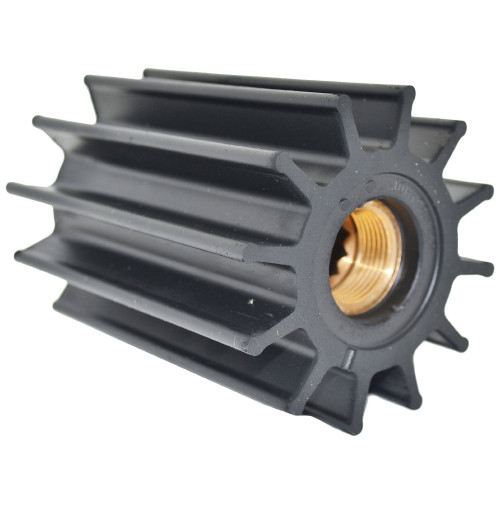

Impeller Spline - 09-820B:
Impeller made of natural rubber (for Cooling) with dimensions:
Reference Code | Pump | Material | Outer Diameter in mm. | Outer Diameter in inch.
| Inner Diameter in mm. | Inner Diameter in inch. | Width in mm. | Width in inch. | Number of Impellers |
09-820B | F95 | Neoprene* | 95 | 3.74 | Splines
| Splines
| 130 | 5.12 | 12 |
*Neoprene - for cooling
Cross Reference Guide
09-820B ---> Replace the following Manufacturer OE Part Number:
Brand Name
| Manufacturer OE Part -NO.
|
| Brand Name
| Manufacturer OE Part -NO.
|
DJ PUMP
| 08-30-1201 |
| CEF | 500186T |
