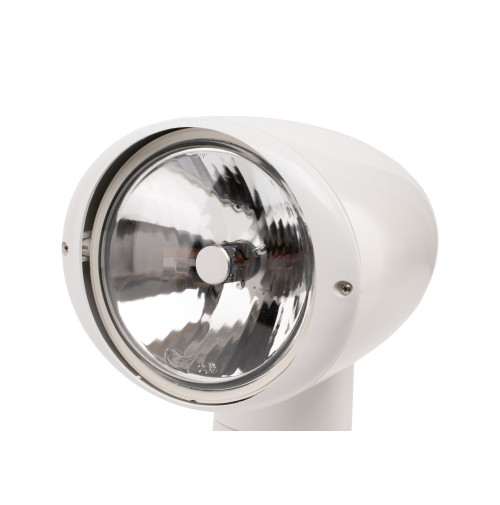

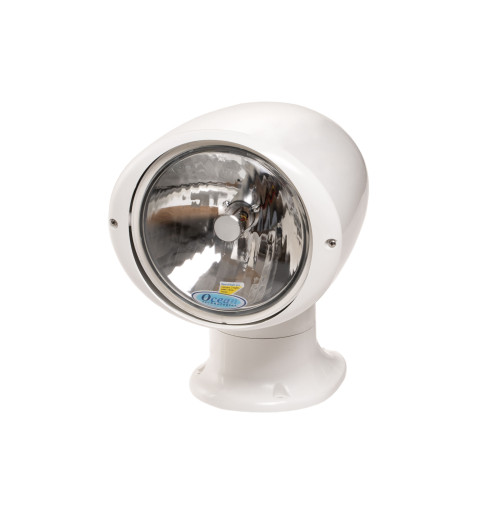

The innovative and powerful Ocean Technologies LED searchlight provides assistance with night-time activities, ensures safety on board and while sailing and features a stylish design.
The searchlight housing is made of white ASA material and has excellent corrosion and UV resistance. Operation and assembly are child's play!
The searchlight can be easily operated via wireless remote control. The innovative and splash-proof design of this remote control means that it can be used either as a portable hand-held remote control or permanently mounted in a suitable location on the dashboard.
After switching on the operating voltage, the searchlight performs a self-test. During this time, all functions are blocked for approx. 6 seconds.
After that, the searchlight can be controlled with the remote control. In addition to the ON/OFF button and the arrow buttons for right/left/up/down movements, there is another button for switching between high beam (10° light emission angle) and close-range illumination (60° light emission angle). When a button is pressed, a small red control LED lights up.
Only three fixing screws are required to mount the searchlight (not included). The only electrical work involved consists of connecting the operating voltage lines.
Delivery contents: Searchlight with a base seal, remote control including batteries and fixing screws
General Specifications:
A- Searchlight
> Light: LED
> Luminous intensity: 160,000 candela
> Voltage: 12 V or 24V
> LED current consumption @12 V: 2.2 A / 1.9 A
> Standby current consumption: 25 mA
> Max. range: up to 320 m
> Rotatable 320° horizontally and 75° vertically
> Lifetime: 7500 hours
> Brightness: Corresponds to a 200 W halogen lamp
> Dimensions: 230 x 185 x 210 mm
> Mounting: 3 holes, each 3.8 mm hole Ø
(Three half-round or flat-head screws required, not included in the delivery)
> The remote control receiver is integrated into the housing
> Required fuse: 5 A
> Recommended wire cross-section for LED searchlight:
> 2.5 mm² up to 38 m total length of PLUS and MINUS connection cables,
> 4 mm² up to 50 m total length of PLUS and MINUS connection cables
> Operating voltage connection cables are fitted with male and female round plugs.
B- Remote Control
> 433.92 Mhz, 4-channel
> Can be used as a hand-held remote control or for fixed installation
> Dimensions (LxWxH): 102 x 60 x 21 mm
> Mounting: 2 drill holes, the screw heads are covered by the upper part of the housing,
> Drilling Ø 3.2 mm, hole spacing 94 mm
(2x half-round 3x18 mm screws are included)
> Power supply: Two 12 V alkaline batteries, type 23A, 10 mm Ø x 28 mm
Note on charging the battery
> To open the remote control housing, insert a suitable tool (e.g. a 5 mm screwdriver) into the slot on the narrow side of the housing and carefully lift off the upper part of the housing.
> Replace discharged batteries with identical ones. Both battery PLUS poles must be touching the contact strip next to the red LED operation indicator!
Note on programming the remote control
A. Before programming
> Normally, the remote control and receiver come pre-set to each other.
> Programming is necessary after the repair or replacement of the remote control.
> Before programming the remote control, check the charge level of the two 12 V alkaline batteries (type 23A).
B. Programming
1. Switch off the power to the searchlight or disconnect the searchlight from the power supply.
2. Reapply power to the searchlight.
On the remote control, press the up and down arrow keys simultaneously within 5 seconds.
When the searchlight has recognized the remote control, it will light up briefly 1 to 4 times (depending on the number of remote controls learned, minimum one, maximum 4).
3. Wait until the searchlight has automatically completed the programming process or program another remote control within 5 seconds before performing any further operations.
The searchlight can be used with a maximum of 4 remote controls. If you try to program the fifth one, the first remote will be overwritten.
