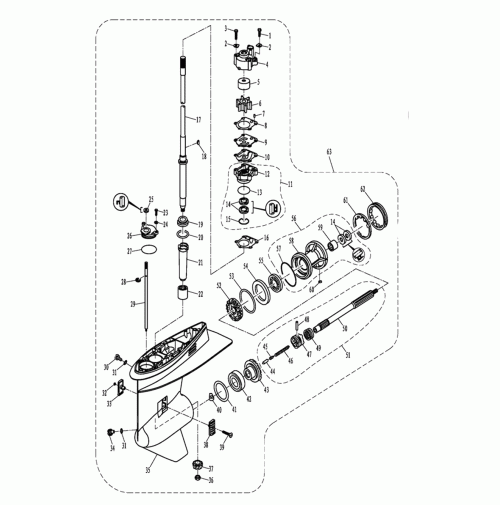

LOWER CASING & DRIVE 1 - 2 Strock for T75T85T90
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
1
| GB/T5782-M8x50 | BOLT M8x50 | 0.00
|
| 2 | T40-04000012 | PLATE, WATER PUMP
| 0.00
|
3
| GB/T5782-M8x70 | BOLT M8x70 | 0.00
|
4
| T85-04000401 | HOUSING, WATER PUMP | 688-44311-01
|
5
| T85-04000402
| INSERT COVER, WATER PUMP | 688-44322-41
|
6
| T85-04000300 | IMPELLER ASSY | 688-44352-02
|
7
| F25-04000007 | PIN 4x10 | 93604-10M03
|
8
| T85-04000017 | GASKET, OUTER PLATE | 688-44315-A0
|
9
| T85-04000016 | OUTER PLATE | 688-44323-40
|
| 10 | T85-04000015
| GASKET, OUTER PLATE
| 688-44324-A0
|
| 11 | T85-04000200
| WATER PUMP BASE ASSY
| 688-44341-01-94
|
| 12 | T85-04000201
| BASE, WATER PUMP
| 6D8-44341-01-CA
|
| 13 | T85-04000204
| O-RING 46.7x3.1
| 93210-46044
|
| 14 | T85-04000202
| OIL SEAL 25x40x6
| 93101-25M03
|
| 15 | T85-04000203
| CIRCLIP, OIL SEAL
| 93450-44166
|
| 16 | T85-04000014
| GASKET, WATER PUMP BASE
| 688-44316-A0
|
| 17 | T85-04010000L
| DRIVE SHAFT ASSY L
| 688-45501-11
|
| T85-04010000X
| DRIVE SHAFT ASSY X
| 688-45501-22
|
| 18 | T85-04000018
| WOODRUFF KEY
| 90280-04M04
|
| 19 | L44649H1-CAP
| ROLLER BEARING
| 93332-000U3
|
| 20 | T85-04000003-1
| SHIM T:0.12mm
| 688-45587-01
|
| T85-04000003-2
| SHIM T:0.30mm
| 688-45587-10
|
| T85-04000003-3
| SHIM T:0.40mm
| 688-45587-20
|
| T85-04000003-4
| SHIM T:0.50mm
| 688-45587-30
|
| T85-04000003-5
| SHIM T:0.30mm
| 688-45587-40
|
| T85-04000003-6
| SHIM T:0.40mm
| 688-45587-50
|
| T85-04000003-7
| SHIM T:0.50mm
| 688-45587-60
|
| 21 | T85-04000002
| BUSH, NYLON
| 688-45536-01
|
| 22 | NSK-1620
| NEEDLE BEARING 1620
| 0.00
|
23
| GB/T5783-M6x16
| BOLT M6x16
| 0.00
|
24
| GB/T97.1-6
| WASHER 6
| 92995-06600
|
25
| T85-04000011
| OIL SEAL 9x19x5
| 93106-09014
|
26
| T85-04000009
| COVER, SHIFT CAM
| 688-45321-00
|
27
| JASO-F404-31-050
| O-RING 50x3.1
| 0.00
|
28
| GB/T896-8
| CIRCLIP 8
| 99001-08600
|
29
| T85-04000008
| SHIFT CAM SHAFT
| 663-43144-01
|
30
| F4-03000023
| SCREW PLUG
| 90340-08002
|
31
| F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
32
| GB/T889.1-M5
| LOCK NUT M5
| 90185-05002
|
| 33 | T85-04000023
| WATER INLET B
| 6H1-45215-00
|
| 34 | F25-04000031
| BOLT, DRAIN
| 688-45341-10 |
|
| 35 |
|
|
|
| 36 |
|
|
|
| 37 |
|
|
|
| 38 |
|
|
|
| 39 |
|
|
|
| 40 |
|
|
|
| 41 |
|
|
|
|
|
|
|
