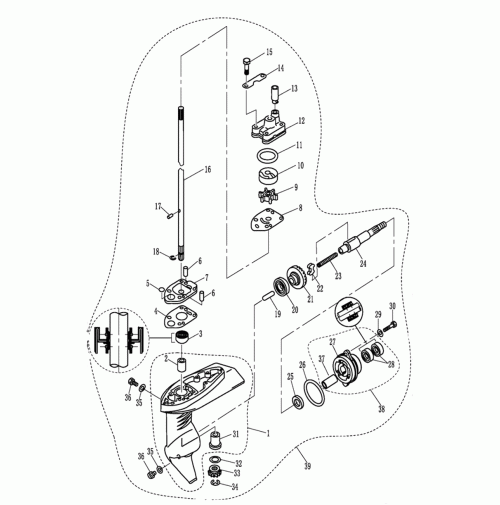

LOWER CASING & DRIVE 1 - 4 Strok For F2.6BM
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | F2.6-03000001 | LOWER CASING | 69M-G5311-00-4D
|
| 2 | F2.6-03000003 | BARREL BEARING | 6L5-45316-09
|
| 3 | F2.6-03000004
| OIL SEAL 9.8x24x9 | 93103-09M41
|
| 4 | F2.6-03000007 | GASKET, WATER PUMP BASE | 69M-G5315-A0
|
| 5 | F2.6-03000009
| O-RING 4.9X3.5 | 6L2-44147-00
|
| 6 | F4-03000013 | PIN 4x18 | 93604-18080
|
| 7 | F2.6-03000008 | BASE, WATER PUMP | 69M-G5321-00-94
|
| 8 | F2.6-03000010 | OUTER PLATE | 69M-G4323-00
|
| 9 | F2.6-03000100 | IMPELLER ASSY
|
|
| 10 | F2.6-03000015
| INSERT COVER, WATER PUMP
| 6L5-44322-00
|
| 11 | JASO-F404-19-033
| O-RING
|
|
| 12 | F2.6-03000014
| HOUSING, WATER PUMP
| 69M-G4311-00
|
| 13 | F4-03000021
| RUBBER TUBE, WATER PUMP
| 67D-44366-00
|
| 14 | F2.6-03000016
| FIXED PLATE, WATER PUMP
| 69M-G4328-00
|
| 15 | GB/T5782-M6X40
| BOLT M6x40
|
|
| 16 | F2.6-03000011S-A
| DRIVE SHAFT S
|
|
| F2.6-03000011L-A
| DRIVE SHAFT L
|
|
| 17 | F2.6-03000013
| PIN, IMPELLER 3.5X7
|
|
| 18 | F2.6-03000012
| CIRCLIP
|
|
| 19 | F2.6-03000020
| PLUNGER, SHIFT ROD
| 69M-G5635-00
|
| 20 | GB/T276-16003/P63
| BALL BEARING
|
|
| 21 | F2.6-03000019
| FORWARD GEAR ASSY
|
|
| F2.6-03000019-A
| FORWARD GEAR ASSY A
|
|
| 22 | F2.6-03000202
| SPACER, CLUTCH
| 6L5-45631-00
|
| 23 | F4-03030003
| RING, CLUTCH
| 67D-45560-00
|
| 24 | F2.6-03000201
| SHAFT, PROPELLER
|
|
| 25 | F2.6-03000021
| WASHER, DRIVE SHAFT
| 90201-13198
|
| 26 | JISB-2401-P48
| O-RING 47.1x3.5
|
|
| 27 | F2.6-03000301
| COVER, LOWER CASING
| 69M-G5361-00-4D
|
| 28 | F4-03050002
| OIL SEAL 13x22x7
| 93306-004YH
|
| 29 | GB/T5783-M6X16
| BOLT M6x16
|
|
| 30 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 31 | F2.6-03000002
| BARREL BEARING WITH FLANGE
| 6L5-45317-09
|
| 32 | F2.6-03000017
| SHIM T:2.00mm
|
|
| 33 | F2.6-03000018
| PINION
| 6L5-45551-00
|
| F2.6-03000018-A
| PINION A
|
|
| 34 | GB/T896-6
| CIRCLIP 6
|
|
| 35 | F4-03000024
| GASKET, SCREW PLUG
|
|
| 36 | F4-03000023
| SCREW PLUG
| |
| 37 | F2.6-03000302
| BARREL BEARING
| |
| 38 | F2.6-03000300
| COVER ASSY, LOWER CASING
|
|
| 39 | F2.6-03000000S
| LOWER CASING ASSY S
|
|
| F2.6-03000000L
| LOWER CASING ASSY L
|
|
