LOWER CASING & DRIVE 2 - 4 Strock for F9.9F15
- Brand: Yamaha
- Product Code: LOWER CASING & DRIVE 2 - 4 Strock for F9.9F15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

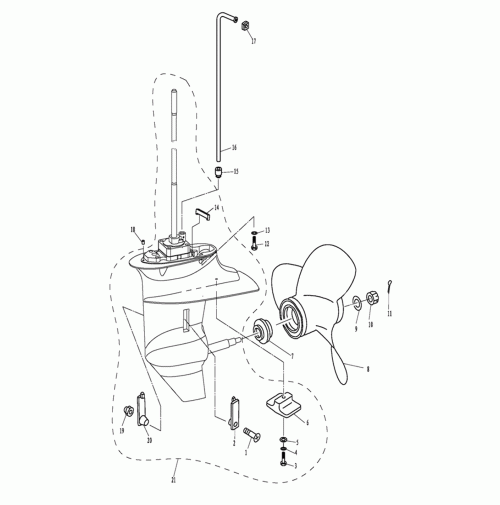

LOWER CASING & DRIVE 2 - 4 Strock for F9.9F15
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | GB/T820-M5x25 | SCREW M5x25 | 90152-05011 |
| 2 | F15-06000003 | WATER INLET B | 6G1-45214-00 |
| 3 | GB/T9074.14-M6X30 | BOLT M6x30 | |
| 4 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 5 | GB/T861.1-6 | LOCKING WASHER 6 | |
| 6 | F15-06000004 | ANODE | 61N-45251-01 |
| 7 | F15-06000015 | SPACER, PROPELLER | 6E7-45987-01 |
| 8 | F20-04050000 | PROPELLER ASSY 3-9 1/4"x12" | |
| F15-06090000-11 | PROPELLER ASSY 3-9 1/4"x11" |
| TE15-04020000 | PROPELLER ASSY 3-9 1/4"x10" | 63V-45952-10 | |
| F15-06090000-8 | PROPELLER ASSY 3-9 1/4"x8" | 63V-45947-00-EL | |
| 9 | GB/T96-10 | BIG WASHER 10 | |
| 10 | F15-06000016 | SLOTTED NUT | 90171-10M01 |
| 11 | GB/T91-2.5x20 | COTTER PIN 2.5x20 | 91490-30020 |
| 12 | GB/T9074.14-M8X30 | BOLT M8x30 | |
| 13 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 14 | F15-06020005 | SEAL, RUBBER | 63V-45375-00 |
| 15 | F15-02010003 | SEAL, WATER TUBE | 66M-44366-00 |
| 16 | F15-02000005L | WATER TUBE L |
| F15-02000005S | WATER TUBE S | 66M-44361-00 | |
| 17 | F15-02000006 | SEAL, WATER TUBE | 63V-44365-10 |
| 18 | F15-00000013 | PIN 4x12 | 93604-10M03 |
| 19 | GB/T889.1-M5 | LOCK NUT M5 | 90185-05002 |
| 20 | F15-06000002 | WATER INLET A | 63V-45215-00 |
| 21 | F15-06100000L | LOWER CASING ASSY L | |
| F15-06100000S | LOWER CASING ASSY S |
