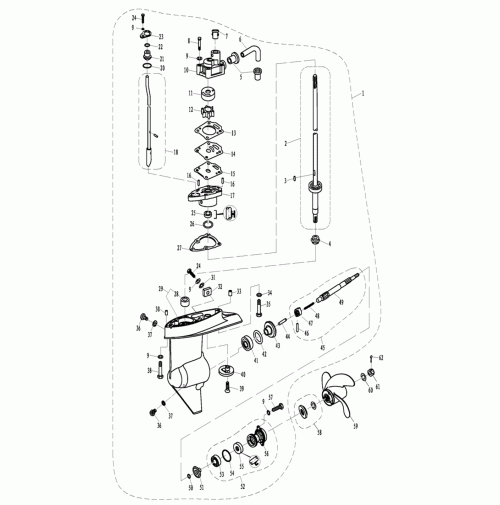

LOWER CASING & DRIVE - 4 Strok For F5AF6A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | F6-03000000L
| LOWER CASING ASSY L |
|
| F6-03000000S | LOWER CASING ASSY S |
|
| 2 | F6-03000100L | DRIVE SHAFT ASSY L |
|
| F6-03000100S | DRIVE SHAFT ASSY S |
|
| 3 | T5-03000009
| PIN, IMPELLER |
|
| 4 | T5-03000003
| PINION |
|
| 5 | T5-03000013 | BUSH A, WATER TUBE |
|
| 6 | T5-03000012
| WATER TUBE B |
|
| 7 | T5-03000014 | BUSH B, WATER TUBE |
|
| 8 | GB/T5782-M6x45
| BOLT M6x45
| |
| 9 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 10 | F6-03000001
| HOUSING, WATER PUMP
| 6BX-44311-00
|
| 11 | F6-03000002
| INSERT COVER, WATER PUMP
| 6BX-44322-00
|
| 12 | T5-03000300
| IMPELLER ASSY
|
|
| 13 | F6-03000003
| GASKET, OUTER PLATE
|
|
| 14 | T5-03000007
| OUTER PLATE
|
|
| 15 | T5-03000006
| GASKET, OUTER PLATE
|
|
| 16 | F25-04000007
| PIN 4x10
| 93604-10M03
|
| 17 | T5-03000201
| BASE, WATER PUMP
|
|
| 18 | F6-03000200L
| SHIFT CAM SHAFT ASSY L
| |
| F6-03000200S
| SHIFT CAM SHAFT ASSY S
|
|
| 20 | JASO-F404-24-016
| O-RING 15.8x2.4
|
|
| 21 | T5-03000020-1
| ORIENTED BUSHING, SHIFT ROD
|
|
| T5-03000020-2
| ORIENTED BUSHING, SHIFT ROD
|
|
| 22 | T5-03000022
| SEAL B, ORIENTED BUSHING
|
|
| 23 | T5-03000023
| PLATE, ORIENTED BUSHING
|
|
| 24 | GB/T5783-M6x16
| BOLT M6x16
|
|
| 25 | T5-03000202
| OIL SEAL
|
|
| 26 | T5-03000004-1
| SHIM T:0.10mm
|
|
| | T5-03000004-2
| SHIM T:0.15mm
| |
| 27 | T5-03000005
| GASKET, WATER PUMP BASE
|
|
| 28 | TLA1412Z
| NEEDLE BEARING
|
|
| 29 | T5-03000700
| LOWER CASING
|
|
| 30 | T5-00000001
| HOLLOW PIN 7.5
|
|
| 31 | GB/T86.1-6
| LOCKING WASHING 6
| 90209-06M05
|
| 32 | T5-03000017
| ANODE
|
|
| 33 | T5-00000002
| HOLLOW PIN 9.5
|
|
| 34 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 35 | GB/T5782-M8x40
| BOLT M8x40
|
|
| | GB/T5782-M8x167
| BOLT M8x167
| |
| 36 | F4-03000023
| SCREW PLUG
|
|
| 37 | F4-03000024
| GASKET, SCREW PLUG
|
|
| 38 | GB/T5782-M6x45
| BOLT M6x45
|
|
| GB/T5782-M6x172
| BOLT M6x172
|
|
| 39 | GB/T820-M6x20
| SCREW M6x20
|
|
| 40 | T5-03000016
| WATER INLET
|
|
| 41 | GB/T276-6004
| BEARING 6004C2
|
|
| 42 | F8-04000002-1
| SHIM T:0.15mm
|
|
| F8-04000002-2
| SHIM T:0.15mm
|
|
| 43 | T5-03010000
| FORWARD GEAR ASSY
| |
| 44 | T5-03000404
| PIN, CLUTCH
|
|
| 45 | T5-03000400
| PROPELLER SHAFT ASSY
|
|
| 46 | GB/T879.1-3.5x28
| PIN 3.5x28
|
|
| 47 | T5-03000403
| CLUTCH, DOG
|
|
| 48 | T5-03000402
| SPRING, CLUTCH
|
|
| 49 | T5-03000401
| SHAFT, PROPELLER
|
|
| 50 | F8-04000012
| WASHER, REVERSE GEAR
|
|
| 51 | T5-03000600
| GEAR, REVERSE
|
|
| 52 | T5-03000500
| COVER ASSY, LOWER CASING
|
|
| 53 | GB/T276-6002
| BEARING 6002
| |
| 54 | JASO-F404-31-050
| O-RING 50x3.1
|
|
| 55 | F8-04040004
| OIL SEAL 15x28x10
|
|
| 56 | T5-03000501
| COVER, LOWER CASING
|
|
| 57 | GB/T5783-M6X20
| BOLT M6x20
|
|
| 58 | T5-03000800
| SPACER, PROPELLER SHAFT
|
|
| 59 | F6-03010000
| PROPELLER ASSY 3-7.8"x9"
|
|
| T5-03030000
| PROPELLER ASSY 3-7.8"x 8.0"
|
|
| 60 | GB/T96-10
| BIG WASHER 10
|
|
| 61 | F15-06000016
| SLOTTED NUT
| 90171-10M01
|
| 62 | GB/T91-3.2x18
| COTTER PIN 3.2x18
| |
