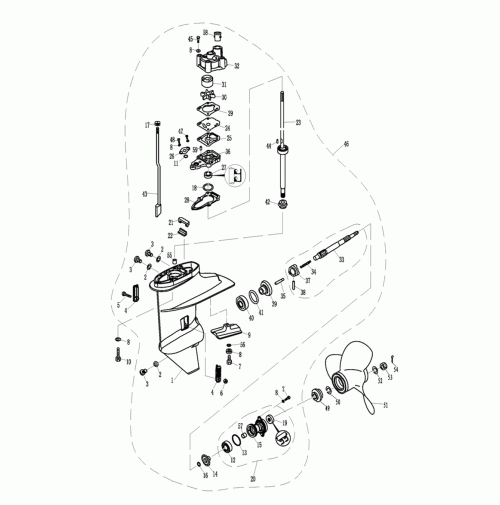

LOWER CASING & DRIVE - 4 Strok For F8F9.8
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | F8-04000001
| LOWER CASING |
|
| 2 | F4-03000024 | GASKET, SCREW PLUG |
|
| 3 | F4-03000023
| SCREW PLUG |
|
| 4 | F8-04000017
| WATER INLET |
|
| 5 | GB/T823-M4X25 | SCREW M4x25 |
|
| 6 | GB/T889.1-M4 | LOCK NUT M4 |
|
| 7 | GB/T5783-M6X25
| BOLT M6x25 |
|
| 8 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 9 | F8-04000018
| ANODE |
|
| 10 | GB/T5783-M6X35
| BOLT M6x35
| |
| 11 | F2.6-03000009
| O-RING 4.9X3.5
| 6L2-44147-00
|
| 12 | GB/T276-6004
| BEARING 6004C2
|
|
| 13 | F8-04040002
| O-RING
|
|
| 14 | F8-04000014
| GEAR, REVERSE
|
|
| 15 | F8-04040001
| COVER, LOWER CASING
|
|
| 16 | F8-04000012
| WASHER, REVERSE GEAR
|
|
| 17 | GB/T6170-M5
| NUT M5
| 95380-05600
|
| 18 | F8-04000004-1
| SHIM T:0.10mm
|
|
| F8-04000004-2
| SHIM T:0.15mm
|
|
| | F8-04000004-3
| SHIM T:0.20mm
| |
| 19 | F8-04040004
| OIL SEAL 15x28x10
|
|
| 20 | F8-04040000
| COVER ASSY, LOWER CASING
|
|
| 21 | F8-04000016
| GASKET, WATER SEAL
|
|
| 22 | F8-04000015
| WATER SEAL
|
|
| 23 | F8-04020000L
| DRIVE SHAFT ASSY L
|
|
| F8-04020000S
| DRIVE SHAFT ASSY S
|
|
| 24 | F8-04000007
| OUTER PLATE
|
|
| 25 | F8-04000006
| GASKET, OUTER PLATE
|
|
| 26 | F8-04000011
| PLATE, O-RING
|
|
| 27 | F8-04000101
| OIL SEAL 12.1x24x8
| |
| 28 | F8-04000005
| GASKET, WATER PUMP BASE
|
|
| 29 | F8-04000008
| GASKET, OUTER PLATE
|
|
| 30 | F8-04000200
| IMPELLER ASSY
|
|
| 31 | F8-04000010
| INSERT COVER, WATER PUMP
|
|
| 32 | F8-04000009
| HOUSING, WATER PUMP
|
|
| 33 | F8-04000301
| SHAFT, PROPELLER
|
|
| 34 | F8-04000302
| SPRING, CLUTCH
|
|
| 35 | F8-04000305
| PIN, CLUTCH
|
|
| 36 | F8-04000102
| BASE, WATER PUMP
|
|
| 37 | F8-04000303
| CLUTCH, DOG
| |
| 38 | GB/T879.1-3.5X28
| PIN 3.5x28
|
|
| 39 | F8-04010000
| FORWARD GEAR ASSY
|
|
| 40 | GB/T276-6204
| BEARING 6204
| 93306-20401
|
| 41 | F8-04000002-1
| SHIM T:0.15mm
|
|
| F8-04000002-2
| SHIM T:0.15mm
|
|
| 42 | F8-04000003
| PINION
|
|
| 43 | F8-04030000L
| SHIFT CAM SHAFT ASSY L
|
|
| F8-04030000S
| SHIFT CAM SHAFT ASSY S
|
|
| 44 | F8-04000021
| PIN, IMPELLER
|
|
| 45 | GB/T5782-M6X50
| BOLT M6x50
| |
| 46 | F8-04000000L
| LOWER CASING ASSY L
|
|
| F8-04000000S
| LOWER CASING ASSY S
|
|
| 47 | GB/T818-M5X6
| SCREW M5x6
|
|
| 48 | GB/T5783-M6X25
| BOLT M6x25
|
|
| 49 | F8-04000019
| SPACER, PROPELLER SHAFT
|
|
| 50 | F8-04000020
| SPACER, PROPELLER SHAFT
|
|
| 51 | F8-04050000
| PROPELLER ASSY 3-8.9"x8.3"
|
|
| 52 | GB/T96-10
| BIG WASHER 10
|
|
| 53 | F15-06000016
| SLOTTED NUT
| 90171-10M01
|
| 54 | GB/T91-2.5X20
| COTTER PIN 2.5x20
| 91490-30020
|
| 55 | NSKFJ-1516
| NEEDLE BEARING
|
|
| 56 | GB/T86.1-6
| LOCKING WASHING 6
| 90209-06M05
|
| 57 | F8-04040003
| BARREL BEARING
|
|
| 58 | F8-04000013
| BUSH, WATER TUBE
|
|
