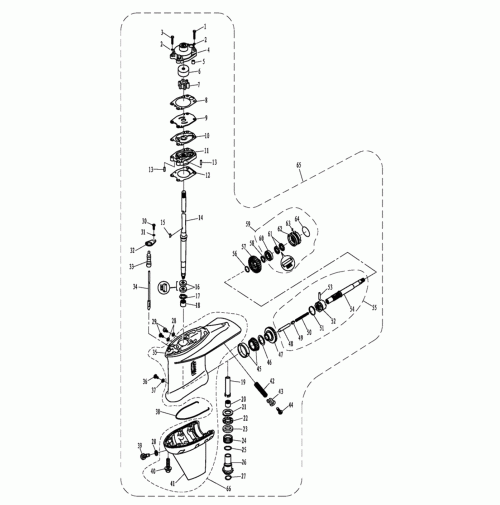

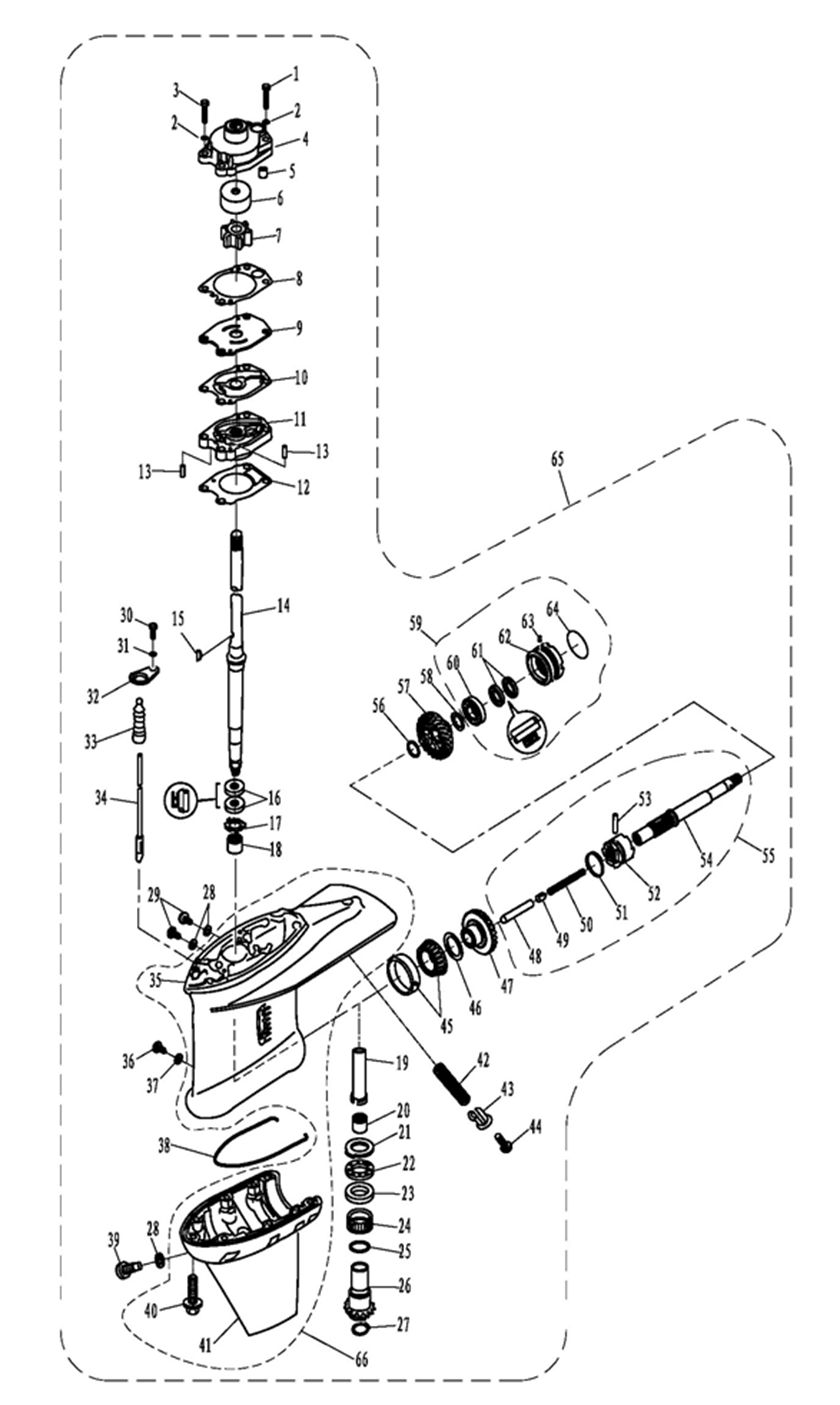

LOWER CASING & DRIVE I - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | GB/T5782-M8x55 | BOLT M8x55 | 0.00
|
| 2 | GB/T97.1-8 | WAHSER 8 | 92995-08100
|
| 3 | GB/T5782-M8x45 | BOLT M8x45 | 0.00
|
| 4 | T36-03000301 | HOUSING, WATER PUMP | 676-44311-00
|
| 5 | T36-03000303 | BUSH, WATER TUBE | 663-44366-00
|
| 6 | T36-03000302 | INSERT COVER, WATER PUMP | 676-44322-00
|
| 7 | T36-03000200 | IMPELLER ASSY
| 6F5-44352-00
|
| 8 | T36-03000106 | GASKET, OUTER PLATE | 676-44315-A1
|
| 9 | T36-03000105 | OUTER PLATE | 676-44323-40
|
| 10 | T36-03000104 | GASKET, OUTER PLATE | 676-44324-A1
|
| 11 | T36G-03000026 | BASE, DRIVE SHAFT | 676-44341-01
|
| 12 | T36-03000019 | GASKET, DRIVER SHAFT BASE | 676-44316-A1
|
| 13 | F25-04000007 | PIN 4x10 | 93604-10M03
|
| 14 | T36G-03000100L | DRIVE SHAFT ASSY L | 676-45501-10
|
| T36G-03000100S | DRIVE SHAFT ASSY S | 676-45501-00
|
| 15 | T36-03000012 | WOODRUFF KEY | 90280-04M00
|
| 16 | F25-04010003 | OIL SEAL 22x36x6 | 93101-22067
|
| 17 | T36G-03000005 | WASHER, DRIVE SHAFT
| 676-45533-00
|
| 18 | T36G-03000002 | NEEDLE BEARING 1720 | 93315-217U0
|
| 19 | T36G-03000003
| BUSH, NYLON
| 676-45536-00
|
| 20 | T36G-03000004
| NEEDLE BEARING 1516
| 93315-324U1
|
| 21 | T36G-03000006
| WASHER A, BEARING
| 0.00
|
| 22 | T36G-03000007
| FLAT BEARING
| 0.00
|
| 23 | T36G-03000008
| WASHER B, BEARING
| 0.00
|
| 24 | T36G-03000009
| NEEDLE BEARING 503000-18
| 93390-000U0
|
| 25 | T36G-03000010-1
| SHIM T:0.70mm
| 676-45587-00
|
| T36G-03000010-2
| SHIM T:0.75mm
| 676-45587-10
|
| T36G-03000010-3
| SHIM T:0.80mm
| 676-45587-20
|
| T36G-03000010-4
| SHIM T:0.85mm
| 676-45587-30
|
| 26 | T36G-03000011
| PINION
| 6F5-45551-00
|
| 27 | GB/T894.1-16
| CIRCLIP 16
| 93410-16007
|
| 28 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 29 | F4-03000023
| SCREW PLUG
| 90340-08002
|
| 30 | GB/T5783-M6x10
| BOLT M6x10
| 0.00
|
| 31 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 32 | T36G-03000024
| PLATE, BELLOWS
| 650-45321-00
|
| 33 | T36-03000008
| JACKET, WAVE
| 650-44147-00
|
| 34 | T36G-03000400L
| SHIFT CAM SHAFT ASSY L
| 676-44150-10
|
| T36G-03000400S
| SHIFT CAM SHAFT ASSY S
| 676-44150-00
|
| 35 | T36G-03000001
| LOWER CASING
| 6F5-45311-02-4D
|
| 36 | T36-03000017
| BOLT, SHIFT CAM
| 90149-06M00
|
| 37 | T36-03000024
| GASKET, LOCATED
| 90430-06M03
|
| 38 | T36G-03000019
| SEAL, COVER
| 676-45314-00
|
| 39 | F25-04000031
| BOLT, DRAIN
| 688-45341-10
|
| 40 | T36G-03000021
| BOLT M6x25
| 90105-06M01
|
| 41 | T36G-03000020
| COVER, LOWER CASING
| 6F5-45312-01-4D
|
| 42 | T36G-03000029
| FILTER, WATER INLET
| 676-45215-01
|
| 43 | T36G-03000030
| COVER, WATER INLET
| 6F5-45279-01
|
| 44 | GB/T845-ST6.3x24
| SCREW ST6.3x24
| 0.00
|
| 45 | T36G-03000013
| ROLLER BEARING
| 93332-000U0
|
| 46 | T36G-03000014-1
| SHIM T:0.70mm
| 676-45567-00
|
| T36G-03000014-2
| SHIM T:0.80mm
| 676-45567-10
|
| T36G-03000014-3
| SHIM T:0.90mm
| 676-45567-20
|
| T36G-03000014-4
| SHIM T:1.00mm
| 676-45567-30
|
| T36G-03000014-5
| SHIM T:1.10mm
| 676-45567-40
|
| 47 | T36G-03000015
| FORWARD GEAR
| 6F5-45560-00
|
| 48 | T36-03000404
| PLUNGER, SHIFT ROD
| 676-45635-00
|
| 49 | T36-03000403
| SPACER, CLUTCH
| 663-45634-00
|
| 50 | T36-03000402
| SPRING, CLUTCH
| 90501-16M01
|
| 51 | T40-04050005
| RING, CLUTCH
| 663-45633-00
|
| 52 | T36-03000405
| CLUTCH, DOG
| 663-45631-01
|
| 53 | T40-04050004
| PIN, CLUTCH
| 90250-06023
|
| 54 | T36G-03000201
| SHAFT, PROPELLER
| 6F6-45611-00
|
| 55 | T36G-03000200
| PROPELLER SHAFT ASSY
| 0.00
|
| 56 | T36G-03000016
| WASHER, REVERSE GEAR
| 90201-20MA8
|
| 57 | T36G-03000017 | GEAR, REVERSE
| 6F5-45570-00
|
| 58 | T36G-03000018-1
| SHIM T:1.80mm
| 676-45577-00
|
| T36G-03000018-2
| SHIM T:1.90mm
| 676-45577-10
|
| T36G-03000018-3
| SHIM T:2.00mm
| 676-45577-20
|
| | T36G-03000018-4
| SHIM T:2.10mm
| 676-45577-30
|
| 59 | T36G-03000300
| COVER ASSY, LOWER CASING
| 0.00
|
| 60 | GB/T276-6204
| BEARING 6204
| 93306-20401
|
| 61 | F15-06020003
| OIL SEAL 20x30x6
| 93101-20048
|
| 62 | T36G-03000301
| COVER, LOWER CASING
| 676-45361-00-94
|
| 63 | T36G-03000012
| PIN 3.5x9
| 0.00
|
| 64 | GB/T3452.1-56x3.55
| O-RING 56x3.55
| 93210-57M00
|
| 65 | T36G-03000000L
| LOWER CASING ASSY L
| 6F6-45300-12-4D
|
| T36G-03000000S
| LOWER CASING ASSY S
| 6F6-45300-02-4D
|
| 66 | T36G-03010000
| LOWER CASING
| 0.00
|
