ECLIPSE Courtesy Light CL30 - White - Single Color - Eclipse Collection - 60-0479 - 010-04469-00 - Lumishore
- Brand: Lumishore
- Product Code: 010-04469-00
- Availability: In Stock
- $67.57
- Ex Tax: $67.57
ECLIPSE Courtesy Light CL30 - White - Single Color - Eclipse Collection - 60-0479 - 010-04469-00 - Lumishore
Product Description:
ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat.
Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.
Available in single color blue and two other color options.
Measuring 33mm (1.3”) in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush mountable and fit almost anywhere onboard.
| LIGHTING SYSTEM FUNCTIONALITY | |
| Dimming Control | Yes |
| From Momentary Switch (Optional): On/Off Control | Yes |
| From Smart Device/MFD: On/Off Control | Yes |
| Zone Control | Yes |
| Physical Specifications | |
| Construction | Clear PC Body |

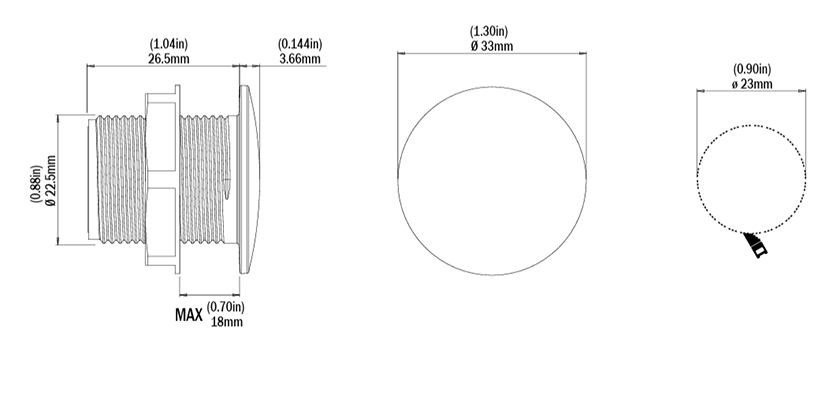

| Front Diamater (Bezel) | 33mm (1.3") |
| Hole Diameter for Fitting | 23.0mm (1.00”) |
| Ingress Protection | IP68 |
| Installation Location | Outdoor / Partially Covered Areas / Indoor |

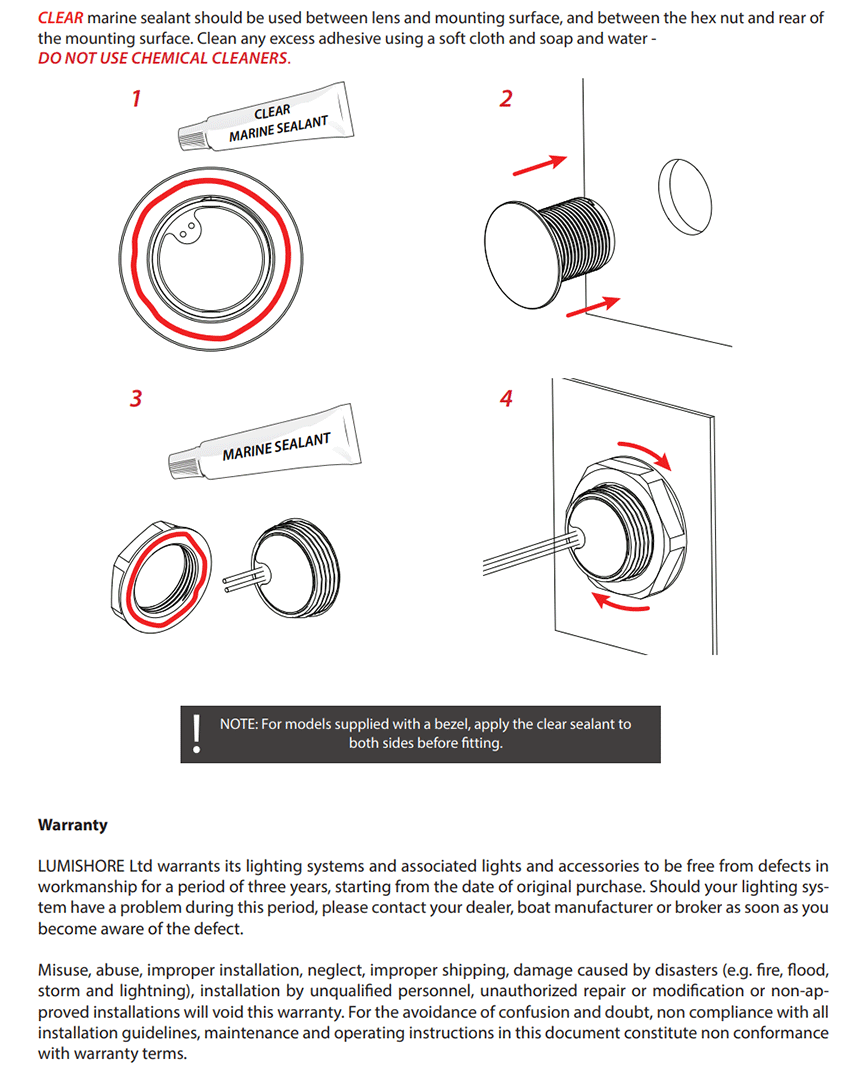

| Mechanical Installation | Bulkhead Panel Mount (with marine adhesive) |
| Profile | 3.66mm (1.44”) |
| Specifications | |
| Available Colours | White (5000 K) |

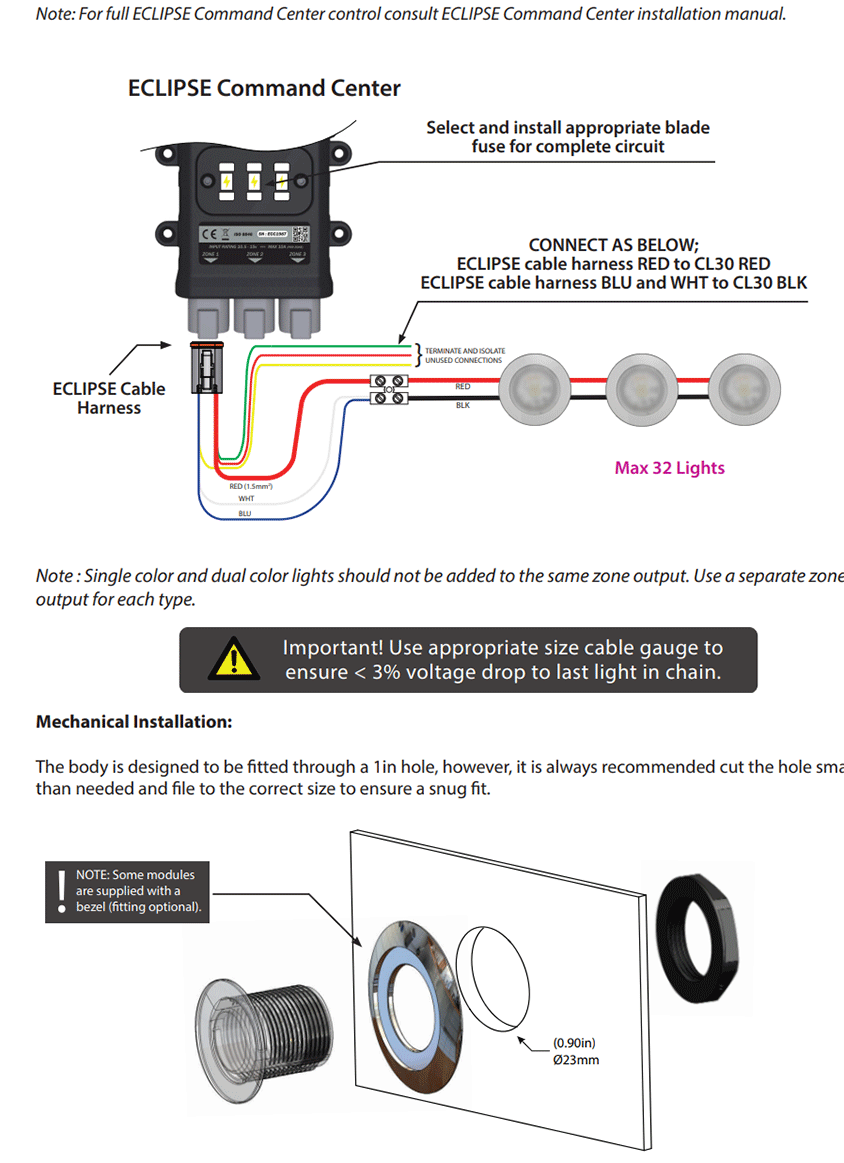

| Customer Control Options | On/Off Switch or ECLIPSE Command Center |
| Depth: | 30.0mm (1.180”) |

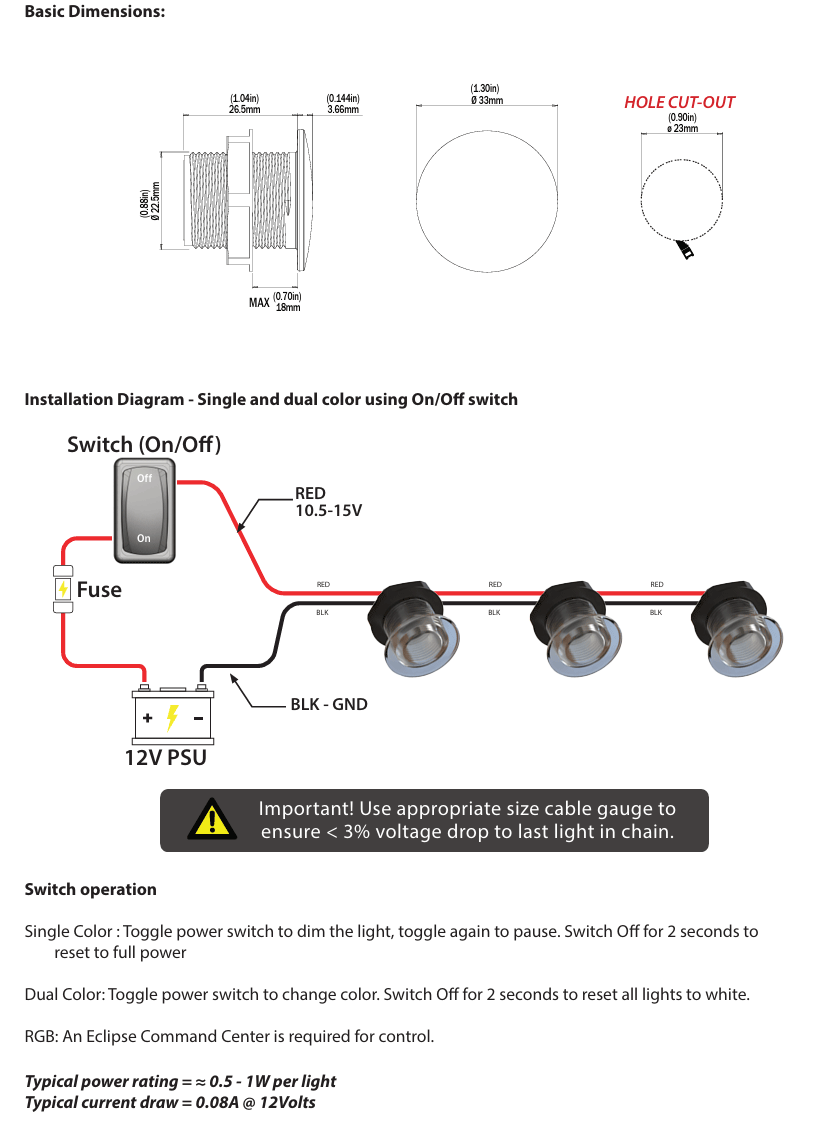

| Electrical Installation | Simple 2 Wire Installation |
| Fixture Lumens | 45 |
| Front Diamater (Bezel): | 33mm (1.3") |
| Hole Diameter for fitting | 23.0mm (1.0") |
| Ingress Protection | IP67 |
| LED Type | 3 x 0.5W White LEDs |
| Max Current Draw (12V DC) | 0.1A |
| Mechanical Installation | Panel Mount |
| Supply Voltage Range | 12V DC Only (10 - 15V DC) |
| Weight,, | 34g (1.2 oz) |
| Technical Features | |
| Auto Power Control | Yes |
| Driver | Internal Driver |
| In Rush Current Protection | Yes |
| ISO 8846 (Ignition Protection) | Yes |
| Low Voltage Protection | Yes |
| Max Current Draw (12V DC) | 0.1A |
| Power Line Noice Suppression | Yes |
| Reverse Polarity Protection | Yes |
| Surge Protection | Yes |
| “Soft Start” Electronics Protection | Yes |
Tags: Marine Lights, waterproof, protection, Warm, White, LED, Lamp, Green, Courtesy Light
