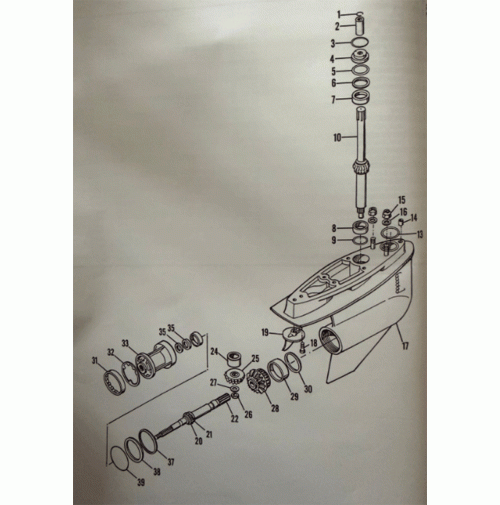

Gearcase For Bravo One Gearcase Components
Reference #
| Description
| SEI#
| OE#
|
| 1 | C-Clip | 98-121-92 | 88242 |
| 2 | Coupling Assembly | 98-121-91K | 88243A3 |
| 3 | O-Ring | 95-121-20 | 25-20826 |
| 4 | Spacer | 98-121-90 | 92916 |
| 5 | Shim Kit (For 93-121-27 Bearing) | 98-121-07K | 23-86749A1 |
| 6 | Tab Washer Drive Shaft | 98-121-17 | 86739 |
| 7 | Bearing, Driveshaft Upper M86649/M86610 | 93-121-27 | 31-86748A1 |
| 8 | Bearing Driveshaft & Propshaft LM67048/LM67010
| 93-121-13
| 66668A1 |
| 9 | Shim Kit (For 93-121-13 Bearing) | 98-121-04K | 92914A1 |
| 10 | Driveshaft | 92-121-04 | 41629A2 |
| 13 | O-Ring | 95-121-03 | 25-822370 |
| 14 | Speedometer Seal .625 O.D. | 94-121-10 | 26-805344 |
| 14 | Speedo Grommet.500 O.D.
| 94-121-10B | 26-36553 |
| 15 | N/A | N/A
| N/A
|
| 16 | N/A
| N/A
| N/A
|
| 17 | Bravo I Lower Case (Single Water Pick Up) W/ Oil Passage | 97-121-20K | 8866A17 |
| 17 | Bravo I Lower Case (Dual Water Pick Up) W/ Oil Passage
| 97-122-20K
| 8866A64
|
| 18 | N/A
| N/A
| N/A
|
| 19 | Trim Plate | 98-102-36A | 31640T6 |
| 20 | Bearing Driveshaft & Propshaft LM67048/LM67010 | 93-121-13 | 66668A1 |
| 21 | Spacer Washer 1 1/4" | 98-121-93 | 90886 |
| 22 | Propshaft | 92-102-05 | 44-850308 |
| 24 | Bearing DD-51471 | 93-121-14 | 86754 |
| 25 | Bravo I Lower Gear Set (15-19) | 91-121-03K | 14063A1 |
| 26 | Pinion Washer (For Bolt Style) | 98-121-37A | 805068 |
| 27 | Pinion Screw
| 98-121-37 | 34353 |
| 28 | See Ref #25 | N/A
| N/A
|
| 29 | Bearing M802048/M802011 | 93-121-15 | 86752A1 |
| 30 | Shim Kit (For 98-121-15 Bearing) | 98-121-05K | 87157A1 |
| 31 | Cover | 97-102-03 | 79448 |
| 32 | Tab Washer | 98-102-42 | 18323 |
| 33 | Bearing Carrier (Bravo I) | 97-121-06K | 818763A10 |
| 35 | Oil Seal (Inside) | 94-108-01 | 14077 |
| 37 | Load Ring | 98-121-94 | 67440T |
| 38 | Thrust Washer (Use With Load Ring) | 98-121-40 | 42256 |
| 39 | O Ring | 95-102-04 | 25-31534 |
| 39 | O Ring
| 95-102-04
| 25-31534
|
| Not Shown | Drain Screw Gasket | 98-102-09 | 12-19183 |
Not Shown
| Plug, Fill And Drain | 98-102-27K | 22-67892A1 |
Not Shown
| Lower Seal Kit Bravo I Only | 95-121-11K | N/A |
