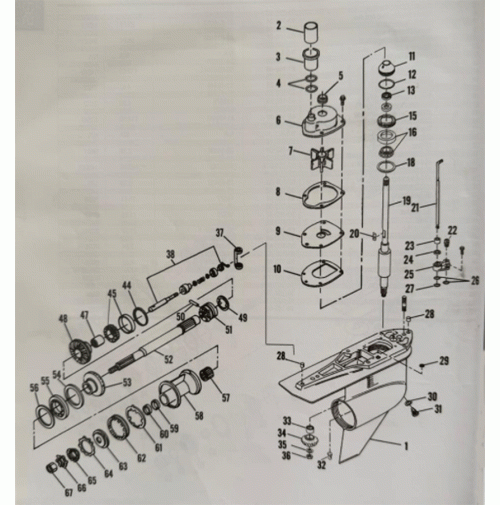

Gearcase For Gen II Lower
| Reference # | Description | SEI# | OE# |
| 1 | Alpha Gen I Lower Case (3.50" O.D. Fwd Bearing) | 97-108-20K | 1623-8951A37 |
| 2 | Guide Tube Sleeve | 96-116-05 | 23-816583 |
| 3 | Coupling Assembly Kit | 96-116-12K
| 816597A1 |
| 4 | O-Ring | 96-116-04
| 21836 |
| 5 | Slinger & Install Tool | 96-116-06K
| 816575A 2 |
| 6 | Pump Housing | 96-116-01K
| 817275A 1 |
| 7 | Impeller | 96-116-03
| 47-43026T 2 |
| 8 | Gasket, Water Pump Upper | 95-116-11
| 27-817277 1 |
| 9 | Water Pump Base Plate | 96-116-02
| 817276 1 |
| 10 | Gasket, Water Pump Base | 95-116-02 | 27-43033 1 |
| 11 | Carrier Assembly | 96-116-10K | 807929A 1 |
| 12 | O-Ring MR/Alpha I | 95-108-01 | 25-90011 |
| 13 | Oil Seal | 94-116-07 | 66302 |
| 15 | Retainer | 98-102-17 | 824519 1 |
| 16 | Tapered Roller Bearing MR/Alpha I | 93-102-13 | 36387A 1 |
| 18 | Shim Set (For 93-102-13 Bearing) | 98-106-04K | 15-42637A1 |
| 19 | Driveshaft Gen II (All Ratio's) (OK999999 & Down) | 92-116-04G | 45-816919 |
| 20 | Water Pump Key Gen II | 98-116-22 | 28-43037 |
| 21 | Lower Shift Shaft Gen II | 92-116-06 | 815919A1 |
| 22 | Speedometer Fitting | N/A | N/A
|
| 23 | Rubber Sleeve | 98-116-24 | 23-67370 |
| 24 | Seal, Shift Shaft | - | 26-816464 1 |
| 25 | Shift Bushing | 98-116-05K | 23-815921A21 |
| 26 | O-Ring | 95-116-03 | 36318 |
| 27 | Clip, Shift Rod | 98-102-26 | 53-29641 |
| 28 | Dowel Pin, Case Alignment (Solid) | 98-116-63 | 17-43044 |
| 29 | Oil Seal (8X11X1.75) | 94-102-04 | 26-45577 1 |
| 30 | Drain Screw Gasket | 98-102-09 | 12-19183 |
| 31 | Plug, Fill And Drain | 98-102-27K | 22-67892A1 |
| 32 | Shift Crank Pin | N/A | N/A
|
| 33 | Pinion Bearing, V6 Case | 93-102-14 | 31-42647A1 |
| 34 | Complete Lower Housing Gear Set (3.500 O.D.) | 91-104-03K | 43-878087A4 |
| 34 | Complete Lower Housing Gear Set (3.265 O.D.)
| 91-104-03KS
| 828072A3 + 828073A1 |
| 34 | Alpha Gearest (2.00/2.40) (3.500 O.D.) | 91-108-09K | 13730A1 |
| 34 | Alpha Gearest (2.00/2.40) (3.265 O.D.)
| 91-108-09KS | 853592A2 + 853593A1 |
| 35 | Washer, Pinion Nut | 98-102-41 | 92721 |
| 36 | Nut, Pinion To Driveshaft | 98-102-37 | 11-35921 |
| 37 | Shift Crank | 97-102-05 | 76865 |
| 38 | Shift Spool
| 92-106-10 | 818349T1 |
| 44 | Shift Set (For 93-102-15 Bearing)
| 98-106-05K | 15-47397A1 |
| 45 | Fwd. Bearing, LRG OD / SML ID | 93-102-15 | 31-828437A2 |
| 45 | Fwd. Bearing, SML OD / LRG ID
| 93-102-15A | 31-828439A2
|
| 47 | Bearing, Inner Forward Gear | 93-102-16 | 31-30895T |
| 48 | See Ref #34 | N.S.S. | N/A |
| 49 | Spring, Clutch Dog | 98-102-38 | 24-30893 |
| 50 | Cross Pin | 98-102-39 | 17-30632 |
| 51 | Clutch | 91-102-06 | 52-853594T |
| 52 | Propshaft | 92-102-05 | 44-850308 |
| 53 | See Ref #34 | N.S.S.
| N/A
|
| 54 | Thrust Ring | 98-102-40 | 68100 1 |
| 55 | Bearing, Reverse Gear | 93-102-11 | 30-88957T |
| 56 | O-Ring | 95-102-04 | 25-31534 |
| 57 | Bearing, Propshaft | 93-102-12 | 31-30956T |
| 58 | Bearing Carrier Assembly (Alpha I and Gen II) | 97-102-06K | 73020A14 |
| 59 | Oil Seal (Inside) | 94-108-01 | 14077 |
| 60 | Oil Seal (Outside)
| 94-102-06 | 26-12224 |
| 61 | Tab Washer | 98-102-42 | 18323 |
| 62 | Cover | 97-102-03 | 79448 |
| 63 | Thrust Hub | 98-106-43 | 12-835467 1 |
| 64 | Lockwasher | 98-102-44 | 13-42351 1 |
| 65 | Receiver | 98-102-45 | 12-31211A3 |
| 66 | Tab Washer | 98-102-47 | 14-816629 |
| 67 | Propeller Nut | 98-102-48 | 11-827614 |
| Not Shown | Trim Plate | 98-102-36A | 31640T6 |
Not Shown
| 3/8 External Lock Washer S/S | 98-116-72 | 35479 |
Not Shown
| Screw (3/8-16 X 1 In.) | 98-116-35 | 10-65210 |
Not Shown
| Anode | 98-102-36 | 31640Q4 |
Not Shown
| Gen II Impeller Kit | 96-116-03K | N/A |
Not Shown
| Pump Housing | 96-116-01K | 817275A1 |
Not Shown
| Lower Seal Kit Gen II | 95-116-11K | 26-816575A3 |
Not Shown
| 6MM Lock Washer (Use W/98-116-19 Screw) | 98-116-19LW | N/A |
