Transom Assembly For Alpha One Gen I Bell Housing
- Brand: Mercruiser
- Product Code: Transom Assembly For Alpha One Gen I Bell Housing
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

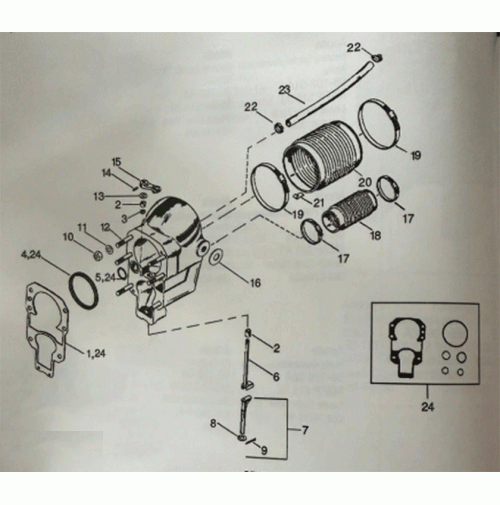

Transom Assembly For Alpha One Gen I Bell Housing
| Reference # | Description | SEI# | OE# |
| 1 | Gasket | 95-104-01A | 27-94996A1 |
| 2 | Bushing And Seal Kit | 9D-106-24K | 23-805041A2 |
| 3 | Seal, Shift Shaft | 94-116-03 | 26-816464 1 |
| 4 | Square O-Ring | 95-106-01B | 27-35982 |
| 5 | O-Ring, Water Passage | 95-106-01C | 25-33504 |
| 6 | Shaft Assy | 9D-106-30 | 45589A3 |
| 7 | Intermediate Shift Shaft Install Kit | 98-102-03K | 62104 1 |
| 8 | Washer | 98-102-60 | 12-32666 |
| 9 | 3/32 X 1 Cotter Pin | 98-102-61 | 18-32665 |
| 10 | Locknut 7/16-20 | 98-102-12 | 11-859116 |
| 11 | Washer | 98-116-74 | 12-35935 |
| 12 | Stud (.437-14/.437-14 X 2.812) | 9D-116-26 | 16-59579 |
| 13 | Washer | 9D-116-28 | 12-39116 |
| 14 | Screw (.250-28) | 9D-116-29 | 10-45590 |
| 15 | Upper Lever Assembly | 9D-116-27 | 45518A3 |
| 16 | Synthane Washer 21MM I.D. | 9D-116-25 | 72498 |
| 17 | Exhaust Bellow Clamp | 9A-108-08 | 815504348 |
| 18 | Exhaust Bellows | 9A-108-03K | 18654A1 |
| Not Shown | Exhaust Tube | 9A-108-04TK | 78458A1 |
| 19 | U-Joint Bellow Clamp | 9A-108-07 | 815504372 |
| 20 | U-Joint Bellow | 9A-108-02K | 60932A4 |
| 21 | Clip (Not Available Separately) | N/A | 54-86049 |
| 22 | Water Hose Clamp | 9A-108-09 | 54-815504412 |
| 23 | 3/4" Water Hose | 9A-108-05 | 32-41725 |
| 23 | 5/8" Water Hose | 9A-108-06 | 32-32461 |
| 24 | Bell Housing Gasket Set | 95-106-01 | 94996Q2 |
