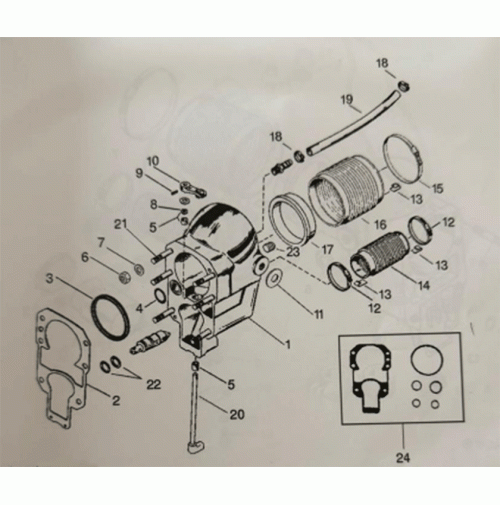

Transom Assembly For Alpha One Gen II Bell Housing

Reference #	Description	SEI#	OE#
1	Bell Housing	9D-116-01	806031A 2
2	Gasket	95-104-01A	27-94996A1
3	Square O-Ring	95-106-01B	27-35982
4	O-Ring, Water Passage	95-106-01C	25-33504
5	Bushing And Seal Kit	9D-106-24K	23-805041A2
5	Bushing Kit	9D-116-24K	23-806036A1
6	Locknut 7/16-20	98-102-12	11-859116
7	Washer	98-116-74	12-35935
8	Washer	9D-116-28	12-39116

9	Screw (.250-28)	9D-116-29	10-45590
10	Upper Lever Assembly	9D-116-27	45518A3
11	Washer (Synthane)	9D-116-25	12-72498
12	Exhaust Bellow Clamp	9A-108-08	815504348
13	Clip (Not Available Separately)	N/A	N/A
14	Exhaust Bellows	9A-108-03K	18654A1
15	U-Joint Bellow Clamp	9A-108-07	815504372
16	U-Joint Bellows	9A-116-02K	816431A1
17	Gimbal Repair Sleeve	9A-116-12	816607
18	Water Hose Clamp	9A-108-09	54-815504412

19	3/4" Water Hose	9A-108-06	32-41725
20	Shift Shaft	9D-116-30	816685
21	Stud. (.437-14/.437-14 X 2.812)	9D-116-26	16-59579
22	O-Ring	9D-116-32	25-48171
23	Brass Plug	9D-116-17	22-32802
24	Bell Housing Gasket Set	95-106-01	94996Q2
