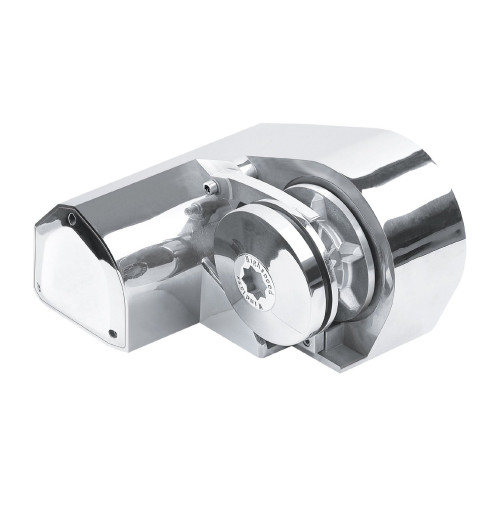

S Series Windlass - Above Deck model - 600Watts - with Gipsy 6mm - BA-S612-6 - ASM:
> Suitable for boats from 20 ft to 35 ft
> New lightweight powerful and compact windlasses for above-deck mounting.
> Made especially for the rigid conditions of the sea.
> A perfect choice for boaters with limited space underneath the deck or with a deck thickness above 50 mm (2") thick because the whole windlass mounts above the boat's deck, as opposed to some of it being concealed under the deck.
> Stainless steel high polished steel AISI316L.
> Works with chain only or rope/chain combinations.

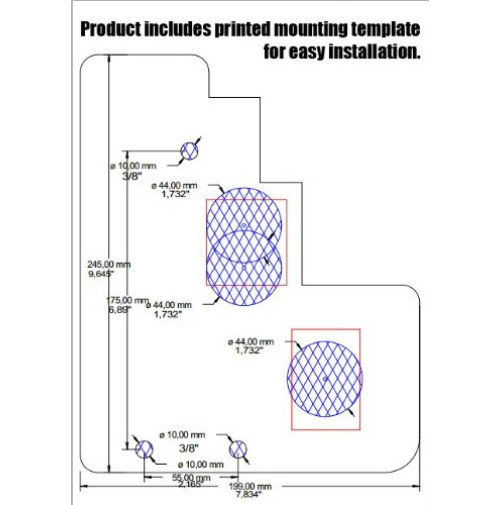

> Easy to install.
> High Speed Windlass
| Motor | Voltage | Current Draw (A) | Maximum Working Load (Kgs/lbs) | Maximum Power Pull (Kgs/lbs) | Drop Speed Chain | Weights | Gipsy Size |
| 600W | 12V | 20 | 18Kgs/400 Lbs
| 540Kgs/1200 Lbs | ( 35 meter/minutes) (115 Feet/Minutes) | 14Kilo 31Lbs | Chain Din 766 - 6mm Rope 12mm |
IN THE BOX:
> Solenoid 90503
> Circuit Breaker 90060
> Switch Panel 90801
> Foot Switch 90900B
| Windlass |
| Alt. 1 - Chain/Rope |
6 mm DIN 766 |
| Alt. 2 - Chain/rope |
7 mm HT G4 |
| Current Draw |
20 |
| Drop Speed: |
35m / 115 ft |
| Max Power Pull: |
540 kgs / 1200lbs |
| Max Working Load: |
18 kgs / 400 lbs |
| Motor: |
600 watt |
| Rope Alt. 1 and 2 |
12 mm - 1/2' |
| Rope Alt. 2 |
14mm - 9/16" line |
| Voltage: |
Available in 12 volt |
| Weight: |
13 kgs - 28,7 lbs |
