UPPER CASING - 4 Strok For F8F9.8
- Brand: Yamaha
- Product Code: UPPER CASING - 4 Strok For F8F9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

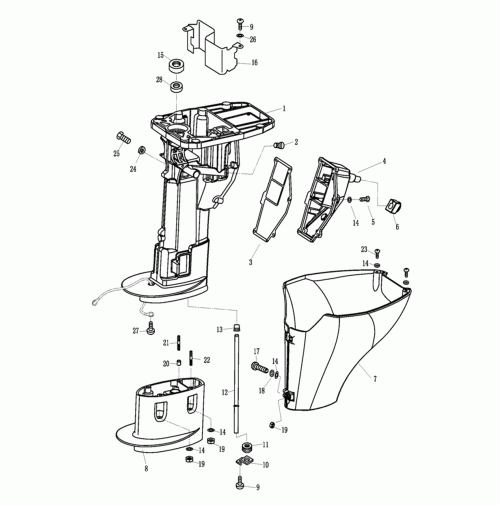

UPPER CASING - 4 Strok For F8F9.8
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F8-02000001 | UPPER CASING | |
| 2 | F15-07010004 | JAM 1/8 | |
| 3 | F8-02000004 | GASKET, EXHAUST COVER | |
| 4 | F8-02000005 | COVER, EXHAUST | |
| 5 | GB/T5783-M6X20 | BOLT M6x20 | |
| 6 | F8-02000010 | JACKET, EXHAUST COVER | |
| 7 | F8-00000006 | COVER, UPPER CASING | |
| 8 | F8-02010001 | EXTENSION | |
| 9 | GB/T818-M5X10 | SCREW M5x10 | 97980-05310 |
| 10 | F8-02000009 | PLATE, WATER TUBE | |
| 11 | F8-02000008 | SEAL, WATER TUBE | |
| 12 | F8-02000006L | WATER TUBE L | |
| F8-02000006S | WATER TUBE S | ||
| 13 | F8-02000007 | SEAL, WATER TUBE | |
| 14 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 15 | F8-02000002 | OIL SEAL 12.1x28x5 | |
| 16 | F8-02000003 | CLAPBOARD, OIL SUMP | |
| 17 | GB/T818-M6X35 | SCREW M6x35 | |
| 18 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 19 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 20 | F8-00000005 | HOLLOW PIN | |
| 21 | F8-02000011 | BOLT STUD M6x23 | |
| 22 | F8-02000012 | BOLT STUD M6x28 | 90116-06M17 |
| 23 | GB/T818-M6X16 | SCREW M6x16 | 90159-06M11 |
| 24 | F15-04000003 | GASKET, DRAIN BOLT | 90430-14M09 |
| 25 | F15-04000002 | BOLT, DRAIN | 90340-14M00 |
| 26 | GB/T93-5 | WASHER, SPRING 5 | |
| 27 | GB/T818-M6X8 | SCREW M6x8 | |
| 28 | F8-02000013 | GUIDE SLEEVE |
