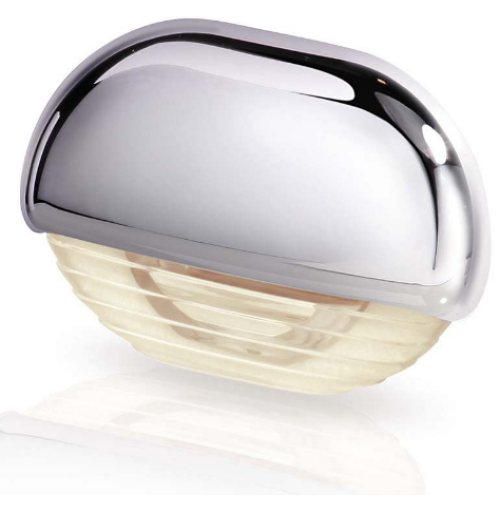

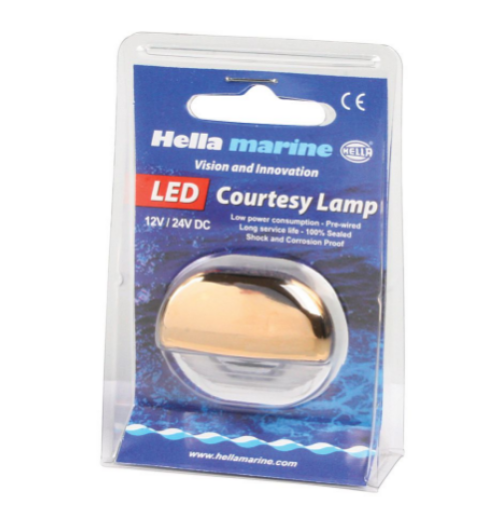

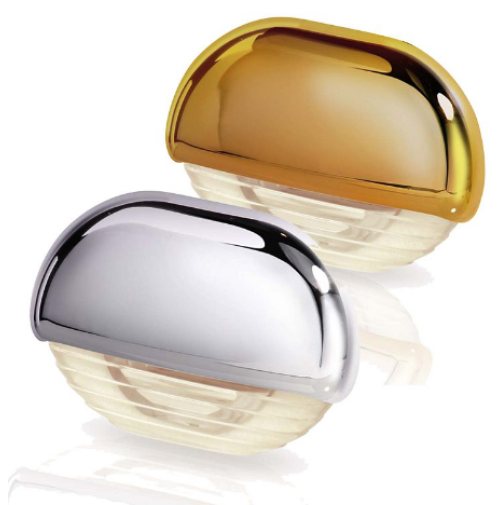

Warm White LED Easy Fit Step Lamp:
Series: 8560 Easy Fit
Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

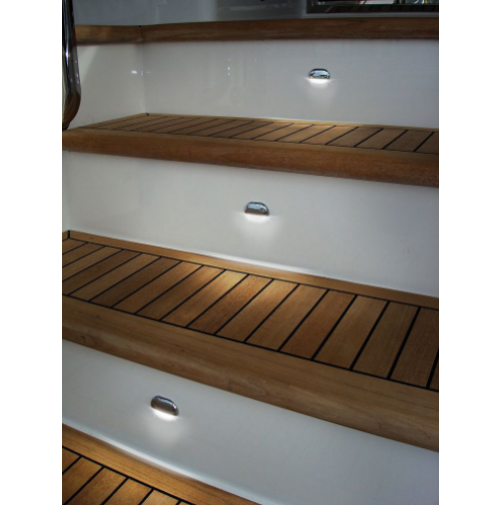

Light is radiated downward at an angle of 30° making these lamps ideal for illuminating on board areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs and switches.
Dualvolt electronics ensure constant light output in 12V or 24V DC systems.
Easy Fit series lamps are completely sealed, shock and vibration resistant and represent reliable ‘fit and forget’ technology.

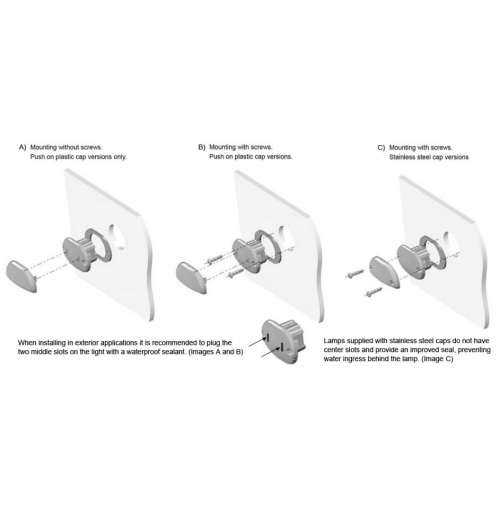

Each lamp is pre-wired with 120mm of marine tinned cable and supplied with stainless steel screws.

Hella Marine |
Approvals |
CE |
Cable |
Pre-wired with 120mm of twin core marine cable |
Cap Material |
Black, white, chrome plated plastic, polished 316 stainless steel |
Degree of Protection |
IP 67 - Completely Sealed |
Lens Material |
UV resistant enhanced impact acrylic |
Operating Voltage |
Dualvolt 12 / 24V DC
|
Power Consumption |
0.5W ( < 0.04A@12V / < 0.02A@24V )
|
Weight, |
Stainless Cap - 30g (including cable). Plastic Cap - 15g (including cable) |
