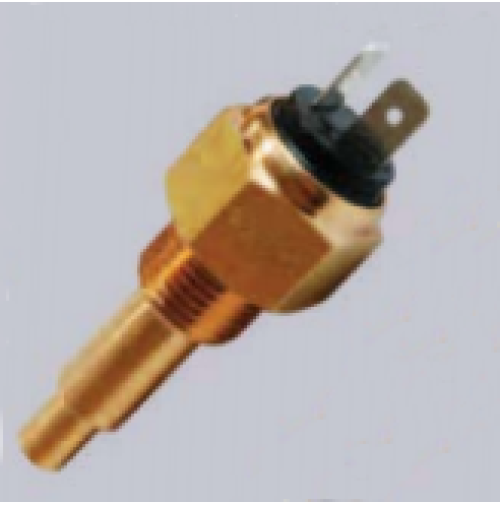

Water Temperature sensor - SWA-3 - Thread - 1/2”-14NPT:
♦ Widely used in vehicle, marine engine,Generator set,and more
♦ Has temperature detection and alarm function
♦ Compatible with many other major gauge brands. This allows the customers to easily exchange parts
♦ Various product specifications for options,
♦ Customized according to customer requirement.
♦ Material: brass
♦ Rated voltage: 6V~24V
♦ Temperature response time: Minimum 3 minutes after power supply electrified.
♦ Rated power for alarm switch: 1.2W~3W
♦ The temperature alarm tolerance: ±3℃
♦ Type of alarm touch: The switch turns off when the temperature rises.
♦ Protection rank: IP67
Code
| Product Name
| Temperature Max(℃)
| Alarm Temp.(℃)
| Thread Spec.
| Ømm
| L1(mm)
| L2(mm)
| Type
|
KE00131
| SWA-3 | 120
| 103 | 1/2”-14NPT
| 10.7 | 41 | 73.7 | III
|
