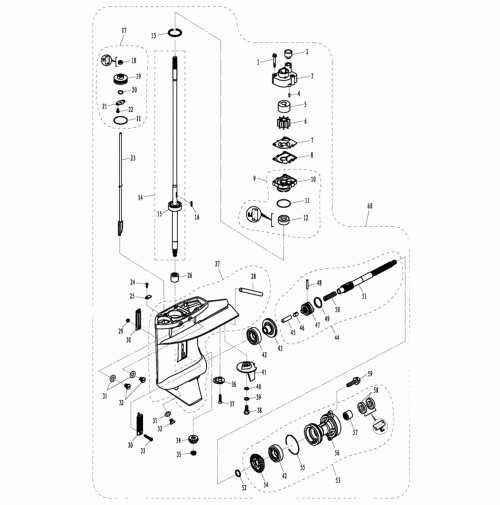

LOWER CASING & DRIVE 1 - 2 Strock for T18
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | GB/T9074.14-M6x55
| BOLT M6x55
|
|
| 2 | T18-04000303
| BUSH,WATER PUMP
| 350-65014-0
|
| 3 | T18-04000301
| HOUSING,WATER PUMP
| 350-65016-1
|
| 4 | F25-04000007
| PIN 4x10
| 93604-10M03
|
| 5 | T18-04000302
| INNER SHELL,WATER PUMP
| 350-65011-1
|
| 6 | T18-04000200
| IMPELLER,WATER PUMP
| 334-65021-0
|
| 7 | T18-04000005
| OUTER PLATE
| 350-65025-0
|
| 8 | T18-04000006
| GASKET,OUTER PLATE
| 3FS-65029-0
|
| 9 | T18-04020000
| BASE ASSY,DRIVE SHAFT
|
|
| 10 | T18-04020001
| BASE,DRIVE SHAFT
| 3BJ-65017-0
|
| 11 | GB/T3452.1-3.55x35
| O-RING 3.55x35
| 336-62415-0
|
| 12 | T18-04020002
| OIL SEAL 13.8x26x9.5
| 332-60223-0
|
| 13 | F20-04000005E-3
| SHIM 0.3mm
| 346-64083-0
|
| 14 | T18-04010000L
| DRIVE SHAFT ASSY L
| 350-64302-0
|
| T18-04010000S
| DRIVE SHAFT ASSY S
| 350-64301-0
|
15
| GB/T276-6302
| BEARING 6302
| 9601-0-6302
|
| 16 | T18-04000007
| WOODRUFF KEYF
| 350-65022-0
|
| 17 | T18-04000400
| COVER PLATE ASSY,SHIFTING CAM
|
|
| 18 | T18-04000402
| OIL SEAL 6x12x3
|
|
| 19 | T18-04000401
| COVER PLATE,SHIFTING CAM
| |
| 20 | F15-06020004
| O-RING
| 93210-06ME6
|
| 21 | T18-04000404
| PLATE,O-RING
|
|
| 22 | GB/T818-M5x6
| SCREW M5x6
| 0.00
|
| 23 | T18-04030000L
| SHIFT CAM SHAFT ASSY L
|
|
| T18-04030000S
| SHIFT CAM SHAFT ASSY S
|
|
24
| GB/T5783-M5x10
| BOLT M5x10
| 0.00
|
| 25 | T18-04000403
| PLATE
| 332-66033-0
|
| 26 | IKO-TA1620Z
| NEEDLE BEARING TA1620Z
| 350-60221-0
|
| 27 | T18-04000010
| LOWER CASING ASSY
| 3V9Q60000-1
|
| 28 | T18-04000012
| WATER PIPE B
| |
| 29 | GB/T889.1-M4
| LOCKNUT M4
| 0.00
|
| 30 | F20-04000002E
| WATER INLET
| 0.00
|
| 31 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 32 | F4-03000023
| SCREW PLUG
| 90340-08002
|
| 33 | GB/T818-M4x30
| SCREW M4x30
| 0.00
|
| 34 | F20-04000007E
| PINION
|
|
| F20-04000007E
| PINION
| 350-64020-0
|
| 35 | T18-04000003
| NUT,PINION
| 346-64027-1
|
| 36 | T5-03000016
| WATER INLET
| 369-60206-0
|
| 37 | GB/T820-M6x20
| SCREW M6x20
| 0.00
|
| 38 | GB/T5783-M6x20
| BOLT M6x20
| 0.00
|
| 39 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 40 | GB/T861.1-6
| LOCKING WASHER 6
|
|
| 41 | F20-04000003E
| ANODE
| 3V1-60217-0
|
| 42 | GB/T276-6205C3
| BEARING 6205C3
| 93306-205YD
|
| 43 | F20-04000100E
| FORWARD GEAR ASSY
| 350-64010-0
|
| T18-04000100
| FORWARD GEAR ASSY
|
|
| 44 | T18-04040000
| PROPELLER SHAFT ASSY
|
|
| 45 | T18-04040006
| PLUNGER,SHIFT ROD
| 350-64223-1
|
| 46 | T18-04040007
| BEARER,PLUNGER
| 350-64222-1
|
| 47 | T18-04040003
| CLUTCH,DOG
| 362-64215-0
|
| 48 | T18-04040004
| PIN,CLUTCH
| 350-64218-0
|
| 49 | T18-04040005
| RING,CLUTCH
| 350-64219-0
|
| 50 | T18-04040002
| SPRING,CLUTCH
| 332-64221-0
|
| 51 | T18-04040001
| SHAFT,PROPELLER
| 362-64211-2
|
| 52 | F15-06070007
| WASHER, REVERSE GEAR
| 350-64032-0
|
| 53 | T18-04050000A
| COVER ASSY, UPPER CASING
|
|
| T18-04050000B
| COVER ASSY, UPPER CASING
|
|
| 54 | F20-04060003E
| GEAR, REVERSE
| 362-64030-0
|
| | T18-04050001
| GEAR,REVERSE
| |
| 55 | F20-04060002E
| O-RING 60.2x2.4
| 121-32071-0
|
| 56 | T18-04050002
| COVER, LOWER CASING
| 3BKQ60101-1
|
| 57 | IKO-TAI1720Z
| NEEDLE BEARING 1720
| 362-60211-0
|
| 58 | F15-06080004
| OIL SEAL 17x30x6
|
|
| 59 | GB/T9074.14-M6x20
| BOLT M6x20
| 3BJ-60108-0
|
| 60 | T18-04070000L-A
| LOWER CASING UNIT
|
|
| T18-04070000S-A
| LOWER CASING UNIT
|
|
| T18-04070000L-B
| LOWER CASING UNIT
|
|
| T18-04070000S-B
| LOWER CASING UNIT
|
|
