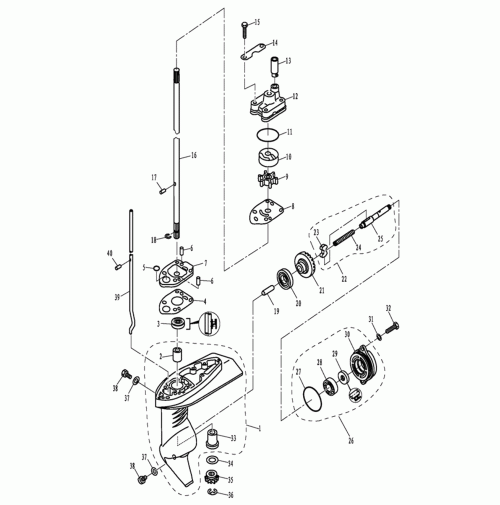

LOWER CASING & DRIVE 1 - 2 Strocks For TC3.6
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | F2.6-03030000
| LOWER CASING ASSY
| 0.00
|
| 2 | F2.6-03000003
| BARREL BEARING
| 6L5-45316-09
|
| 3 | F2.6-03000004
| OIL SEAL 9.8x24x9 | 93103-09M41 |
| 4 | F2.6-03000007
| GASKET, WATER PUMP BASE
| 69M-G5315-A0
|
| 5 | F2.6-03000009
| O-RING 4.9X3.5
| 6L2-44147-00
|
| 6 | F4-03000013
| PIN 4x18
| 93604-18080
|
| 7 | F2.6-03000008
| BASE, WATER PUMP
| 69M-G5321-00-94 |
| 8 | F2.6-03000010
| OUTER PLATE
| 69M-G4323-00
|
| 9 | F2.6-03000100
| IMPELLER ASSY
| 6L5-44352-00
|
| 10 | F2.6-03000015
| INSERT COVER, WATER PUMP
| 6L5-44322-00
|
| 11 | JASO-F404-19-033
| O-RING
| 0.00
|
| 12 | F2.6-03000014
| HOUSING, WATER PUMP
| 69M-G4311-00
|
| 13 | F4-03000021
| RUBBER TUBE, WATER PUMP
| 67D-44366-00
|
| 14 | F2.6-03000016
| FIXED PLATE, WATER PUMP
| 69M-G4328-00
|
| 15 | GB/T5782-M6X40
| BOLT M6x40
| 0.00
|
| 16 | TC3.6-03000001L
| DRIVE SHAFT L
| 0.00
|
| TC3.6-03000001S
| DRIVE SHAFT S
| 0.00
|
| 17 | F2.6-03000013
| PIN, IMPELLER 3.5X7
| 93604-07M13
|
| 18 | F2.6-03000012
| CIRCLIP
| 93440-08819
|
| 19 | F2.6-03000020
| PLUNGER, SHIFT ROD
| 69M-G5635-00
|
| 20 | GB/T276-16003/P63
| BALL BEARING
| 0.00
|
| 21 | F2.6-03000019
| FORWARD GEAR ASSY
| 6L5-45560-00
|
| 22 | TC3.6-03000200
| PROPELLER SHAFT ASSY
| 0.00
|
| 23 | F2.6-03000202
| SPACER, CLUTCH
| 6L5-45631-00
|
| 24 | F4-03030003
| RING, CLUTCH
| 67D-45560-00
|
| 25 | TC3.6-03000201
| SHAFT, PROPELLER
| 0.00
|
| 26 | TC3.6-03000300
| COVER ASSY, LOWER CASING
| 0.00
|
| 27 | JISB-2401-P48
| O-RING 47.1x3.5
| 0.00
|
| 28 | GB/T276-6001C2
| BEARING 6001C2
| 0.00
|
| 29 | F8-04000101
| OIL SEAL 12.1x24x8
| 0.00
|
| 30 | TC3.6-03000301
| COVER, LOWER CASING
| 0.00
|
| 31 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 32 | GB/T5783-M6X16
| BOLT M6x16
| 0.00
|
| 33 | F2.6-03000002
| BARREL BEARING WITH FLANGE
| 6L5-45317-09
|
| 34 | F2.6-03000017
| SHIM T:2.00mm
| 6L5-45533-00-20
|
| 35 | F2.6-03000018
| PINION
| 6L5-45551-00
|
| 36 | GB/T896-6
| CIRCLIP 6
| 0.00
|
| 37 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 38 | F4-03000023
| SCREW PLUG
| 90340-08002
|
| 39 | F2.6-03000005L
| SHIFT CAMSHAFT L
| 0.00
|
| F2.6-03000005S
| SHIFT CAMSHAFT S
| 0.00
|
| 40 | GB/T879.3-1.5x14
| PIN 2.5x14
| 0.00
|
