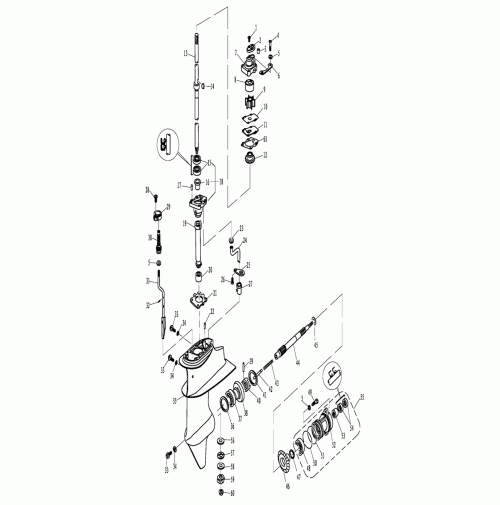

LOWER CASING & DRIVE 1- 2 Strock for TE9.9 TE15
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | GB/T845-ST4.2x12
| SCREW ST4.2x22
| 0.00
|
| 2 | TE15-04000014
| PLASTIC COVER
| 682-44312-00
|
| 3 | TE15-04000013
| SEAL, WATER TUBE
| 682-44365-00
|
| 4 | GB/T5782-M6x45
| BOLT M6x45
| 0.00
|
| 5 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 6 | TE15-04000015
| PLATE, WATER PUMP
| 682-44328-00
|
| 7 | TE15-04000012
| HOUSING, WATER PUMP
| 682-44311-00
|
| 8 | TE15-04000011
| INSERT COVER, WATER PUMP
| 682-44322-41
|
| 9 | TE15-04000200
| IMPELLER ASSY
| 682-44352-03
|
| 10 | TE15-04000007
| GASKET, OUTER PLATE
| 682-44315-A0
|
| 11 | TE15-04000009
| OUTER PLATE
| 682-44323-40
|
| 12 | TE15-04000008
| COVER, OIL SEAL
| 682-45344-00
|
| 13 | TE15-04000300L
| DRIVE SHAFT ASSY L
| 6B4-45501-10
|
| TE15-04000300S
| DRIVE SHAFT ASSY S
| 6B4-45501-00
|
14
| F15-06000013
| WOODRUFF KEY
| 63V-44338-00
|
15
| F15-06020003
| OIL SEAL 20x30x6
| 93101-20048
|
16
| F15-06020002
| BARREL BEARING WITH FLANGE
| 90381-14020
|
17
| F15-00000006
| PIN 6x12
| 93606-12019
|
18
| TE15-04010000
| BASE, DRIVE SHAFT
| 6E7-45331-00-CA
|
| 19 | TE15-04000002
| BUSH, NYLON
| 6E7-45536-00
|
| 20 | NSK-F1420 | NEEDLE BEARING 1420
| 0.00
|
| 21 | TE15-04010002
| GASKET, DRIVER SHAFT BASE
| 683-45315-A0
|
| 22 | F25-04000007
| PIN 4x10
| 93604-10M03
|
| 23 | TE15-04010004
| SEAL, WATER TUBE
| 683-44365-01
|
| 24 | TE15-04010003
| HOSE B
| 683-44362-01
|
| 25 | TE15-04010005
| PLATE, WATER TUBE
| 683-44373-00
|
| 26 | GB/T5783-M6x10
| BOLT M6x10
| 0.00
|
| 27 | TE15-04000003
| SEAL, WATER TUBE
| 6E7-44366-00
|
| 28 | GB/T845-ST4.8x10
| SCREW ST4.8x10
| 0.00
|
| 29 | TE15-04000006
| PLATE, NOZZLE
| 682-44176-00
|
| 30 | TE15-04000004
| JACKET, BELLOWS
| 6B4-44147-00
|
| 31 | TE15-04000100L
| SHIFT CAM SHAFT ASSY L
| 6B4-44150-10
|
| TE15-04000100S
| SHIFT CAM SHAFT ASSY S
| 6B4-44150-00
|
| 32 | GB/T879.4-2.5x10
| PIN 2.5x10
| 0.00
|
| 33 | F4-03000023
| SCREW PLUG
| 90340-08002
|
| 34 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 35 | TE15-04000001
| LOWER CASING
| 6E8-45311-01-4D
|
| 36 | F15-06000010-1
| SHIM T:0.10mm
| 664-45567-01
|
| F15-06000010-5
| SHIM T:0.30mm
| 664-45567-40
|
| | F15-06000010-6
| SHIM T:0.40mm
| 664-45567-50
|
| F15-06000010-7
| SHIM T:0.50mm
| 664-45567-60
|
| 37 | 664-45567-60
| ROLLER BEARING
| 93332-00005
|
| 38 | F15-06010000
| FORWARD GEAR ASSY
| 6E7-45560-00
|
| 39 | F15-06070004
| PIN, CLUTCH
| 90250-05010
|
| 40 | F15-06070003
| CLUTCH, DOG
| 682-45631-01
|
| 41 | F15-06070005
| RING, CLUTCH
| 648-45633-00
|
| 42 | F15-06070006
| PLUNGER, SHIFT ROD
| 650-45635-00
|
| 43 | F15-06070002
| SPRING, CLUTCH
| 90501-14M06
|
| 44 | F15-06070001
| SHAFT, PROPELLER
| 683-45611-00
|
| 45 | F15-06070007
| WASHER, REVERSE GEAR
| 90201-17682
|
| 46 | F15-06080005
| GEAR, REVERSE
| 6E7-45571-00
|
| 47 | F15-06080006-1
| SHIM T:0.10mm
| 626-45577-00
|
| F15-06080006-2
| SHIM T:0.20mm
| 626-45577-10
|
| F15-06080006-3
| SHIM T:0.30mm
| 626-45577-20
|
| F15-06080006-4
| SHIM T:0.40mm
| 626-45577-30
|
| F15-06080006-5
| SHIM T:0.50mm
| 626-45577-40
|
| 48 | GB/T276-6005
| BEARING 6005
| 93306-00501
|
| 49 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 50 | F15-06080002
| O-RING A
| 93210-57M09
|
| 51 | F15-06080003
| O-RING B
| 93210-56M80
|
| 52 | F15-06080001
| COVER, LOWER CASING
| 683-45361-01-4D
|
| 53 | NSK-F1712
| NEEDLE BEARING 1712
| 93315-317U2
|
| 54 | F15-06080004
| OIL SEAL 17x30x6
| 93101-17054
|
| 55 | F15-06080000
| COVER ASSY, LOWER CASING
| 0.00
|
| 56 | F15-06000020-1
| WASHER, BEARING
| 90201-15017
|
| 57 | TE15-04000018
| WASHER, PINION
| 90209-14011
|
| 58 | F15-06000009
| SHIM T:1.20mm
| 0.00
|
| 59 | F15-06000011
| PINION
| 63V-45551-00
|
| 60 | F15-06000012
| NUT, PINION M8X1
| 90179-08M06
|
| 61 | TE15-04000010
| GASKET, OUTER PLATE
| 0.00
|
