2 STROKE - T25/30A - Carburetor Assembly - 69S-14301-00 - T20-06000700 - Parsun
- Brand: ASM
- Product Code: T20-06000700
- Availability: In Stock
- $135.14
- Ex Tax: $135.14

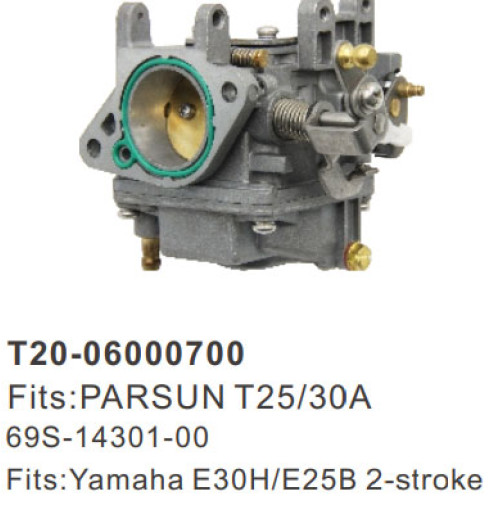

2 STROKE - T25/30A - Carburetor Assembly - 69S-14301-00 - T20-06000700 - Parsun
T20-06000700
Fits: PARSUN T25/30A
69S-14301-00
Fits:Yamaha E30H/E25B 2-stroke
| REF | CODE | PRODUCT NAME | Fits |
| 1 | GB/T818-M4X10 | SCREW, PAN HEAD M4 X 10 | |
| 2 | GB/T93-4 | SPRING WASHER | |
| 3 | T20-06000702 | PLATE | |
| 4 | T20-06000703 | GASKET | |
| 5 | T20-06000704 | SCREW, AIR ADJUSTING | |
| 6 | T20-06000705 | SPRING, AIR ADJUSTING | |
| 7 | T20-06000706 | BOLT | |
| 8 | T20-06000707 | SPRING, THROTTLE | |
| 9 | GB/T818-M5X10 | SCREW M5X10 |
| 10 | GB/T96-5 | BIG WASHER 5 | |
| 11 | T20-06000708 | ACCELERATOR BAR | |
| 12 | T20-06000710 | WASHER, ACCELERATOR BAR | |
| 13 | T20-06000711 | WRING SPRING, ACCELERATOR BAR | |
| 14 | GB/T818-M4X6 | PAN HEAD SCREW M4 X 6 | |
| 15 | T20-06000720 | SHRAPNEL, AIR CHOKE | |
| 16 | T20-06000713 | TIE-IN | |
| 17 | T20-06000712 | SWING LINK, AIR CHOKE | |
| 18 | T20-06000714 | BUSH, SWING LINK | |
| 19 | GB/T818- M3X6 | SCREW M3X6 |
| 20 | GB/T93-3 | SPRING WASHER 3 | |
| 21 | T20-06000715 | APRON, AIR CHOKE | |
| 22 | T20-06000716 | SLOW JET | |
| 23 | T20-06000717 | RUBBER CAP | |
| 24 | T20-06000718 | MAIN NOZZLE | |
| 25 | T20-06000719 | MAIN JET | |
| 26 | T20-06000721 | NEEDLE VALVE | |
| 27 | T20-06000723 | PIN, FLOAT | |
| 28 | GB/T818-M4X8 | SCREW M4X8 | |
| 29 | T20-06000722 | FLOAT |
| 30 | T20-06000724 | GASKET, OIL CUP | |
| 31 | T20-06000725 | DRAIN SCREW | |
| 32 | T20-06000726 | GASKET | |
| 33 | GB/T818-M4X12 | SCREW M4X12 | |
| 34 | T20-06000727 | OIL CUP | |
| 35 | T20-06000728 | WRING SPRING, WRING LINK | |
| 36 | GB/T879.2-3 | PIN 3X12 | |
| 37 | GB/T896-4 | CIRCLIP 4 | |
| 38 | T20-06000729 | NYLON WASHER | |
| 39 | T20-06000701 | CARBURETOR BODY |
| 40 | T20-06000730 | APRON, ACCELERATOR | |
| 41 | T20-06000731 | O-RING | |
| 42 | T20-06000700 | CARBURETOR ASSY | T20-06000700 / Fits:PARSUN T25/30A / 69S-14301-00 / Fits:Yamaha E30H/E25B 2-stroke |
