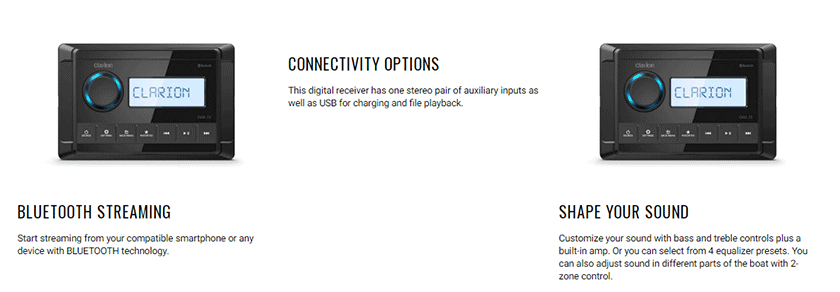

Clarion - Marine CMR-20 - Source Unit with LCD Display - 010-03223-00 - Garmin
- Brand: Garmin
- Product Code: 010-03223-00
- Availability: In Stock
- $300.00
- Ex Tax: $300.00
Clarion - Marine CMR-20 - Source Unit with LCD Display - 010-03223-00 - Garmin:

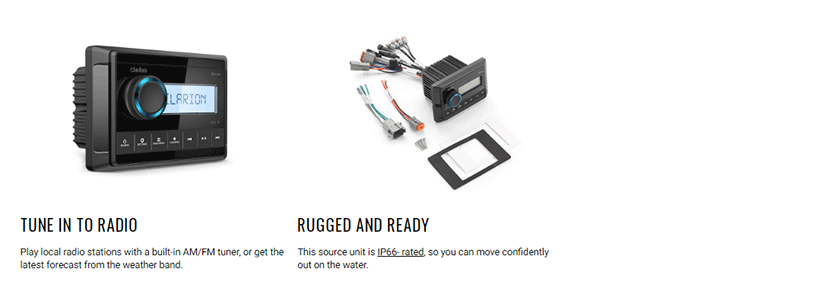

IN THE BOX:
- One marine source unit with trim ring (attached)
- Power and speaker connections wire harness
- One mounting gasket
- One mounting template
- Four mounting screws
| Networking | |
| BLUETOOTH® WIRELESS RANGE | Up to 35 ft (11 meters) |
| Sources | |
| SUPPORTED AUDIO FORMATS (USB) | MP3, WMA, FLAC, WAV |
| SUPPORTED SOURCES | Digital AM/FM/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod |
| Stereo features | |
| BLUETOOTH® WIRELESS TECHNOLOGY | Yes |
| Built-in amplifier | Class AB (4 Ω) |
| DISPLAY TYPE | monochrome, segmented, TFT LCD backlit |
| Multi-language interface | English |
| Multi-Zone™ technology | Yes |
| OPTICALLY BONDED DISPLAY | Yes |
| Software updates | Yes |
| GENERAL | |
| CONTROL SURFACE DUST/WATER RATING (WHEN PROPERLY INSTALLED) | IP66 |
| CURRENT DRAW (MAX) | 15 A |
| Display size | 2.37" (60 mm) |
| Operating temperature range | -4° F to +140° F (-20° C to +60° C) |
| PHYSICAL DIMENSIONS (DEPTH) | 3.15" (80 mm) |
| PHYSICAL DIMENSIONS (HEIGHT) | 3.90" (99 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 5.95" (151 mm) |
| Warranty | 1 year |
| Wireless frequencies/protocols | BLUETOOTH® |
| Audio | |
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD) | 25 W x 4 |
| Connections | |
| AM/FM ports | 1 |
| speaker connections | 4 (2 zones amplified) |
| USB 2.0 PORTS | 1 USB storage device (1 A charging output) |
| Electrical | |
| Power input | 10 -16 VDC |
| Connectivity | |
| Line out | 2 (L + R per zone) |
| RCA pre-out (left, right and subwoofer) | 2 zones (L+R) or Zone 2 as subwoofer |
| Subwoofer out | Occupies Zone 2 |
Tags: Stereo, Audio Systems, Marine entertainment, Bluetooth, NMEA, remote
