Electric Standard Luxury Toilet- Ocean Technologies
> The well proven and popular electric standard toilets with combined pump unit for flushing and wasting .
> All metal parts
and screws are in stainless steel.
> The base is in impact resistant material It can be installed either above or below the
sea level.
> A special macerator pump allows the expulsion up to 3.50 m in height.
> Self priming up to 1,5 mt. vertically.
> Equipped with seat lid and control panel.
> Port connections: inlet. 19mm. 3/4” and outlet 25/38mm. 1” & 1” 1/2
> Available in 12 and 24V.
> Weight: 12 Kilo
PART. N.
| BOWL TYPE
| VOLT
| AMP
| SEAT TYPE
| SOFT CLOSE
| CONVERSION KIT

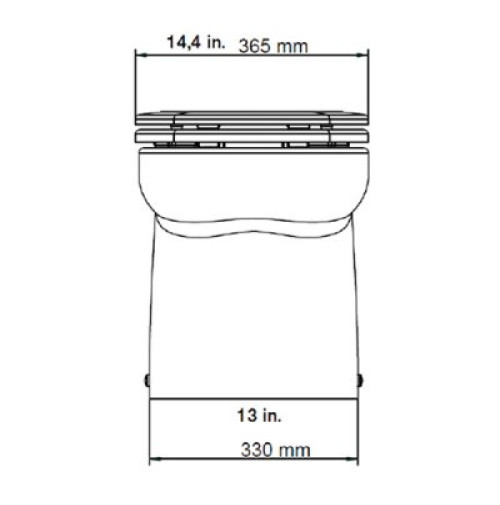

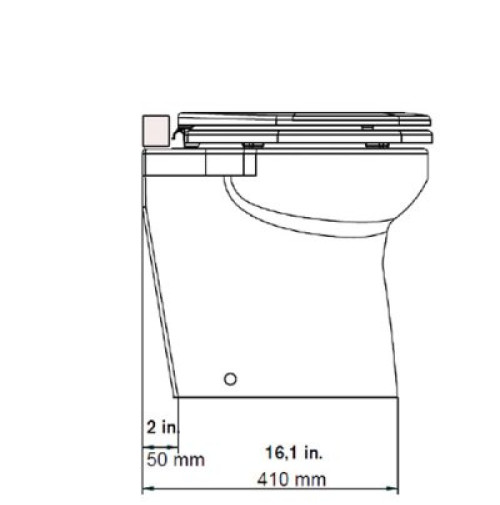

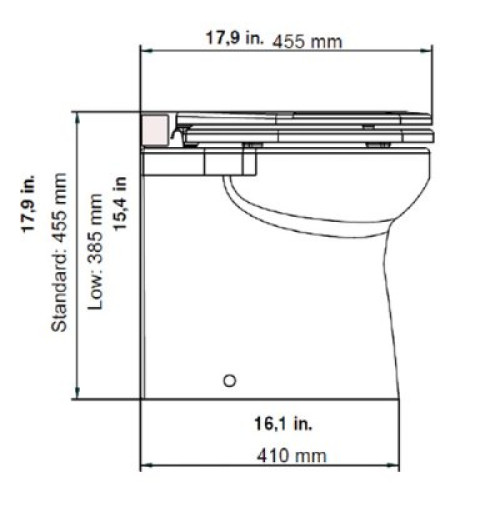

| DIMENSION IN MM. (width,depth,high) Open=height with seat open
| Weight
|
6500002412
| LUXURY LOW
| 12 | 30 | 6500000007
| YES
| 5500003812
| 365X455X385(790)OPEN
| 20 |
6500002424
| LUXURY LOW
| 24 | 15 | 6500000007
| YES
| 5500003824
| 365X455X385(790)OPEN
| 20 |
6500002512
| LUXURY LOW BEVELLED
| 12 | 26 | 6500000007
| YES
| 5500002812
| 365X455X385(790)OPEN
| 21 |
6500002524
| LUXURY LOW BEVELLED
| 24 | 13 | 6500000007
| YES
| 5500002824
| 365X455X385(790)OPEN
| 21 |
6500002612
| LUXURY STD
| 12 | 30 | 6500000007
| YES
| 5500003812
| 365X455X455(860)OPEN
| 22 |
6500002624
| LUXURY STD
| 24 | 16 | 6500000007
| YES
| 5500003824
| 365X455X455(860)OPEN
| 22 |
6500002712
| LUXURY BEVELLED
| 12
| 26 | 6500000007
| YES
| 5600002812
| 365X455X455(860)OPEN
| 22
|
6500002724
| LUXURY BEVELLED
| 24
| 13 | 6500000007
| YES
| 5600002824
| 365X455X455(860)OPEN
| 22
|
|
|
|
|
|
|
|
|
|
