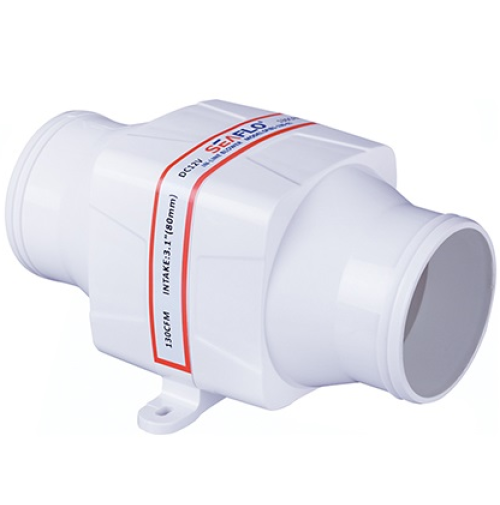

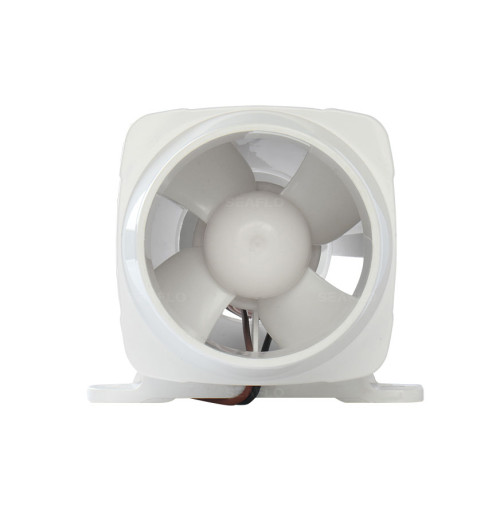

In-Line Blower 01 - CMH 220 :

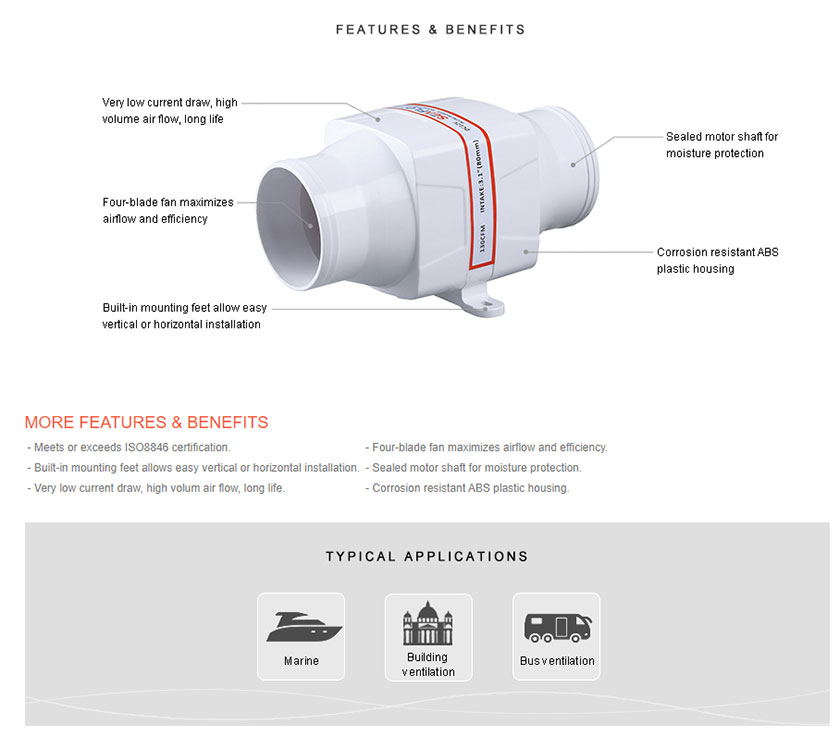

Features & Benefits:
Built-in mounting feet allow easy vertical or horizontal installation
Very low current draw, high volume airflow, long life
Four/Six-blade fan maximizes airflow and efficiency
Sealed motor shaft for moisture protection
Corrosion-resistant ABS plastic housing
Typical Applications:
Boat bilge ventilation
Engine compartments
Galleys and heads
Race cars and helmet ventilation;
Bus ventilation (engine and bathroom fumes)
Tanning booths
Prison van ventilation (cooling, air-freshening)
Blow-up signs and mascots
Building ventilation



Model
| Volts(V)
| Air Flow (cfm/cmh)
| Amp Draw(A)
| Fuse (A)
| Intake Pipe Dia(A)
| Packing Size(mm)
| N.W/G.W (kg)
|
SFIB1-130-01
| 12V
| 130/220
| 2.5A
| 5.0A
| 3"/76
| 215*137*120
| 0.45/0.60 kg
|
SFIB2-130-01
| 24V
| 130/220
| 1.3A
| 36.0A | 3"/76
| 215*137*120
| 0.45/0.60 kg
|
