Gear Pump - 12LPM - GP1-032-003-01X - Seaflo

Gear Pump - 12LPM - GP1-032-003-01X:

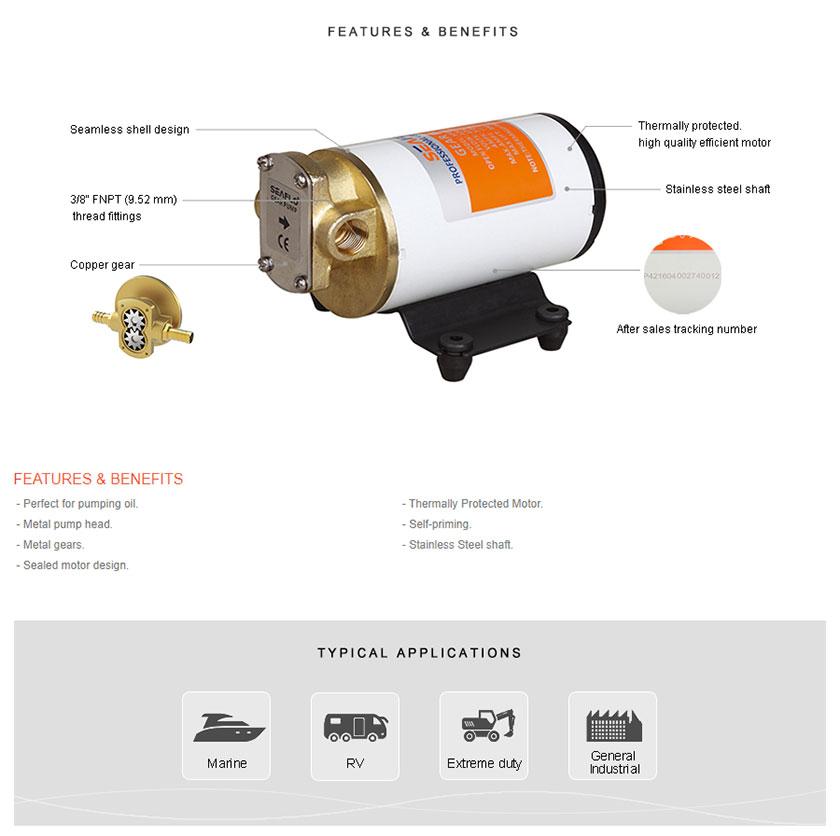

Features & Benefits:

Seamless Shell Design

Thermally Protected Motor

High-Quality Efficient Motor

Self-priming

Stainless Steel Shaft

Typical Applications:

Extreme duty

Transmission fluid

(Diesel, Lubricant and viscous liquids)

Industrial use

PUMP:

Liquid Temperature

140°F (60°C) Max.

Priming Capabilities

Not needed flooded suction

Power

10 amps max current draw

Max Pressure

Not needed

Inlet/Outlet Ports

3/8" FNPT (9.52 mm)

thread fitting

Weight

5.46 lbs (2.48 kg)

MOTOR:

Type

High-quality seamless design that is thermally protected

Leads

Wire leads

Temperature Limits

140°F (60°C) Max.

Duty Cycle

Intermittent

Voltage

12v/24v
