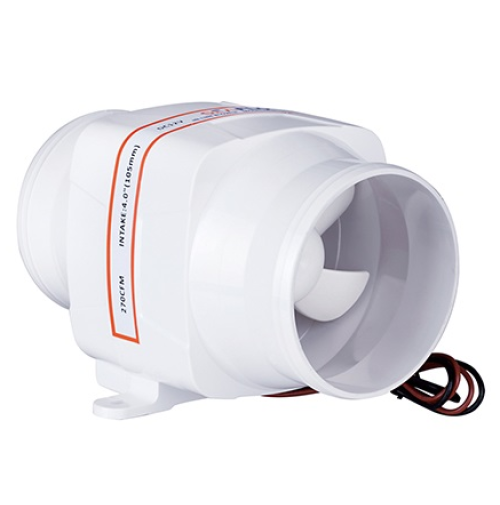

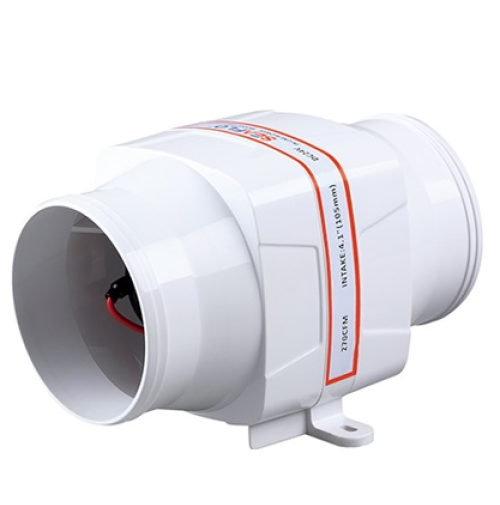

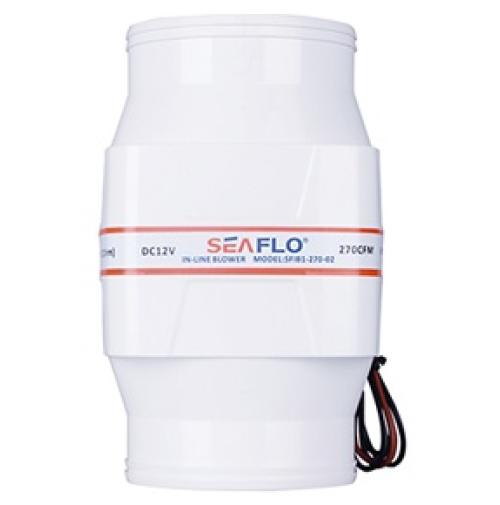

In-Line Blower 02 - CMH 456:

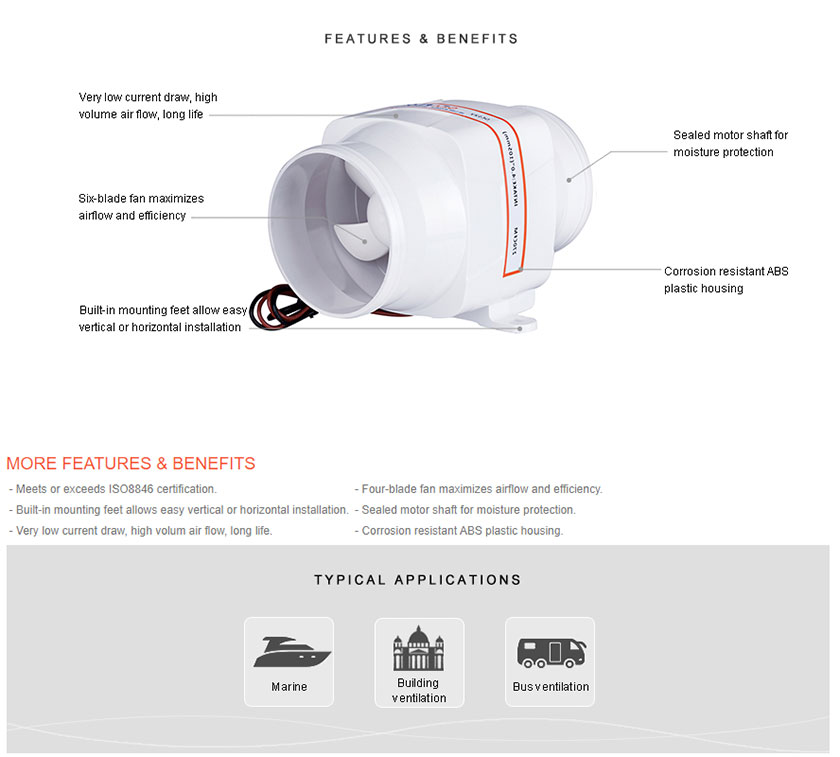

Features & Benefits:
Built-in mounting feet allow easy vertical or horizontal installation
Very low current draw, high volume airflow, long life
Four/Six-blade fan maximizes airflow and efficiency
Sealed motor shaft for moisture protection
Corrosion-resistant ABS plastic housing

Typical Applications:
Boat bilge ventilation
Engine compartments
Galleys and heads
Race cars and helmet ventilation;
Bus ventilation (engine and bathroom fumes)
Tanning booths
Prison van ventilation (cooling, air-freshening)
Blow-up signs and mascots
Building ventilation

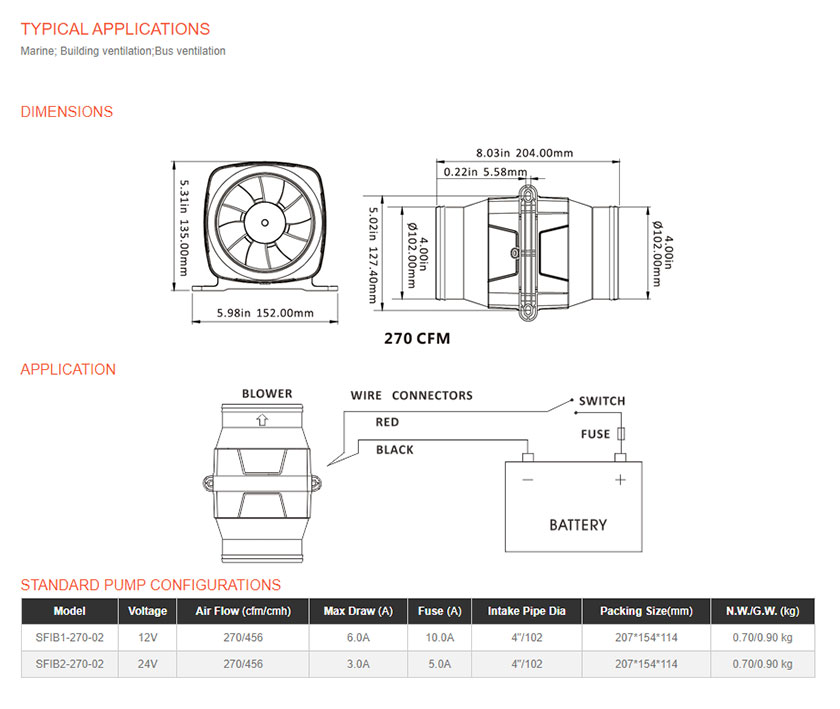

Model
| Volts(V)
| Air Flow (cfm/cmh)
| Amp Draw(A)
| Fuse (A) | Intake Pipe Dia(A)
| Packing Size(mm)
| N.W/G.W (kg)
|
SFIB1-270-02
| 12V
| 270/456
| 6.0A
| 10.0A
| 4"/102
| 207*154*114
| 0.70/0.90 kg
|
SFIB2-270-02
| 24V
| 270/456
| 3.0A
| 5.0A
| 4"/102
| 207*154*114
| 0.70/0.90 kg
|
