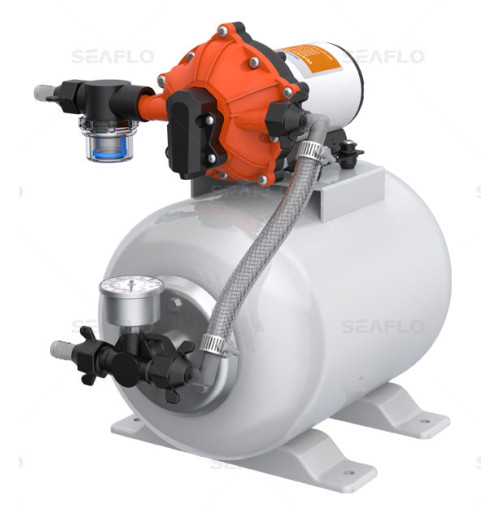

Pump Accumulator Pressure Boost System - 8 L - 24 V - 15.0 LPM - 40 PSI - SFWSK2-040-060-021:
A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer.

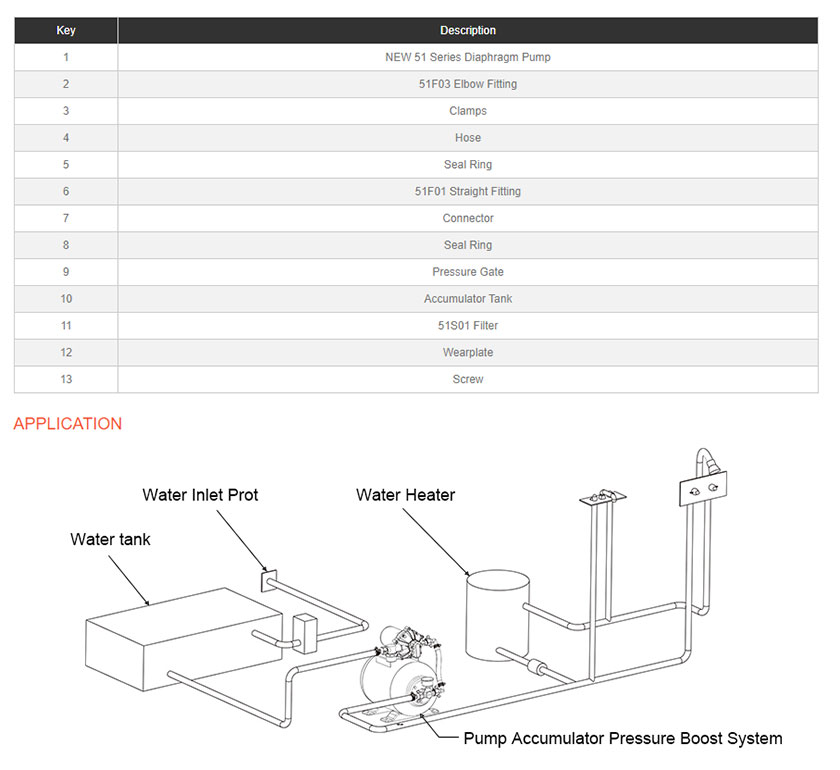

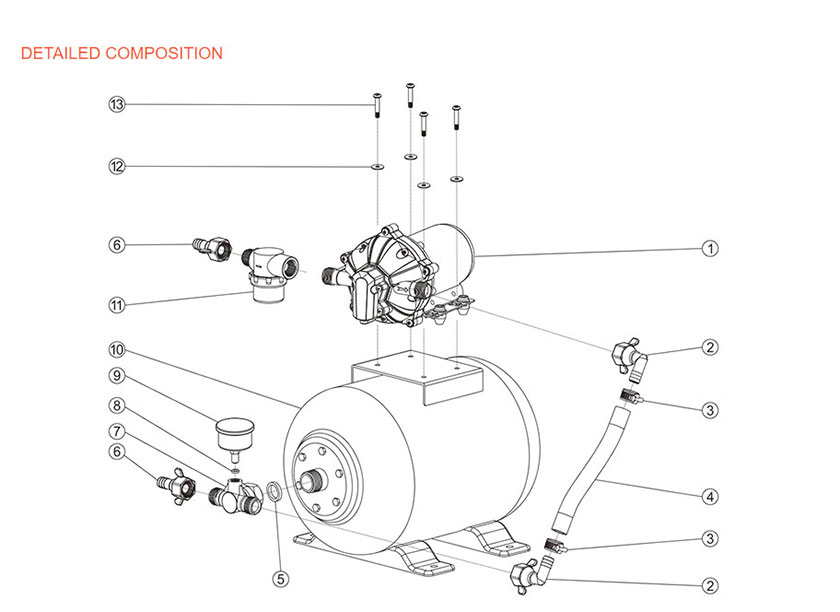

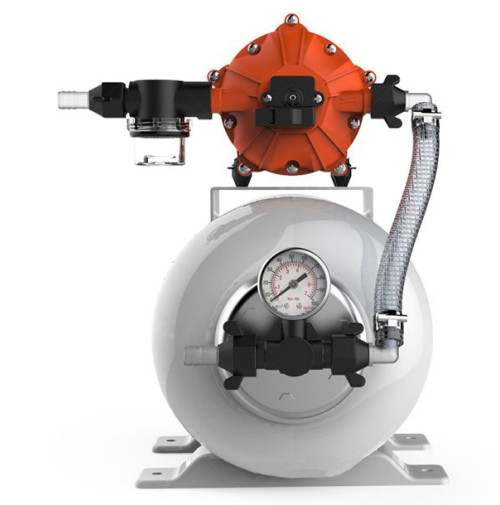

The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber-mounted board.
Serves 3 or more 1/2" (13mm) outlets.

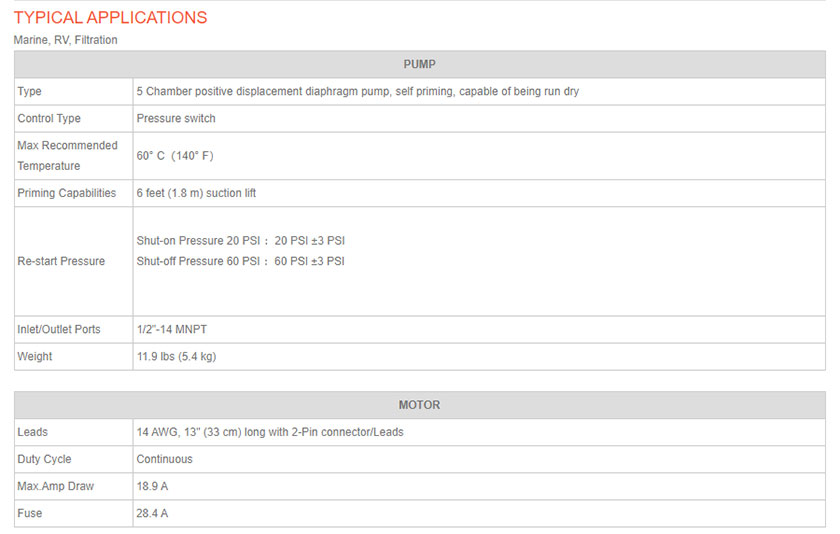

PUMP |

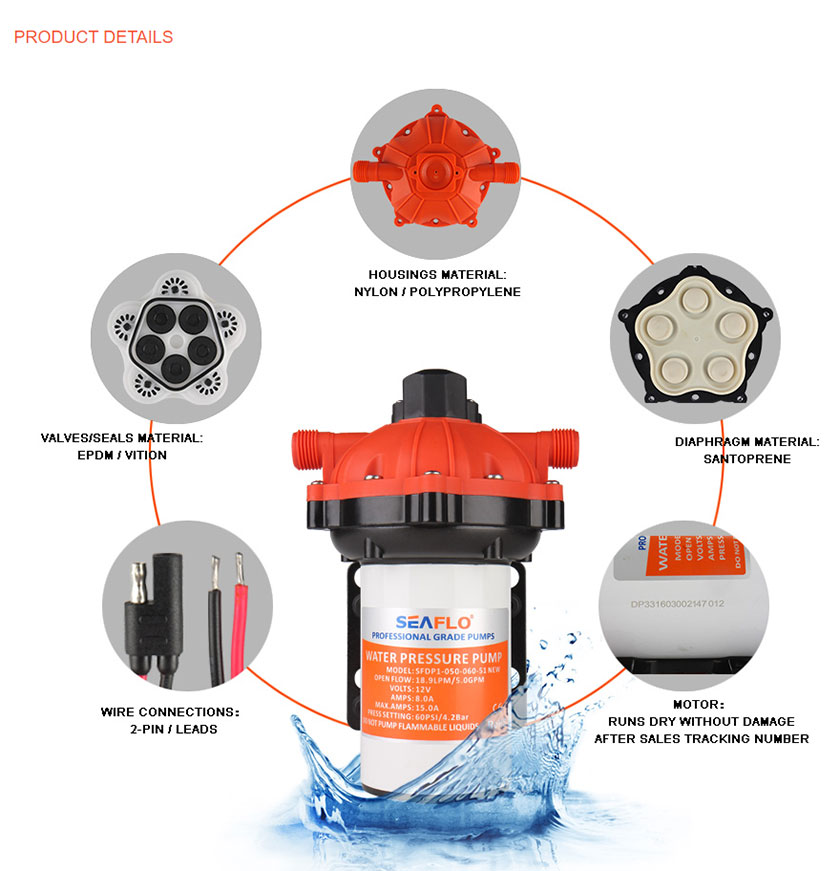

Type | 5 Chamber positive displacement diaphragm pump, self-priming, capable of being run dry |
Control Type | Pressure switch |
Max Recommended Temperature | 60° C(140° F) |
Priming Capabilities | 6 feet (1.8 m) suction lift |
Re-start Pressure | Shut-off Pressure 60 PSI:48 PSI ±5 PSI (±0.3 bar) |
Inlet/Outlet Ports | 1/2"-14 MNPT |
Weight | 11.9 lbs (5.4 kg) |
MOTOR |
Leads | 14 AWG, 13" (33cm) long with 2-Pin connector/Leads |
Duty Cycle | Continuous |
Max.Amp Draw | 18.9 A |
Fuse | 28.4 A |

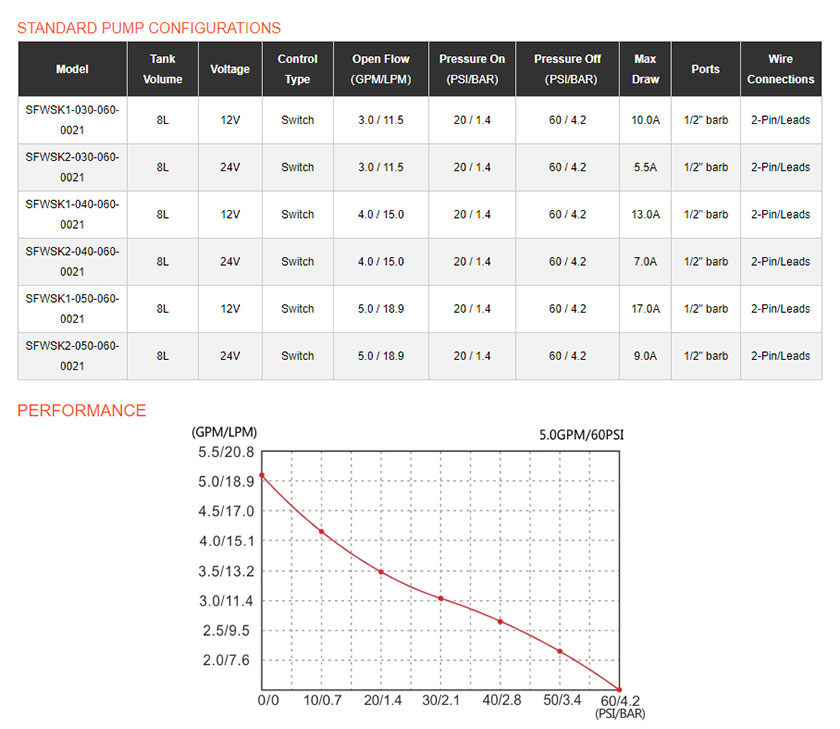

Model
| Tank Volume
| Voltage
| Control Type
| Open Flow (GPM/LPM)
| Pressure On (PSI/BAR)
| Pressure Off (PSI/BAR)
| Max Draw
| Ports
| Wire Connections
|
SFWSK2-040-060-021
| 8L | 24 V | Switch | 4.0/15.0 | 40/2.8 | 60/4.2 | 7 A | 1/2" barb
| 2-Pin/Leads
|
