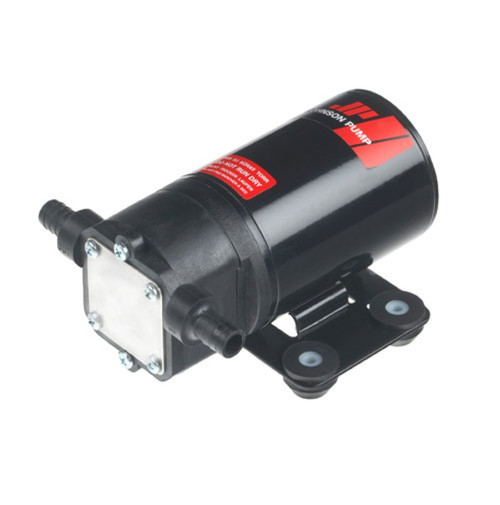

With their high level of flexibility, the DC driven pumps from Johnson Pump can be used for a variety of different applications and are ideal as deck wash pumps.
Not to be used for pumping paraffin or other thin petroleum products.
They can be combined with a vacuum switch when used as bilge pumps and with a pressure switch for deck wash applications.
Item No. | Description | Body | Impeller | Seal | Connection | Length | Width | Height | Weight |
10-24180-1 | F2P10-19, 12V | PTMT | 09-1077B-9 | Lip Seal | 1/2" Hose | 172mm - 6.8" | 117mm - 4.6" | 78mm | 1.6kg - 3.5lbs |
10-24180-2 | F2P10-19, 24V
| PTMT
| 09-1077B-9
| Lip Seal
| 1/2" Hose
| 172mm - 6.8"
| 117mm - 4.6"
| 78mm | 1.6kg - 3.5lbs |
|
|
|
|
|
|
|
|
|
|
Technical Features:
• Oil-resistant impeller
• Self-priming
• Easy maintenance
• Handle debris (bilge pumping)
Design features:
* Pump: F2P10-19
* Part no:
- 10-24180-1 For 12 V
- 10-24180-2 For 24 V
* Motor: 12V or 24V
* Body: PTMT
* Impeller: 09-1077B-9
* Seal: Lip seal
* Connection: 1/2” hose
* Lenght (mm): 172
* Width (mm): 117
* Height (mm): 78
* Weight (kg): 1.6
