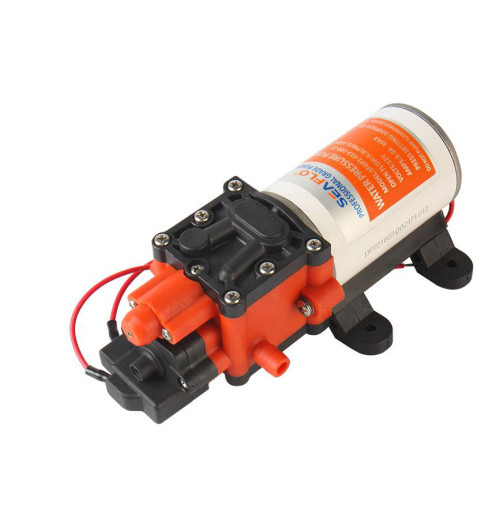

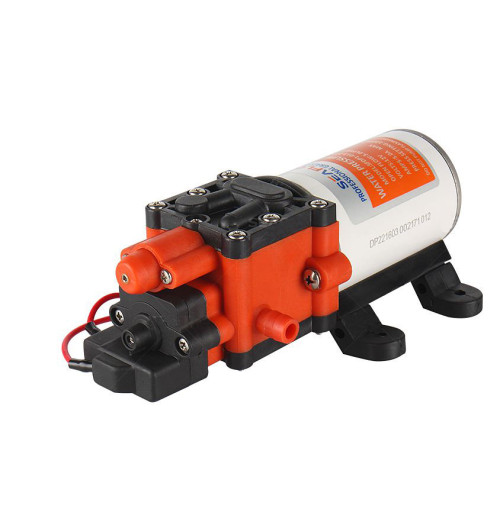

DC Diaphragm Pump - 80 PSI - 5.1 LPM - 12V/24V - SFDP1-014-080-22X:
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration, and dispensing.

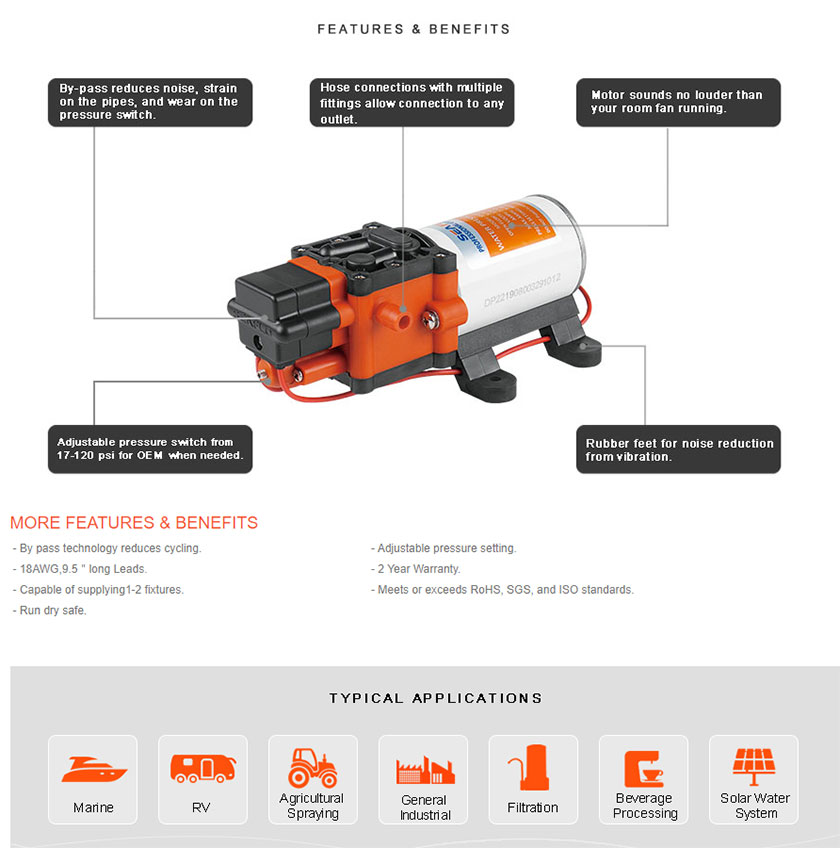

The 22-series of diaphragm pumps are self-priming, can be run dry without harm, and have an internal bypass feature that reduces pump cycling.
It provides up to 1.4 gallons per minute.
Miniature multi-outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time.
This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.

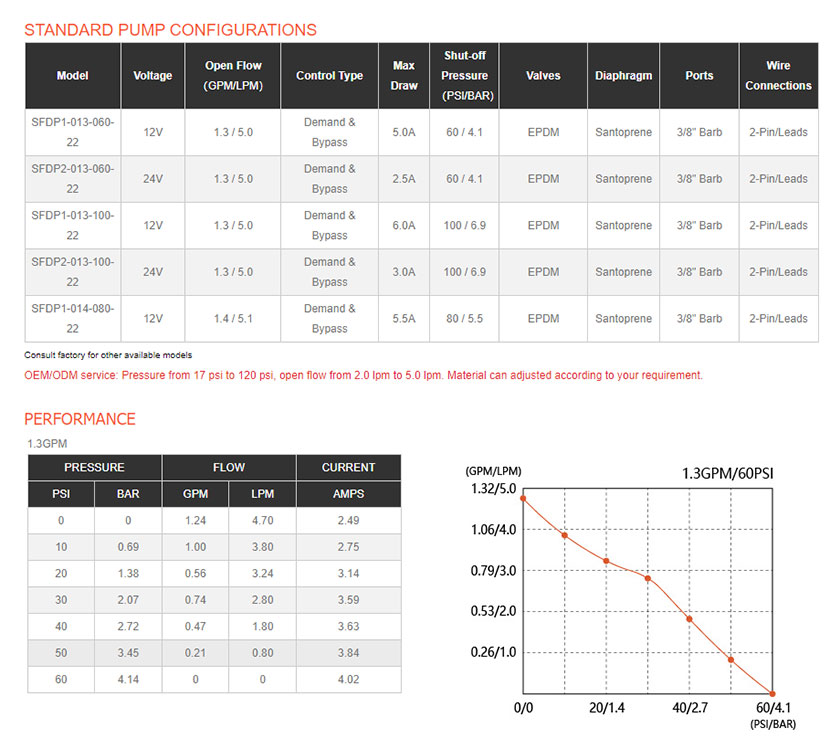

Model
| Voltage
| Open Flow (GPM/LPM)
| Control Type
| Max Draw
| Shut-off Pressure (PSI/BAR)
| Valves
| Diaphragm
| Ports
| Wire Connections
|
SFDP1-014-080-22
| 12 V
| 1.4 / 5.1
| Demand & Bypass
| 5.5 A
| 80 / 5.5
| EPDM
| Santoprene
| 3/8" Barb
| 2-Pin/Leads
|
| 24 V | 1.4 / 5.1
| Demand & Bypass
| 3 A
| 80 / 5.5
| EPDM
| Santoprene
| 3/8" Barb
| 2-Pin/Leads
|
