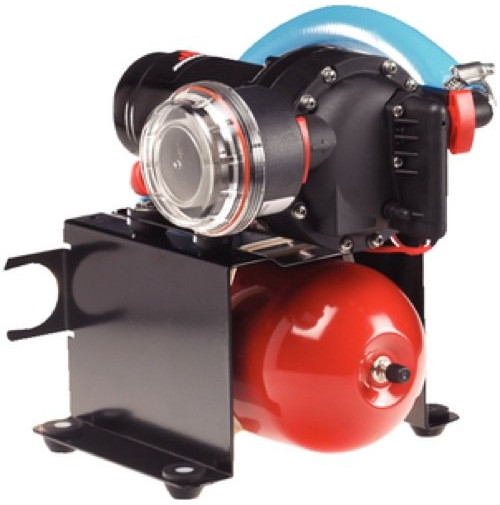

Aqua Jet WPS Uno 5.2, 20 L/min, - PP10-13408-03X:
This new medium demand unit from Johnson Pump consists of an Aqua Jet WPS five-chamber diaphragm pump integrated with a pre-pressurised 5 liters accumulator tank and inline strainer.
The unit's design allows for either vertical or horizontal installation.
Item Number | Descriptions | Capacity | Pressure Cut Off | Fuse Size | Connection |
10-13408-03 | WPSUno 5.2, 12V | 20 L/min - 5.2 GPM | 2.8 bar - 41 psi | 15A | 3/4" Hose
|
10-13408-04 | WPSUno 5.2, 24V
| 20 L/min - 5.2 GPM
| 2.8 bar - 41 psi
| 8A | 3/4" Hose |
Technical Features:
• Whisper quiet operation
• Five-chamber construction
• Smooth flowing
• Self-priming
• Easy, low cost maintenance
• Quick-connect hose
• Integrated pressure switch
• Long service life
Design features:
- Pump body: Polypropylene
- Valve housing: Polypropylene
- Valves: Santoprene
- Connection: 3/8" BSP or 1/2" hose (ø 13 mm) 1/2" BSP or 3/4" hose (ø 18 mm)
- Accumulator tank: Corrosion protected tank with internal rubber bladder
- Tank Capacity – 2 liters
- Precharge pressure – 2.8 bar Air valve – standard tire valve
- 20 liter per minutes.
