DC Diaphragm Pump - 35 Series - 12V/24V - 2.0-8.0 LPM - 17-160 PSI - 1.5 GPM - SFDP1-015-080-35X - Seaflo
- Brand: Seaflo
- Product Code: SFDP1-015-080-35X
- Availability: In Stock
- $99.10
- Ex Tax: $99.10
DC Diaphragm Pump - 35 Series - 12V/24V - 2.0-8.0 LPM - 17-160 PSI - 1.5 GPM - SFDP1-015-080-35X:

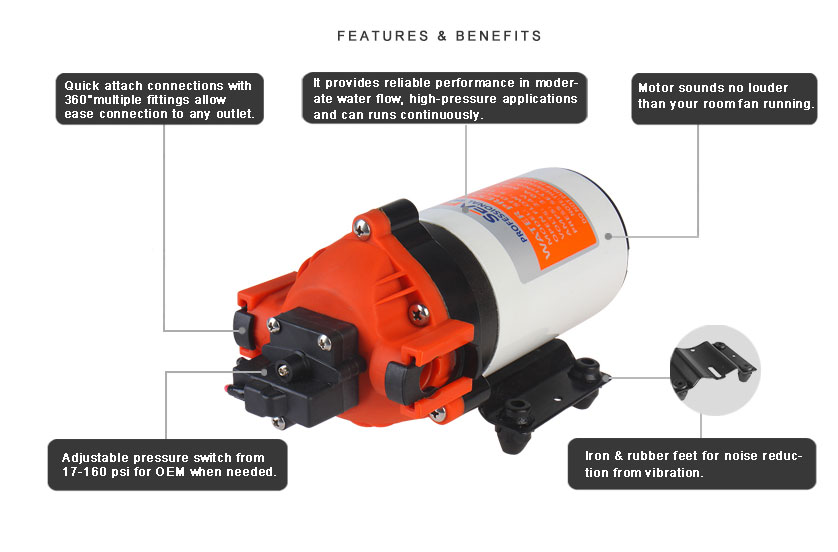

The 35-Series is our continuous-duty on-demand positive displacement pump.
Quick-Attach fittings allow for easy installation or replacement.
It provides reliable performance in moderate water flow, high-pressure applications.
This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage.
Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time.
This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed.
They are easy to install, service and winterize.
| ||||||||||||||||
| ||||||||||
PERFORMANCE: |
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | APMS |
0 | 0 | 1.33 | 5.05 | 2.91 |
10 | 0.69 | 1.33 | 5.05 | 3.51 |
20 | 1.38 | 1.29 | 4.90 | 4.19 |
30 | 2.07 | 1.24 | 4.70 | 4.82 |
40 | 2.76 | 1.20 | 4.55 | 5.38 |
50 | 3.45 | 1.12 | 4.25 | 6.04 |
60 | 4.14 | 1.03 | 3.90 | 6.33 |
70 | 4.83 | 0.98 | 3.70 | 6.75 |
| 80 | 5.52 | 0.90 | 3.45 | 7.26 |
| Model | Voltage | Open Flow (GPM/LPM) | Control Type | Max Draw | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections | |
| 12V | 1.5 / 5.5 | Switch | 8.0 | 80 / 5.5 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads | |
| 24V | 1.5 / 5.5 | Switch | 4.5 | 80 / 5.5 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
Tags: Pump, Diaphragm, Maintenance, Perfect,
