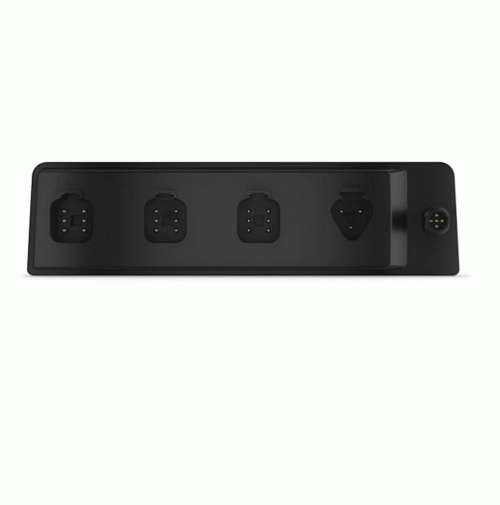

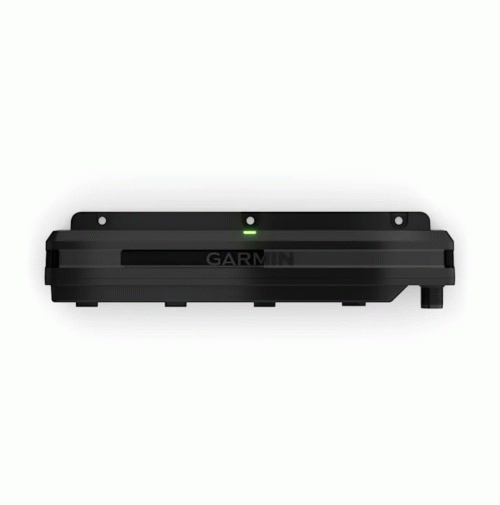

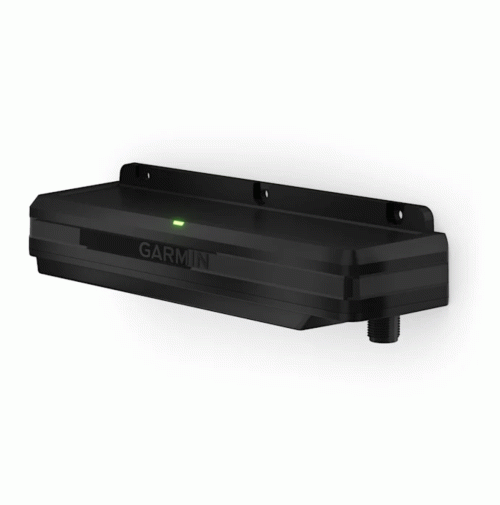

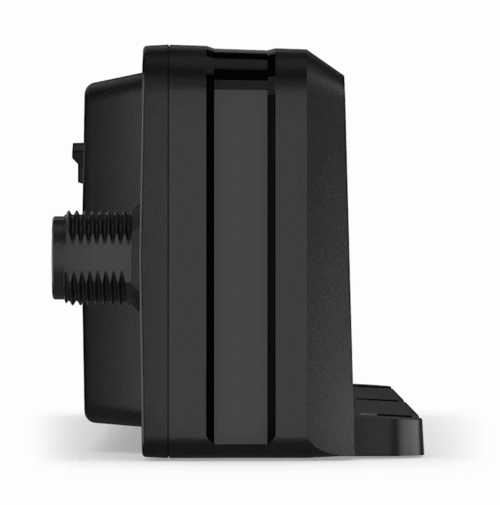

Garmin Spectra, LC302 LED Control Module - 010-02830-00 - Garmin
- Brand: Fusion Electronics
- Product Code: 010-02830-00
- Availability: In Stock
- $328.83
- Ex Tax: $328.83
Garmin Spectra, LC302 LED Control Module - 010-02830-00 - Garmin
In The Box:
Garmin Spectra LC302 or LC102 (depending on the version selected)
Power flying lead with water-resistant three-way connector
Three (LC302) or one (LC102) LED flying leads with water-resistant six-way connectors (depending on the version selected)
Tee connector for the NMEA 2000® network
Backbone/drop cable (0.3 m) for the NMEA 2000® network
Mounting screws
Documentation
| Lighting Features | |
| CONTROL VIA | Fusion Apollo™ Stereo |
| LED CONNECTION TYPES | RGB, RGBW, CRGBW, single channel |
| LIGHTING MODES | Colour pick, audio sync (colour blend/audio spectrum), effects |
| PREMIUM CONTROL AND SETUP VIA | MFD or ActiveCaptain® app |
| GENERAL | |
| CABLE CONSTRUCTION | Multistrand tinned copper with white PVC outer jacket |
| Compass-safe distance | 20 cm (7.87″) |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| UNIT DIMENSIONS (WXHXD) | 197 x 52 x 47 mm LC302: (7.76″ x 2.05″ x 1.85″) 113 x 52 x 47 mm LC102: (4.45″ x 2.05″ x 1.85″) |
| Warranty | 2 years |
| Water rating | IP66/IP67 |
| WEIGHT | LC302: 158 g (5.57 oz) LC102: 83 g (2.93 oz) |
| Electrical | |
| INPUT CURRENT (MAX) | LC302: 6 A LC102: 2 A |
| INPUT VOLTAGE | 10.8 to 16 V (12 V system) 21.6 to 32 V (24 V system) |
| NMEA 2000® LEN | 2 (≤ 70 mA) |
| OUTPUT CURRENT (MAX) | 2 A (per output connector) |
| OVER CURRENT PROTECTION | Yes |
| OVER VOLTAGE PROTECTION | Yes |
