Trim Gauge - Model - CPIR - 160~10Ω - SS 316:
♦ Provides information about the position of the engine in relation to the boat's stern.
It can also give a signal to avoid damage caused to the prop while sailing in shallow water.
To match with mercury or force engine.
♦ Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration
♦ Style (as left pictures,Remark:SS=stainless steel): SS & black(BS),black SS & black(BN),SS & White (WS),balck plastic&black(BB), white plastic & white(WW)
♦ Bezel Material: 316 Stainless Steel or plastic,cured glass
♦ Installation Dimension: Φ52mm(2”)
♦ Installation: lock the gauge to baseboard directly by hand
♦ Connector: multi-plugs socket connection
♦ Background light: Red or Yellow
♦ Indicating Range: UP - DOWN & DOWN - UP
♦ Working Voltage: 12/24V
♦ Signal: 0~190Ω
♦ Protection grade: IP7;can work up to 1m under water
Code
| Model
| Signal
| Bezel
| Display Range
| Working Voltage
| Installation Dimension
|
KY09043

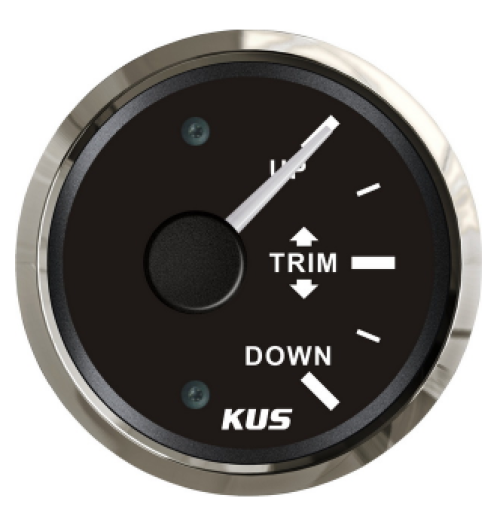

| CPIR-BS-160-10
| 160~10Ω
| SS 316
| UP-DOWN
| 12V/24V
| Φ52mm
|
KY09123

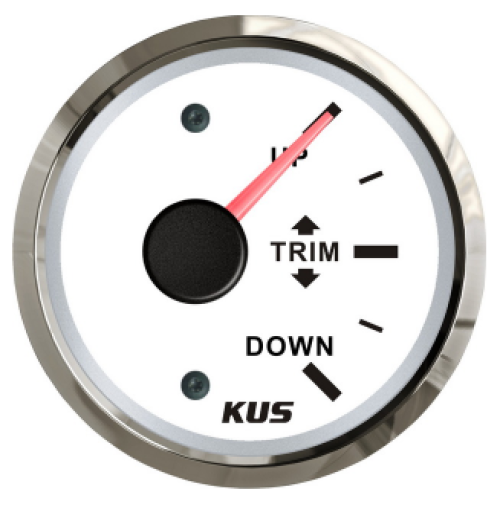

| CPIR-WS-160-10
| 160~10Ω
| SS 316
| UP-DOWN
| 12V/24V
| Φ52mm
|
