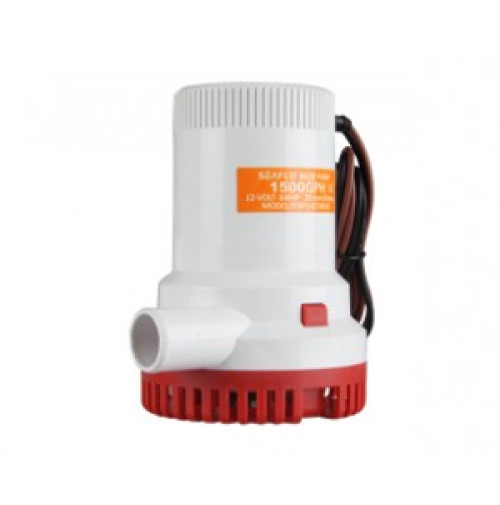

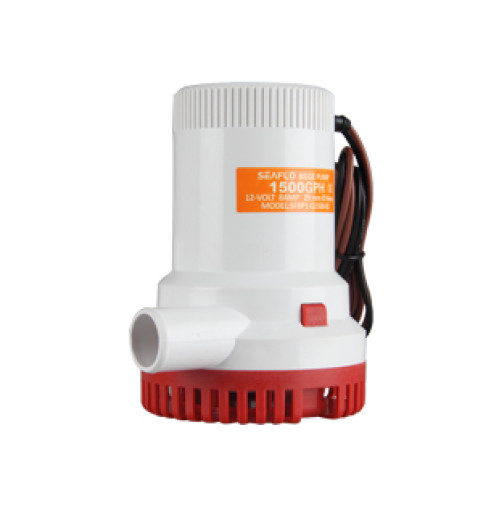

Bilge Pump 1500 GPH - Seaflo
Features & Benefits:
Pump and switch are stand-alone products
Compact, efficient, long-life motors
New mercury-free float switches
Size: 1500 gph in 12 and 24-volt versions
Easy clean snap-lock strainer bases
Anti-Airlock protection
Exclusive moisture tight seals
Completely submersible
Marine-grade blocked wiring
Silent and vibrationless operation

Typical Applications:
Marine
RV & Campers
Industrial

PUMP:
Liquid Temperature: 110°F (43°C) Max.
Priming Capabilities: Not needed flooded suction
Power: 12.0 amps max current draw
Max Pressure: Not needed
MOTOR:
Type: Compact, efficient, long-life motor
Leads: 18 AWG, 1 m long Leads
Temperature Limits: 110°F (43°C) Max.
Duty Cycle: Intermittent
Voltage: 12v/24v



Model
| Flow rate
| Volts
| Current
| Head
| Wire lead
| Outlet Dia
| N.W/G.W
|
SFBP1-G1500-01 | 1500 GPH | 12V | 8.0A | 5m | 1m | 29mm/ 1-1/8" | 1.13 / 1.21kg |
SFBP2-G1500-01 | 1500 GPH | 24V | 4.0A | 5m | 1m | 29mm/ 1-1/8"
| 1.13 / 1.21kg
|
